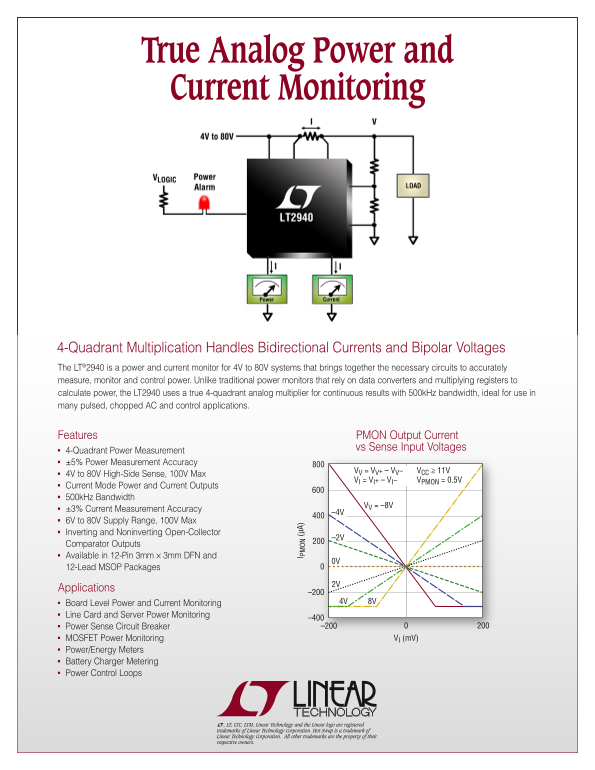

True Analog Power and Current Monitoring
ON (µ A)
4-Quadrant Multiplication Handles Bidirectional Currents and Bipolar Voltages The LT®2940 is a power and current monitor for 4V to 80V systems that brings together the necessary circuits to accurately measure, monitor and control power. Unlike traditional power monitors that rely on data converters and multiplying registers to calculate power, the LT2940 uses a true 4-quadrant analog multiplier for continuous results with 500k Hz bandwidth, ideal for use in many pulsed, chopped AC and control applications.
Features PMON Output Current
n 4-Quadrant Power Measurement vs Sense Input Voltages
n ±5% Power Measurement Accuracy
n 4V to 80V High-Side Sense, 100V Max VV = VV+ – VV– VCC ≥ 11V VI = VI+ – VI– VPMON = 0.5V
n Current Mode Power and Current Outputs
n 500k Hz Bandwidth
n ±3% Current Measurement Accuracy VV = –8V
n 6V to 80V Supply Range, 100V Max
n Inverting and Noninverting Open-Collector
Comparator Outputs n Available in 12-Pin 3mm × 3mm DFN and
12-Lead MSOP Packages
Applications
n Board Level Power and Current Monitoring 8V4V
n Line Card and Server Power Monitoring
n Power Sense Circuit Breaker –200
n MOSFET Power Monitoring VI (m V)
n Power/Energy Meters
n Battery Charger Metering
n Power Control Loops
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear Technology Corporation. Hot Swap is a trademark of Linear Technology Corporation. All other trademarks are the property of their respective owners.
