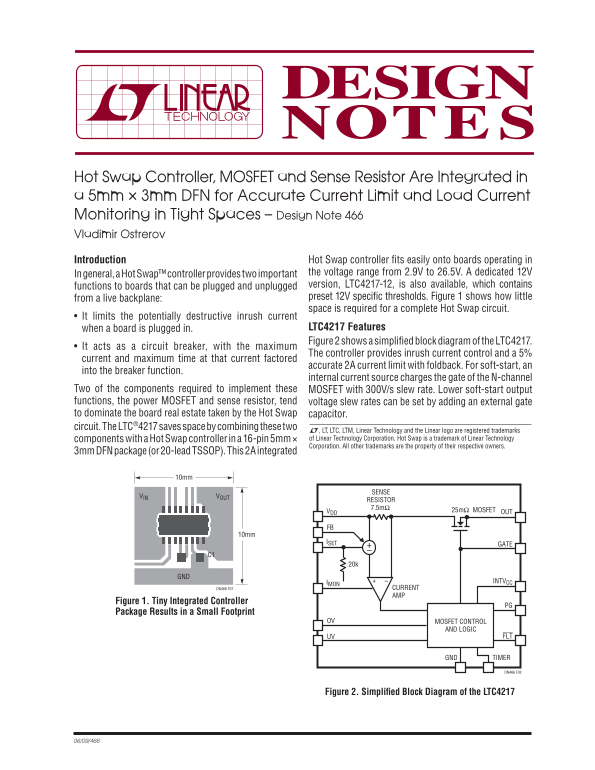

Hot Swap Controller, MOSFET and Sense Resistor Are Integrated in a 5mm × 3mm DFN for Accurate Current Limit and Load Current Monitoring in Tight Spaces – Design Note 466 Vladimir Ostrerov Introduction Hot Swap controller fi ts easily onto boards operating in
In general, a Hot Swap™ controller provides two important the voltage range from 2.9V to 26.5V. A dedicated 12V functions to boards that can be plugged and unplugged version, LTC4217-12, is also available, which contains from a live backplane: preset 12V specifi c thresholds. Figure 1 shows how little space is required for a complete Hot Swap circuit.
• It limits the potentially destructive inrush current
when a board is plugged in. LTC4217 Features Figure 2 shows a simplifi ed block diagram of the LTC4217.
• It acts as a circuit breaker, with the maximum
The controller provides inrush current control and a 5%
current and maximum time at that current factored
accurate 2A current limit with foldback. For soft-start, an
into the breaker function.
internal current source charges the gate of the N-channel
Two of the components required to implement these MOSFET with 300V/s slew rate. Lower soft-start output functions, the power MOSFET and sense resistor, tend voltage slew rates can be set by adding an external gate to dominate the board real estate taken by the Hot Swap capacitor. circuit. The LTC®4217 saves space by combining these two
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks components with a Hot Swap controller in a 16-pin 5mm × of Linear Technology Corporation. Hot Swap is a trademark of Linear Technology Corporation. All other trademarks are the property of their respective owners.
3mm DFN package (or 20-lead TSSOP). This 2A integrated
SENSE
VIN VOUT
RESISTOR 7.5mΩ
VDD 25mΩ MOSFET OUT
+– GATE
IMON INTVCC
DN466 F01 CURRENT AMP
Figure 1. Tiny Integrated Controller
Package Results in a Small Footprint
OV MOSFET CONTROL
AND LOGIC
UV FLT
GND TIMER
DN466 F02
Figure 2. Simplifi ed Block Diagram of the LTC4217
