EXTECH DL150 True RMS AC Voltage & Current Datalogger User's Manual
Summary
Monitor electrical systems with this True RMS AC Voltage and Current Datalogger. Capable of measuring up to 600V or 200A and logging a massive capacity of 100,000 readings at customizable sampling rates (1 second to 24 hours). The included manual guides you on using features like Normal, Peak, and Capture modes. Ideal for engineers, electricians, and technicians who require highly accurate, downloadable data analysis via USB interface and compatible software.
Page 1 Text Content

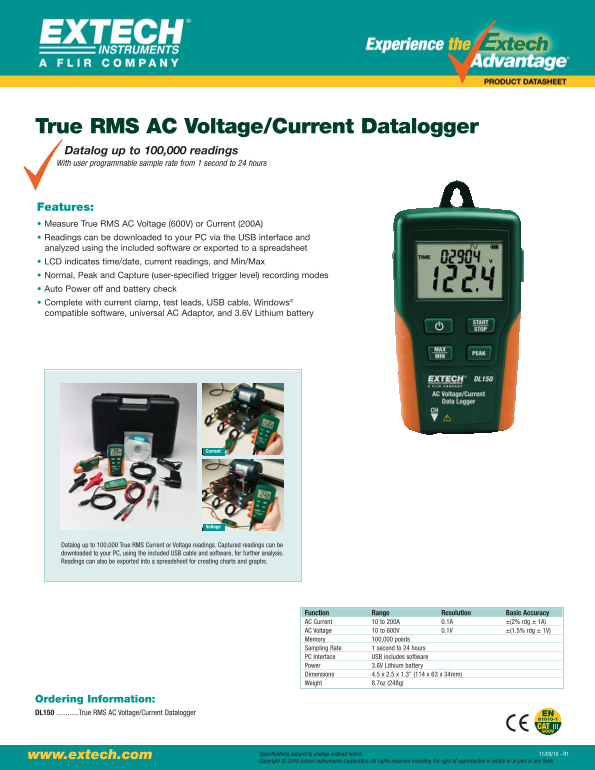

True RMS AC Voltage/Current Datalogger Datalog up to 100,000 readings With user programmable sample rate from 1 second to 24 hours
Features: Measure True RMS AC Voltage (600V) or Current (200A) Readings can be downloaded to your PC via the USB interface and analyzed using the included software or exported to a spreadsheet LCD indicates time/date, current readings, and Min/Max Normal, Peak and Capture (user-specified trigger level) recording modes Auto Power off and battery check Complete with current clamp, test leads, USB cable, Windows® compatible software, universal AC Adaptor, and 3.6V Lithium battery
Current
Voltage
Datalog up to 100,000 True RMS Current or Voltage readings. Captured readings can be downloaded to your PC, using the included USB cable and software, for further analysis. Readings can also be exported into a spreadsheet for creating charts and graphs.
Function Range Resolution Basic Accuracy AC Current 10 to 200A 0.1A ±(2% rdg ± 1A) AC Voltage 10 to 600V 0.1V ±(1.5% rdg ± 1V) Memory 100,000 points Sampling Rate 1 second to 24 hours PC Interface USB includes software Power 3.6V Lithium battery Dimensions 4.5 x 2.5 x 1.3" (114 x 63 x 34mm) Weight 8.7oz (248g)
Ordering Information: DL150 ............True RMS AC Voltage/Current Datalogger
www.extech.com Specifications subject to change without notice. 11/03/10 - R1 Copyright © 2009 Extech Instruments Corporation. All rights reserved including the right of reproduction in whole or in part in any form.
