EXTECH Non-Contact AC Voltage and Current Detector DVA30 User Guide and Manual
Summary
Advanced non-contact AC voltage and current detector engineered for electrical professionals. This versatile two-in-one tool helps trace concealed "hot" wires in conduits, walls, and fixtures. Capable of sensing voltage from 12V up to 600VAC and measuring high currents (up to 1000A), it provides critical visibility where standard detection fails. The accompanying documentation details setup, extended range testing, sensitivity adjustments, and multiple non-contact applications for reliable electrical troubleshooting and safety checking.

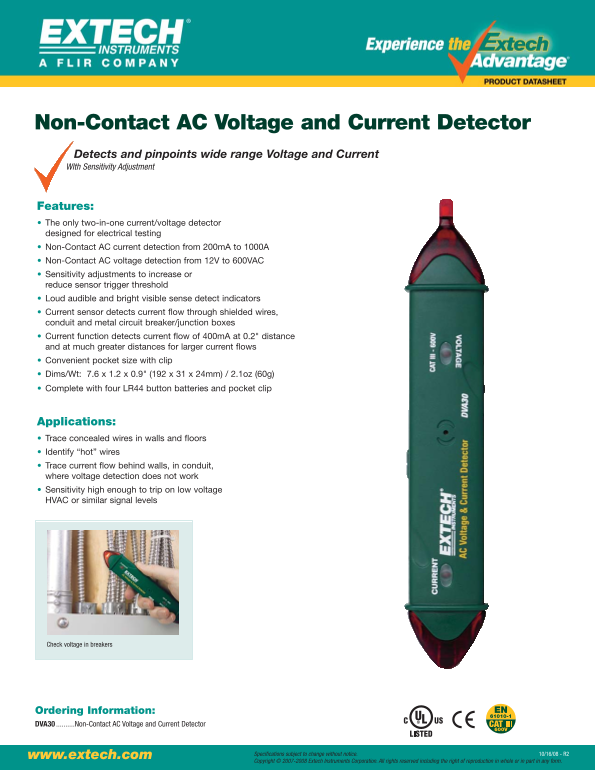

Page 1 Text Content
Non-Contact AC Voltage and Current Detector Detects and pinpoints wide range Voltage and Current WIth Sensitivity Adjustment
Features: The only two-in-one current/voltage detector designed for electrical testing Non-Contact AC current detection from 200m A to 1000A Non-Contact AC voltage detection from 12V to 600VAC Sensitivity adjustments to increase or reduce sensor trigger threshold Loud audible and bright visible sense detect indicators Current sensor detects current flow through shielded wires, conduit and metal circuit breaker/junction boxes Current function detects current flow of 400m A at 0.2" distance and at much greater distances for larger current flows Convenient pocket size with clip Dims/Wt: 7.6 x 1.2 x 0.9" (192 x 31 x 24mm) / 2.1oz (60g) Complete with four LR44 button batteries and pocket clip
Applications: Trace concealed wires in walls and floors Identify “hot” wires Trace current flow behind walls, in conduit, where voltage detection does not work Sensitivity high enough to trip on low voltage HVAC or similar signal levels
Check voltage in breakers
Ordering Information: DVA30 ..........Non-Contact AC Voltage and Current Detector
www.extech.com Specifications subject to change without notice. 10/16/08 - R2 Copyright © 2007-2008 Extech Instruments Corporation. All rights reserved including the right of reproduction in whole or in part in any form.
Page Summary Contents For EXTECH Non-Contact AC Voltage and Current Detector DVA30 User Guide and Manual
Manual Details
| Brand | Current |
|---|---|
| Pages | 1 |
| File Size | 162.67 KB |
| Published | May 28, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the usable range for both voltage and current detection?
Voltage ranges from 12V to 600VAC, and current detects flow from 200mA to 1000A.
Can this device detect hidden wires or trace current through conduits?
Yes, it can trace concealed wires in walls/floors and detects current flow behind walls or in conduit.
Does the detector require physical contact with the circuit?
No, it is a non-contact AC voltage and current detector. It also detects current through shielded wires and junctions.
What special features are available for accurate reading?
It includes sensitivity adjustments to control the sensor's trigger threshold, an audible alarm, and a visible indicator.
