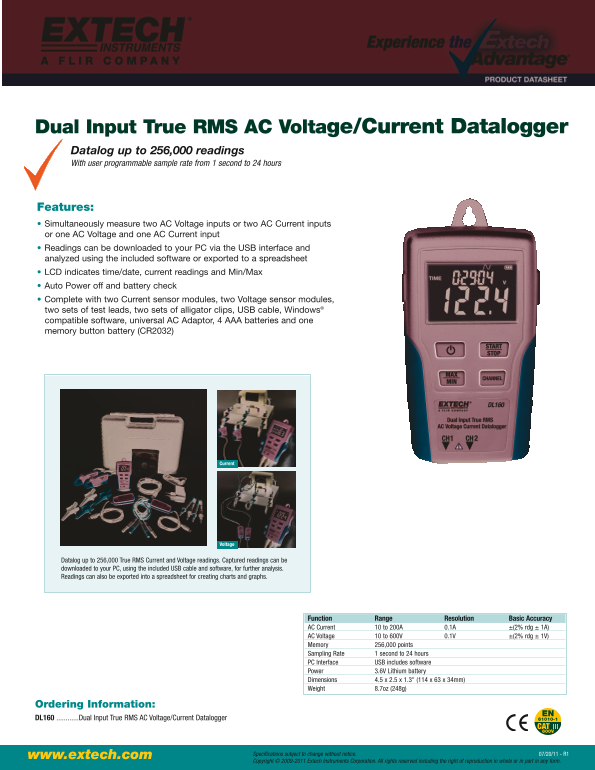

Dual Input True RMS AC Voltage/Current Datalogger Datalog up to 256,000 readings With user programmable sample rate from second to hours
Features: Simultaneously measure two AC Voltage inputs or two AC Current inputs or one AC Voltage and one AC Current input Readings can be downloaded to your PC via the USB interface and analyzed using the included software or exported to spreadsheet LCD indicates time/date, current readings and Min/Max Auto Power off and battery check Complete with two Current sensor modules, two Voltage sensor modules, two sets of test leads, two sets of alligator clips, USB cable, Windows® compatible software, universal AC Adaptor, AAA batteries and one memory button battery (CR2032)
Current
Voltage
Datalog up to 256,000 True RMS Current and Voltage readings. Captured readings can be downloaded to your PC, using the included USB cable and software, for further analysis. Readings can also be exported into spreadsheet for creating charts and graphs.
Function Range Resolution Basic Accuracy AC Current to 200A 0.1A ±(2% rdg 1A) AC Voltage to 600V 0.1V ±(2% rdg 1V) Memory 256,000 points Sampling Rate second to hours PC Interface USB includes software Power 3.6V Lithium battery Dimensions 4.5 2.5 1.3" (114 34mm) Weight 8.7oz (248g)
Ordering Information: DL160 ............Dual Input True RMS AC Voltage/Current Datalogger
www.extech.com Specifications subject to change without notice. 07/20/11 R1 Copyright 2009-2011 Extech Instruments Corporation. All rights reserved including the of reproduction in whole or in part in any form.
