EXTECH INSTRUMENTS DVA30 AC Voltage and Current Detector User's Guide
Summary
This professional non-contact detector is an essential tool for electricians and DIY enthusiasts needing safe, accurate identification of household wiring. It features advanced technology to detect both AC voltage and electrical current flow without physical contact—allowing users to locate hidden "hot" wires behind walls or within conduit. The accompanying manual provides comprehensive guidance on proper operation, safety precautions, sensitivity adjustment for precise tracing, and detailed specifications, ensuring you can perform complex circuit diagnostics with maximum efficiency and safety reassurance.

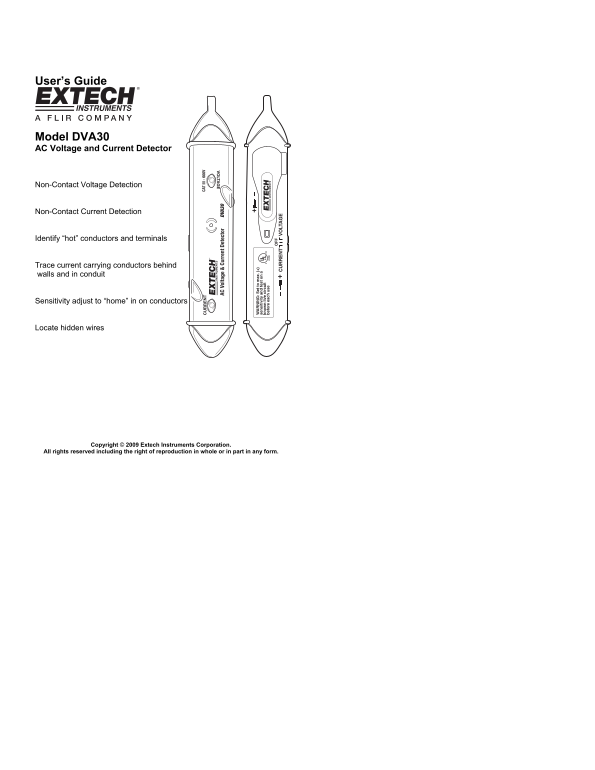

Page 1 Text Content
User’s Guide
Model DVA30 AC Voltage and Current Detector
Non-Contact Voltage Detection
Non-Contact Current Detection
Identify “hot” conductors and terminals
Trace current carrying conductors behind walls and in conduit
Sensitivity adjust to “home” in on conductors
Locate hidden wires
Copyright © 2009 Extech Instruments Corporation.
All rights reserved including the right of reproduction in whole or in part in any form.
Page Summary Contents For EXTECH INSTRUMENTS DVA30 AC Voltage and Current Detector User's Guide
Manual Details
| Brand | Extech Instruments |
|---|---|
| Pages | 4 |
| File Size | 117.03 KB |
| Published | May 19, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What batteries do I use and how many are needed?
The device requires four LR44 batteries or equivalent.
How do I check for AC voltage on a conductor?
Set the switch to Voltage, ensure the LED lights up, then touch the sensor to the hot conductor; it should flash and beep if AC voltage is present.
What are the limits of the voltage detection?
It can detect voltages ranging from 12V to 600VAC.
Is there a minimum requirement for current detection?
Yes, there must be a load on the circuit (current flow) for the current detection function to work.
