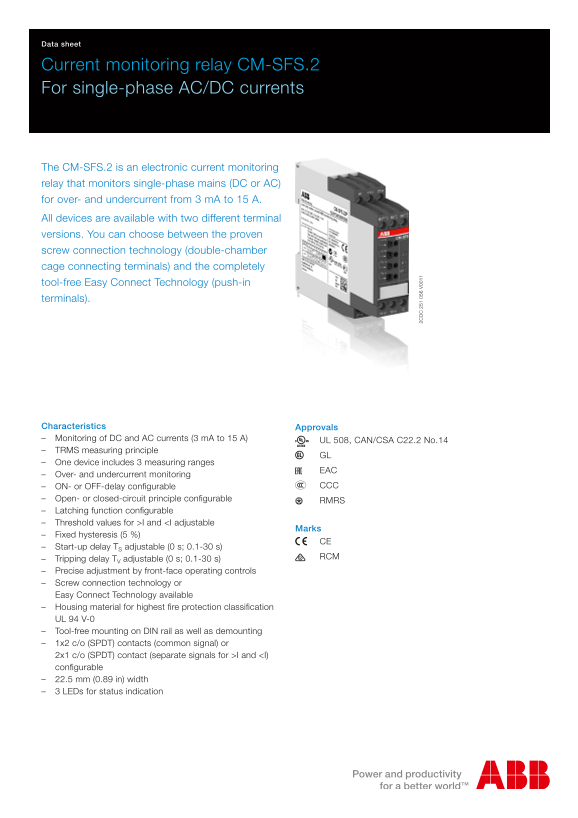

Data sheet
Current monitoring relay CM-SFS.2 For single-phase AC/DC currents
The CM-SFS.2 is an electronic current monitoring relay that monitors single-phase mains (DC or AC) for over- and undercurrent from 3 m A to 15 A. All devices are available with two different terminal versions. You can choose between the proven screw connection technology (double-chamber cage connecting terminals) and the completely tool-free Easy Connect Technology (push-in terminals).
Characteristics Approvals Monitoring of DC and AC currents (3 m A to 15 A) UL 508, CAN/CSA C22.2 No.14 TRMS measuring principle
One device includes 3 measuring ranges
Over- and undercurrent monitoring
ON- or OFF-delay configurable CCC
Open- or closed-circuit principle configurable RMRS Latching function configurable Threshold values for >I and <I adjustable
Marks
Fixed hysteresis (5 %)
Start-up delay TS adjustable (0 s; 0.1-30 s)
Tripping delay TV adjustable (0 s; 0.1-30 s) Precise adjustment by front-face operating controls Screw connection technology or Easy Connect Technology available Housing material for highest fire protection classification UL 94 V-0 Tool-free mounting on DIN rail as well as demounting 1x2 c/o (SPDT) contacts (common signal) or 2x1 c/o (SPDT) contact (separate signals for >I and <I) configurable 22.5 mm (0.89 in) width 3 LEDs for status indication
