Danfoss BD50F Direct Current Compressor R134a, 12-24V DC & 100-240V AC 50 60Hz Data Sheet
Summary
The BD50F is a high-efficiency R134a direct current compressor designed for various horizontal and vertical cooling applications. This comprehensive datasheet provides engineering professionals with detailed technical specifications, including performance curves, COP ratings, and multiple voltage options (DC 12V/24V and universal AC). The manual covers operational ranges, capacity measurements (EN/ASHRAE), system electrical unit pairings, fan cooling requirements, and a complete guide to troubleshooting codes for reliable installation and maintenance.
Page 1 Text Content
Datasheets

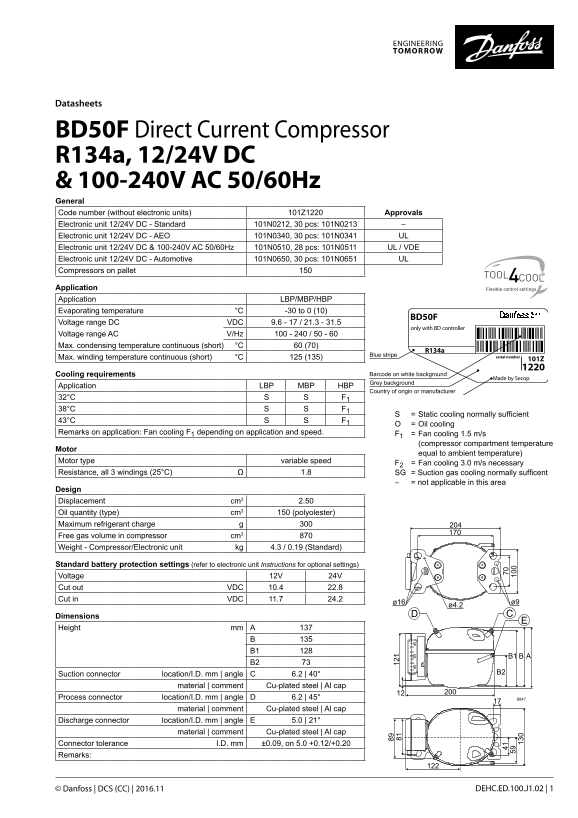

BD50F Direct Current Compressor R134a, 12/24V DC & 100-240V AC 50/60Hz General Code number (without electronic units) 101Z1220 Approvals Electronic unit 12/24V DC - Standard 101N0212, 30 pcs: 101N0213 Electronic unit 12/24V DC - AEO 101N0340, 30 pcs: 101N0341 UL Electronic unit 12/24V DC & 100-240V AC 50/60Hz 101N0510, 28 pcs: 101N0511 UL / VDE Electronic unit 12/24V DC - Automotive 101N0650, 30 pcs: 101N0651 UL Compressors on pallet Application Application LBP/MBP/HBP Evaporating temperature °C -30 to 0 (10)
BD50F
Voltage range DC VDC 9.6 - 17 / 21.3 - 31.5
only with BD controller
Voltage range AC V/Hz 100 - 240 / 50 - 60 Max. condensing temperature continuous (short) °C 60 (70)
Blue stripe serial number
Max. winding temperature continuous (short) °C 125 (135) 101Z
Cooling requirements Barcode on white background
Made by Secop
Grey background
Application LBP MBP HBP
Country of origin or manufacturer
= Static cooling normally sufficient
O = Oil cooling
Remarks on application: Fan cooling F1 depending on application and speed. F1 = Fan cooling 1.5 m/s
(compressor compartment temperature
Motor
equal to ambient temperature)
Motor type variable speed
F2 = Fan cooling 3.0 m/s necessary
Resistance, all 3 windings (25°C) 1.8 SG = Suction gas cooling normally sufficent
– = not applicable in this area
Design Displacement cm3 2.50 Oil quantity (type) cm3 150 (polyolester) Maximum refrigerant charge Free gas volume in compressor cm3 Weight - Compressor/Electronic unit kg 4.3 / 0.19 (Standard)
Standard battery protection settings (refer to electronic unit Instructions for optional settings) Voltage 12V 24V Cut out VDC 10.4 22.8 Cut in VDC 11.7 24.2
Dimensions Height mm
Suction connector location/I.D. mm | angle 6.2 | 40°
material | comment Cu-plated steel | Al cap
Process connector location/I.D. mm | angle 6.2 | 45°
material | comment Cu-plated steel | Al cap
Discharge connector location/I.D. mm | angle 5.0 | 21°
material | comment Cu-plated steel | Al cap
Connector tolerance I.D. mm ±0.09, on 5.0 +0.12/+0.20 Remarks:
© Danfoss | DCS (CC) | 2016.11 DEHC.ED.100.J1.02 | 1
