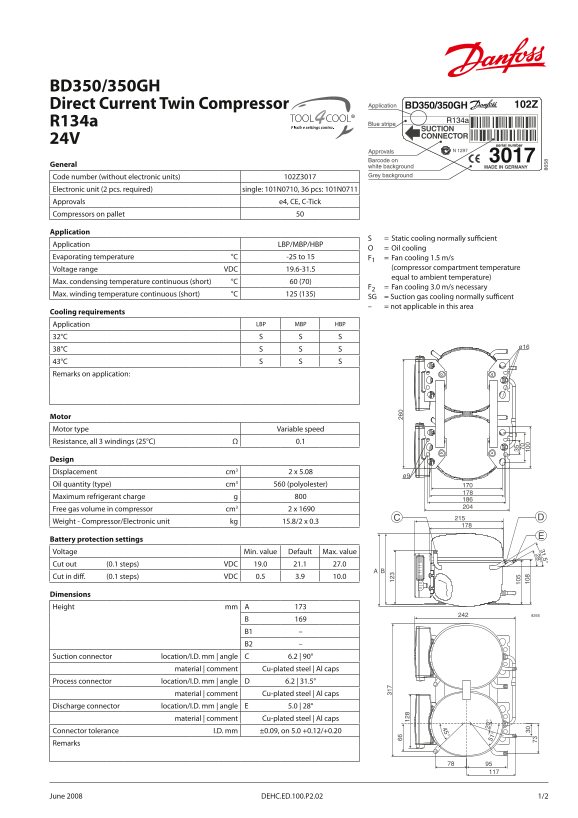

BD350/350GH
Direct Current Twin Compressor Application BD350/350GH 102Z
Blue stripe
SUCTION
CONNECTOR
serial number
Approvals N 1297
General white background MADE IN GERMANY
Grey background
Code number (without electronic units) 102Z3017 Electronic unit (2 pcs. required) single: 101N0710, 36 pcs: 101N0711 Approvals e4, CE, C-Tick Compressors on pallet
Application
S = Static cooling normally sufficient
Application LBP/MBP/HBP
O = Oil cooling
Evaporating temperature °C -25 to 15 F1 = Fan cooling 1.5 m/s
Voltage range VDC 19.6-31.5 (compressor compartment temperature equal to ambient temperature)
Max. condensing temperature continuous (short) °C 60 (70)
F2 = Fan cooling 3.0 m/s necessary
Max. winding temperature continuous (short) °C 125 (135)
SG = Suction gas cooling normally sufficent – = not applicable in this area
Cooling requirements
Application LBP MBP HBP
38°C 43°C Remarks on application:
Motor Motor type Variable speed Resistance, all 3 windings (25°C) 0.1
Design Displacement cm3 2 x 5.08
Oil quantity (type) cm3 560 (polyolester) Maximum refrigerant charge Free gas volume in compressor cm3 2 x 1690
Weight - Compressor/Electronic unit kg 15.8/2 x 0.3
Battery protection settings
58Barcode on
Voltage Min. value Default Max. value Cut out (0.1 steps) VDC 19.0 21.1 27.0
Cut in diff. (0.1 steps) VDC 0.5 3.9 10.0
Dimensions Height mm
Suction connector location/I.D. mm | angle 6.2 | 90°
material | comment Cu-plated steel | Al caps
Process connector location/I.D. mm | angle 6.2 | 31.5°
material | comment Cu-plated steel | Al caps
Discharge connector location/I.D. mm | angle 5.0 | 28°
material | comment Cu-plated steel | Al caps
Connector tolerance I.D. mm ±0.09, on 5.0 +0.12/+0.20 Remarks
June 2008 DEHC.ED.100.P2.02 1/2
