Danfoss BD350GH Direct Current Compressor R134a 48V DC - With 101N07xx Series Controllers Datasheet
Summary
This variable speed DC compressor unit is engineered for high-efficiency cooling systems using R134a refrigerant. The comprehensive manual serves as a vital technical resource, detailing diverse operational standards (ASHRAE LBP and EN 12900), electrical specifications, performance curves across various temperature ranges, and detailed troubleshooting guides. It is essential reading for HVAC professionals and technicians responsible for the precise installation, maintenance, diagnosis, and reliable repair of commercial refrigeration equipment.
Page 1 Text Content

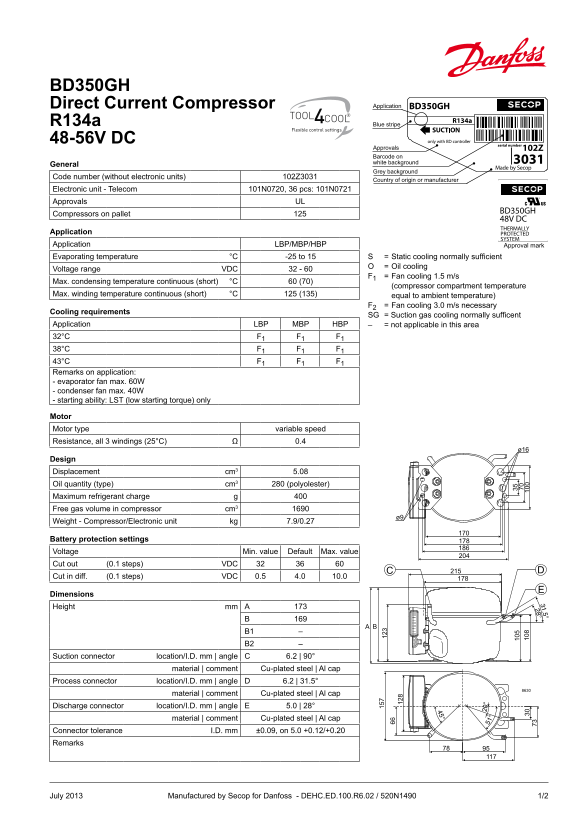

BD350GH Direct Current Compressor R134a 48-56V DC General Code number (without electronic units) 102Z3031 Electronic unit - Telecom 101N0720, 36 pcs: 101N0721 Approvals UL Compressors on pallet Application Application LBP/MBP/HBP Evaporating temperature °C -25 to 15 S = Static cooling normally sufficient
O = Oil cooling
Voltage range VDC 32 - 60
F1 = Fan cooling 1.5 m/s
Max. condensing temperature continuous (short) °C 60 (70)
(compressor compartment temperature
Max. winding temperature continuous (short) °C 125 (135) equal to ambient temperature)
F2 = Fan cooling 3.0 m/s necessary
Cooling requirements
SG = Suction gas cooling normally sufficent
Application LBP MBP HBP – = not applicable in this area 32°C F1 F1 F1 38°C F1 F1 F1 43°C F1 F1 F1 Remarks on application: - evaporator fan max. 60W - condenser fan max. 40W - starting ability: LST (low starting torque) only
Motor Motor type variable speed Resistance, all 3 windings (25°C) 0.4
Design Displacement cm3 5.08 Oil quantity (type) cm3 280 (polyolester) Maximum refrigerant charge Free gas volume in compressor cm3 Weight - Compressor/Electronic unit kg 7.9/0.27
Battery protection settings Voltage Min. value Default Max. value Cut out (0.1 steps) VDC Cut in diff. (0.1 steps) VDC 0.5 4.0 10.0
Dimensions Height mm
Suction connector location/I.D. mm | angle 6.2 | 90°
material | comment Cu-plated steel | Al cap
Process connector location/I.D. mm | angle 6.2 | 31.5°
material | comment Cu-plated steel | Al cap
Discharge connector location/I.D. mm | angle 5.0 | 28°
material | comment Cu-plated steel | Al cap
Connector tolerance I.D. mm ±0.09, on 5.0 +0.12/+0.20 Remarks
July 2013 Manufactured by Secop for Danfoss - DEHC.ED.100.R6.02 / 520N1490 1/2
