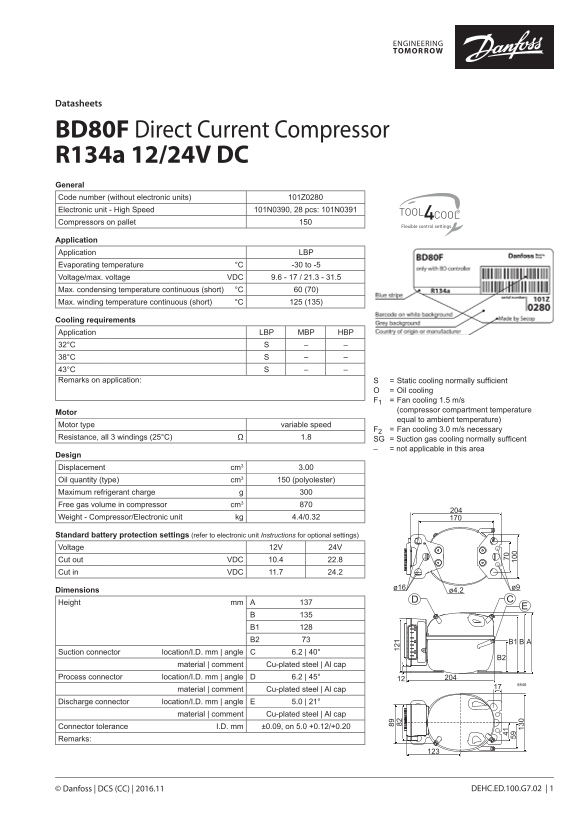

BD80F Direct Current Compressor R134a 12/24V DC General Code number (without electronic units) 101Z0280 Electronic unit - High Speed 101N0390, 28 pcs: 101N0391 Compressors on pallet Application Application LBP Evaporating temperature °C -30 to -5 Voltage/max. voltage VDC 9.6 - 17 / 21.3 - 31.5 Max. condensing temperature continuous (short) °C 60 (70) Max. winding temperature continuous (short) °C 125 (135) Cooling requirements Application LBP MBP HBP 32°C 38°C 43°C Remarks on application: S = Static cooling normally suffi cient
O = Oil cooling F1 = Fan cooling 1.5 m/s (compressor compartment temperature
Motor
equal to ambient temperature)
Motor type variable speed
F2 = Fan cooling 3.0 m/s necessary
Resistance, all 3 windings (25°C) 1.8 SG = Suction gas cooling normally suffi cent
– = not applicable in this area
Design Displacement cm3 3.00 Oil quantity (type) cm3 150 (polyolester) Maximum refrigerant charge Free gas volume in compressor cm3 Weight - Compressor/Electronic unit kg 4.4/0.32
Standard battery protection settings (refer to electronic unit Instructions for optional settings) Voltage 12V 24V Cut out VDC 10.4 22.8 Cut in VDC 11.7 24.2
Dimensions Height mm
Suction connector location/I.D. mm | angle 6.2 | 40°
material | comment Cu-plated steel | Al cap
Process connector location/I.D. mm | angle 6.2 | 45°
material | comment Cu-plated steel | Al cap
Discharge connector location/I.D. mm | angle 5.0 | 21°
material | comment Cu-plated steel | Al cap
Connector tolerance I.D. mm ±0.09, on 5.0 +0.12/+0.20 Remarks:
© Danfoss | DCS (CC) | 2016.11 DEHC.ED.100.G7.02 | 1
