Danfoss BD250GH.2 Direct Current Compressor R134a, 12 24V DC Datasheet
Summary
This technical datasheet provides comprehensive details for the BD250GH.2 Direct Current DC Compressor, an R134a variable speed unit designed for modern refrigeration systems. It serves HVAC professionals and engineers selecting or servicing cooling equipment. The manual covers vital operational parameters, including performance curves across various ambient temperatures, electrical consumption data (AC/DC voltage), capacity ratings (ASHRAE LBP/EN 12900), sizing specifications, and a detailed troubleshooting guide for error codes.
Page 1 Text Content
Datasheets

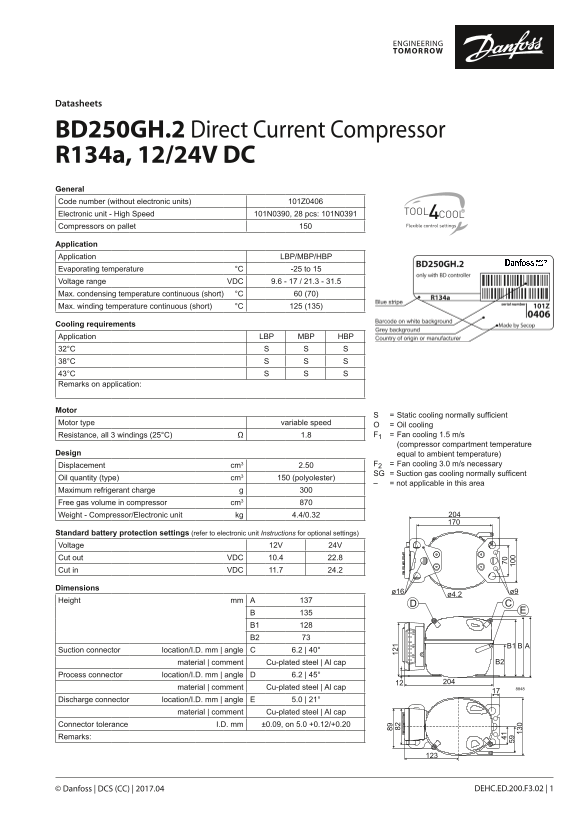

BD250GH.2 Direct Current Compressor R134a, 12/24V DC General Code number (without electronic units) 101Z0406 Electronic unit - High Speed 101N0390, 28 pcs: 101N0391 Compressors on pallet Application Application LBP/MBP/HBP Evaporating temperature °C -25 to 15 Voltage range VDC 9.6 - 17 / 21.3 - 31.5 Max. condensing temperature continuous (short) °C 60 (70) Max. winding temperature continuous (short) °C 125 (135) Cooling requirements Application LBP MBP HBP 32°C 38°C 43°C Remarks on application:
Motor
= Static cooling normally sufficient
Motor type variable speed
O = Oil cooling Resistance, all 3 windings (25°C) 1.8 F1 = Fan cooling 1.5 m/s (compressor compartment temperature
Design equal to ambient temperature)
Displacement cm3 2.50 F2 = Fan cooling 3.0 m/s necessary SG = Suction gas cooling normally sufficent
Oil quantity (type) cm3 150 (polyolester)
– = not applicable in this area
Maximum refrigerant charge Free gas volume in compressor cm3 Weight - Compressor/Electronic unit kg 4.4/0.32
Standard battery protection settings (refer to electronic unit Instructions for optional settings) Voltage 12V 24V Cut out VDC 10.4 22.8 Cut in VDC 11.7 24.2
Dimensions Height mm
Suction connector location/I.D. mm | angle 6.2 | 40°
material | comment Cu-plated steel | Al cap
Process connector location/I.D. mm | angle 6.2 | 45°
material | comment Cu-plated steel | Al cap
Discharge connector location/I.D. mm | angle 5.0 | 21°
material | comment Cu-plated steel | Al cap
Connector tolerance I.D. mm ±0.09, on 5.0 +0.12/+0.20 Remarks:
