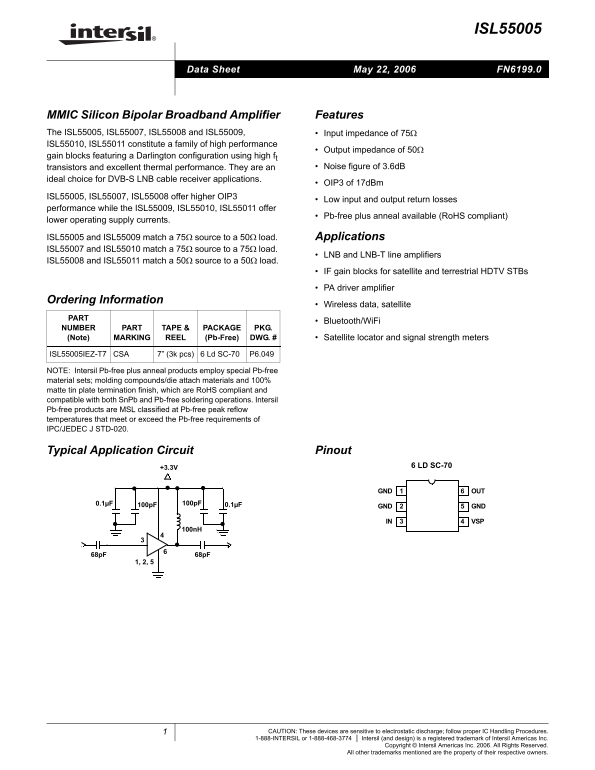

ISL55005
May 22, 2006 FN6199.0Data Sheet
MMIC Silicon Bipolar Broadband Amplifier Features The ISL55005, ISL55007, ISL55008 and ISL55009, Input impedance of 75Ω ISL55010, ISL55011 constitute a family of high performance
Output impedance of 50Ω
gain blocks featuring a Darlington configuration using high ft
transistors and excellent thermal performance. They are an Noise figure of 3.6d B
ideal choice for DVB-S LNB cable receiver applications.
OIP3 of 17d Bm
ISL55005, ISL55007, ISL55008 offer higher OIP3
Low input and output return losses
performance while the ISL55009, ISL55010, ISL55011 offer
Pb-free plus anneal available (Ro HS compliant)
lower operating supply currents.
ISL55005 and ISL55009 match a 75Ω source to a 50Ω load. Applications ISL55007 and ISL55010 match a 75Ω source to a 75Ω load.
LNB and LNB-T line amplifiers
ISL55008 and ISL55011 match a 50Ω source to a 50Ω load.
IF gain blocks for satellite and terrestrial HDTV STBs PA driver amplifier
Ordering Information
Wireless data, satellite
Bluetooth/Wi Fi
NUMBER PART TAPE & PACKAGE PKG. (Note) MARKING REEL (Pb-Free) DWG. # Satellite locator and signal strength meters
ISL55005IEZ-T7 CSA 7” (3k pcs) 6 Ld SC-70 P6.049
NOTE: Intersil Pb-free plus anneal products employ special Pb-free material sets; molding compounds/die attach materials and 100% matte tin plate termination finish, which are Ro HS compliant and compatible with both Sn Pb and Pb-free soldering operations. Intersil Pb-free products are MSL classified at Pb-free peak reflow temperatures that meet or exceed the Pb-free requirements of IPC/JEDEC J STD-020.
Typical Application Circuit Pinout
+3.3V 6 LD SC-70
GND OUT
GND GND
IN VSP
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 1-888-468-3774 Intersil (and design) is a registered trademark of Intersil Americas Inc. Copyright © Intersil Americas Inc. 2006. All Rights Reserved. All other trademarks mentioned are the property of their respective owners.
