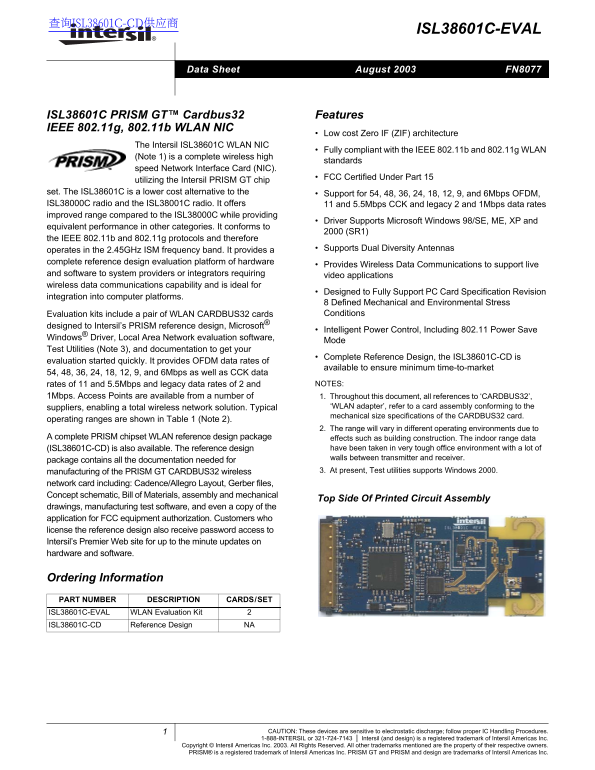

ISL38601C-EVAL

Data Sheet August 2003 FN8077

ISL38601C PRISM GT™ Cardbus32 Features

IEEE 802.11g, 802.11b WLAN NIC

Low cost Zero IF (ZIF) architecture

The Intersil ISL38601C WLAN NIC

Fully compliant with the IEEE 802.11b and 802.11g WLAN

(Note 1) is a complete wireless high

standards

speed Network Interface Card (NIC).

FCC Certified Under Part 15

utilizing the Intersil PRISM GT chip

set. The ISL38601C is a lower cost alternative to the Support for 54, 48, 36, 24, 18, 12, 9, and 6Mbps OFDM, ISL38000C radio and the ISL38001C radio. It offers 11 and 5.5Mbps CCK and legacy 2 and 1Mbps data rates improved range compared to the ISL38000C while providing

Driver Supports Microsoft Windows 98/SE, ME, XP and

equivalent performance in other categories. It conforms to

2000 (SR1)

the IEEE 802.11b and 802.11g protocols and therefore

operates in the 2.45GHz ISM frequency band. It provides a Supports Dual Diversity Antennas

complete reference design evaluation platform of hardware

Provides Wireless Data Communications to support live

and software to system providers or integrators requiring video applications wireless data communications capability and is ideal for

Designed to Fully Support PC Card Specification Revision

integration into computer platforms.

8 Defined Mechanical and Environmental Stress Evaluation kits include a pair of WLAN CARDBUS32 cards Conditions

designed to Intersil’s PRISM reference design, Microsoft®

Intelligent Power Control, Including 802.11 Power Save

Windows® Driver, Local Area Network evaluation software,

Test Utilities (Note 3), and documentation to get your

Complete Reference Design, the ISL38601C-CD is

evaluation started quickly. It provides OFDM data rates of

available to ensure minimum time-to-market

54, 48, 36, 24, 18, 12, 9, and 6Mbps as well as CCK data

rates of 11 and 5.5Mbps and legacy data rates of 2 and NOTES:

1Mbps. Access Points are available from a number of 1. Throughout this document, all references to ‘CARDBUS32’,

suppliers, enabling a total wireless network solution. Typical ‘WLAN adapter’, refer to a card assembly conforming to the mechanical size specifications of the CARDBUS32 card.

operating ranges are shown in Table 1 (Note 2).

2. The range will vary in different operating environments due to

A complete PRISM chipset WLAN reference design package effects such as building construction. The indoor range data

(ISL38601C-CD) is also available. The reference design have been taken in very tough office environment with a lot of walls between transmitter and receiver.

package contains all the documentation needed for

manufacturing of the PRISM GT CARDBUS32 wireless 3. At present, Test utilities supports Windows 2000.

network card including: Cadence/Allegro Layout, Gerber files, Concept schematic, Bill of Materials, assembly and mechanical

Top Side Of Printed Circuit Assembly

drawings, manufacturing test software, and even a copy of the application for FCC equipment authorization. Customers who license the reference design also receive password access to Intersil’s Premier Web site for up to the minute updates on hardware and software.

Ordering Information PART NUMBER DESCRIPTION CARDS/SET ISL38601C-EVAL WLAN Evaluation Kit ISL38601C-CD Reference Design NA

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 321-724-7143 Intersil (and design) is a registered trademark of Intersil Americas Inc.

Copyright © Intersil Americas Inc. 2003. All Rights Reserved. All other trademarks mentioned are the property of their respective owners. PRISM® is a registered trademark of Intersil Americas Inc. PRISM GT and PRISM and design are trademarks of Intersil Americas Inc.
