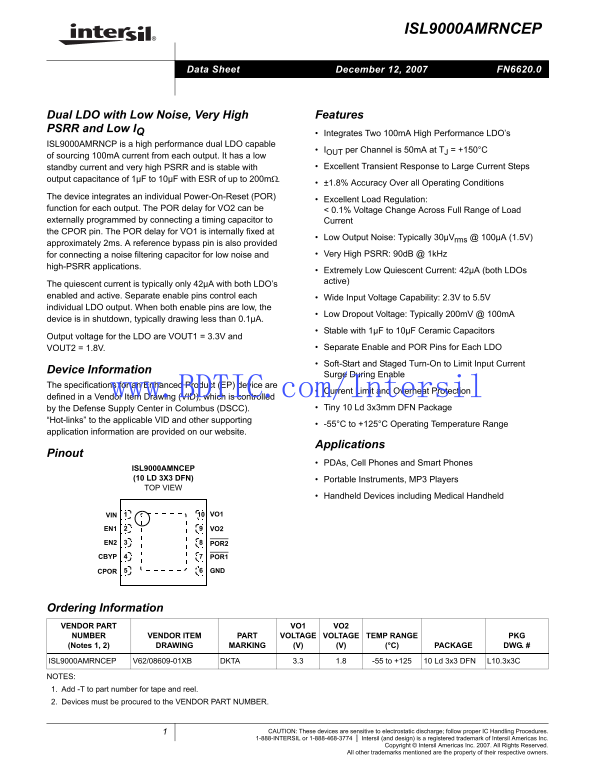

Intel Silicon Intersil ISL9000AMRNCEP Data Sheet

ISL9000AMRNCEP

December 12, 2007 FN6620.0Data Sheet

Dual LDO with Low Noise, Very High Features PSRR and Low IQ

Integrates Two 100m A High Performance LDO’s

ISL9000AMRNCP is a high performance dual LDO capable

IOUT per Channel is 50m A at TJ = +150°C

of sourcing 100m A current from each output. It has a low

standby current and very high PSRR and is stable with Excellent Transient Response to Large Current Steps

output capacitance of 1µF to 10µF with ESR of up to 200mΩ.

±1.8% Accuracy Over all Operating Conditions

The device integrates an individual Power-On-Reset (POR)

Excellent Load Regulation:

function for each output. The POR delay for VO2 can be < 0.1% Voltage Change Across Full Range of Load externally programmed by connecting a timing capacitor to Current the CPOR pin. The POR delay for VO1 is internally fixed at

Low Output Noise: Typically 30µVrms @ 100µA (1.5V)

approximately 2ms. A reference bypass pin is also provided

for connecting a noise filtering capacitor for low noise and Very High PSRR: 90d B @ 1k Hz

high-PSRR applications.

Extremely Low Quiescent Current: 42µA (both LDOs active)

The quiescent current is typically only 42µA with both LDO’s enabled and active. Separate enable pins control each Wide Input Voltage Capability: 2.3V to 5.5V individual LDO output. When both enable pins are low, the

Low Dropout Voltage: Typically 200m V @ 100m A

device is in shutdown, typically drawing less than 0.1µA.

Stable with 1µF to 10µF Ceramic Capacitors

Output voltage for the LDO are VOUT1 = 3.3V and

VOUT2 1.8V. Separate Enable and POR Pins for Each LDO Soft-Start and Staged Turn-On to Limit Input Current

Device Information

Surge During Enable

The specifications for an Enhanced Product (EP) device are

www.BDTIC.com/Int Current Limit and Overheat Protection rsil

defined in a Vendor Item Drawing (VID), which is controlled

by the Defense Supply Center in Columbus (DSCC). Tiny 10 Ld 3x3mm DFN Package

“Hot-links” to the applicable VID and other supporting

-55°C to +125°C Operating Temperature Range

application information are provided on our website.

Applications

Pinout

PDAs, Cell Phones and Smart Phones

ISL9000AMNCEP (10 LD 3X3 DFN) Portable Instruments, MP3 Players TOP VIEW

Handheld Devices including Medical Handheld

VIN VO1

EN1 VO2

EN2 POR2

CBYP POR1

CPOR GND

Ordering Information VENDOR PART VO1 VO2 NUMBER VENDOR ITEM PART VOLTAGE VOLTAGE TEMP RANGE PKG (Notes 1, 2) DRAWING MARKING (V) (V) (°C) PACKAGE DWG. #

ISL9000AMRNCEP V62/08609-01XB DKTA 3.3 1.8 -55 to +125 10 Ld 3x3 DFN L10.3x3C

NOTES: 1. Add -T to part number for tape and reel. 2. Devices must be procured to the VENDOR PART NUMBER.

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures. 1-888-INTERSIL or 1-888-468-3774 Intersil (and design) is a registered trademark of Intersil Americas Inc.

Copyright © Intersil Americas Inc. 2007. All Rights Reserved.

All other trademarks mentioned are the property of their respective owners.
