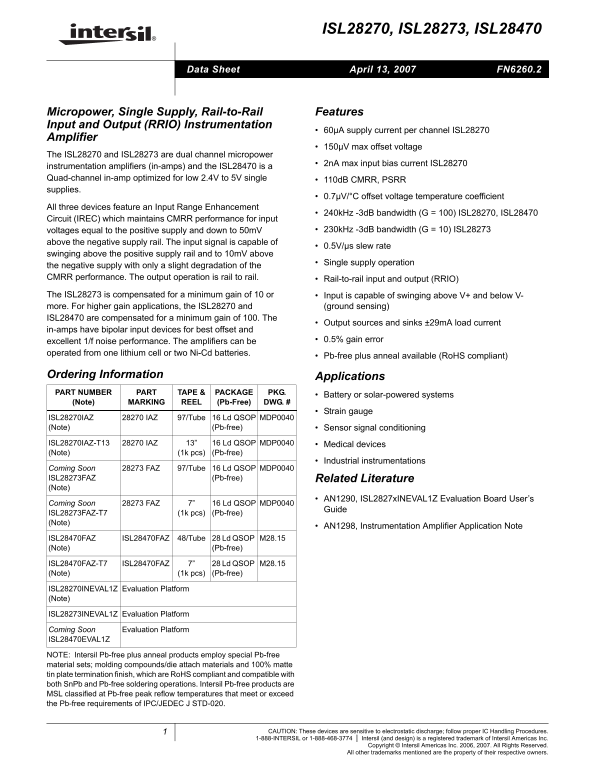

Intel INTERSIL ISL28270 ISL28273 ISL28470 User Manual

ISL28270, ISL28273, ISL28470

April 13, 2007 FN6260.2Data Sheet

Micropower, Single Supply, Rail-to-Rail Features Input and Output (RRIO) Instrumentation

60µA supply current per channel ISL28270

Amplifier

150µV max offset voltage

The ISL28270 and ISL28273 are dual channel micropower

2n A max input bias current ISL28270

instrumentation amplifiers (in-amps) and the ISL28470 is a Quad-channel in-amp optimized for low 2.4V to 5V single 110d B CMRR, PSRR supplies.

0.7µV/°C offset voltage temperature coefficient

All three devices feature an Input Range Enhancement

240k Hz -3d B bandwidth (G = 100) ISL28270, ISL28470

Circuit (IREC) which maintains CMRR performance for input

voltages equal to the positive supply and down to 50m V 230k Hz -3d B bandwidth (G = 10) ISL28273

above the negative supply rail. The input signal is capable of

0.5V/µs slew rate

swinging above the positive supply rail and to 10m V above

Single supply operation

the negative supply with only a slight degradation of the CMRR performance. The output operation is rail to rail. Rail-to-rail input and output (RRIO)

The ISL28273 is compensated for a minimum gain of 10 or Input is capable of swinging above V+ and below V- more. For higher gain applications, the ISL28270 and (ground sensing) ISL28470 are compensated for a minimum gain of 100. The

Output sources and sinks ±29m A load current

in-amps have bipolar input devices for best offset and

excellent 1/f noise performance. The amplifiers can be 0.5% gain error

operated from one lithium cell or two Ni-Cd batteries.

Pb-free plus anneal available (Ro HS compliant)

Ordering Information Applications PART NUMBER PART TAPE & PACKAGE PKG.

Battery or solar-powered systems

(Note) MARKING REEL (Pb-Free) DWG. #

Strain gauge

ISL28270IAZ 28270 IAZ 97/Tube 16 Ld QSOP MDP0040 (Note) (Pb-free) Sensor signal conditioning

ISL28270IAZ-T13 28270 IAZ 13” 16 Ld QSOP MDP0040 Medical devices (Note) (1k pcs) (Pb-free)

Industrial instrumentations

Coming Soon FAZ 97/Tube 16 Ld QSOP MDP0040

ISL28273FAZ (Pb-free) Related Literature

(Note)

AN1290, ISL2827x INEVAL1Z Evaluation Board User’s

Coming Soon 28273 FAZ 7” 16 Ld QSOP MDP0040

Guide

ISL28273FAZ-T7 (1k pcs) (Pb-free)

(Note)

AN1298, Instrumentation Amplifier Application Note

ISL28470FAZ ISL28470FAZ 48/Tube 28 Ld QSOP M28.15 (Note) (Pb-free)

ISL28470FAZ-T7 ISL28470FAZ 7” 28 Ld QSOP M28.15 (Note) (1k pcs) (Pb-free)

ISL28270INEVAL1Z Evaluation Platform (Note)

ISL28273INEVAL1Z Evaluation Platform

Coming Soon Evaluation Platform ISL28470EVAL1Z

NOTE: Intersil Pb-free plus anneal products employ special Pb-free material sets; molding compounds/die attach materials and 100% matte tin plate termination finish, which are Ro HS compliant and compatible with both Sn Pb and Pb-free soldering operations. Intersil Pb-free products are MSL classified at Pb-free peak reflow temperatures that meet or exceed the Pb-free requirements of IPC/JEDEC J STD-020.

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 1-888-468-3774 Intersil (and design) is a registered trademark of Intersil Americas Inc. Copyright © Intersil Americas Inc. 2006, 2007. All Rights Reserved. All other trademarks mentioned are the property of their respective owners.
