IDEC CW-Touchless (Test Report) Technical Document
Summary
Discover reliable power management with the φ22 CW Series Flush Silhouette Touchless Switches. Designed for challenging industrial applications, these sensors feature photoMOS relay outputs and operate on 12V to 24V DC voltage. This documentation provides comprehensive test evidence, verifying electrical performance, extended durability across extreme temperatures (-35°C to +70°C), high humidity, and achieving robust ratings (IP6X, IPX7, UL Type 4X). Ideal for automation engineers, facility managers, and industrial clients who require certified, ultra-durable switching solutions for mission-critical infrastructure.
Page 1 Text Content

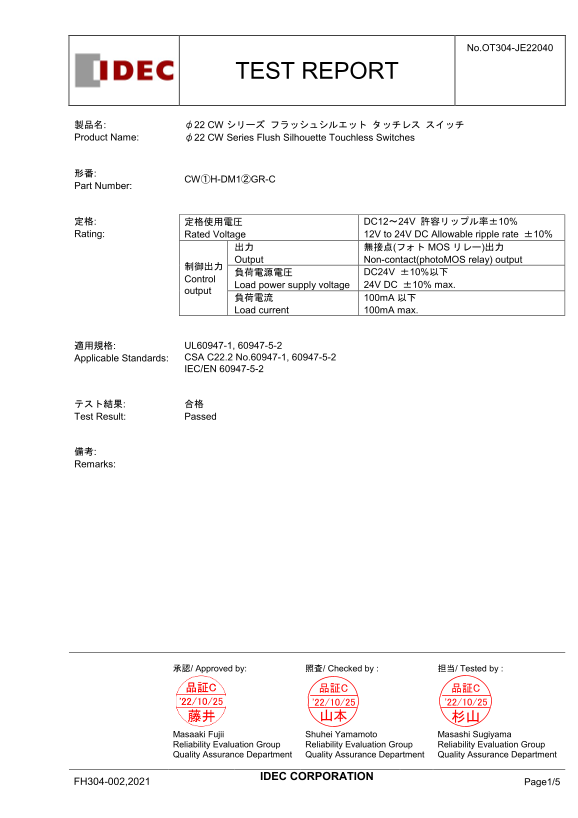

No.OT304-JE22040
TEST REPORT
製品名: φ22 CW シリーズ フラッシュシルエット タッチレス スイッチ Product Name: φ22 CW Series Flush Silhouette Touchless Switches
CW①H-DM1②GR-C
Part Number:
定格: 定格使用電圧 DC12～24V 許容リップル率±10% Rating: Rated Voltage 12V to 24V DC Allowable ripple rate ±10%
出力 無接点(フォト MOSリレー)出力 Output Non-contact(photo MOS relay) output
負荷電源電圧 DC24V ±10%以下
Control
Load power supply voltage 24V DC ±10% max.
output
Load current 100m A max.
適用規格: UL60947-1, 60947-5-2
Applicable Standards: CSA C22.2 No.60947-1, 60947-5-2 IEC/EN 60947-5-2
テスト結果: 合格 Test Result: Passed
備考: Remarks:
承認/ Approved by: 照査/ Checked by : 担当/ Tested by :
Masaaki Fujii Shuhei Yamamoto Masashi Sugiyama
Reliability Evaluation Group Reliability Evaluation Group Reliability Evaluation Group Quality Assurance Department Quality Assurance Department Quality Assurance Department
IDEC CORPORATION
FH304-002,2021 Page1/5
