HP Scitex FB10000 Industrial Printing Machine Geffen TS Error 66065
Summary
Diagnose and resolve "Unable to fill the Light Cyan secondary tank" errors with this comprehensive troubleshooting guide. Designed for maintenance technicians, this resource systematically covers Error ID 60065, addressing potential mechanical and electrical faults. Learn expert procedures for inspecting obstructed tubing, replacing clogged ink filters, diagnosing faulty pumps, and verifying control commands to ensure optimal and reliable performance of your printing system's light cyan ink circuit.

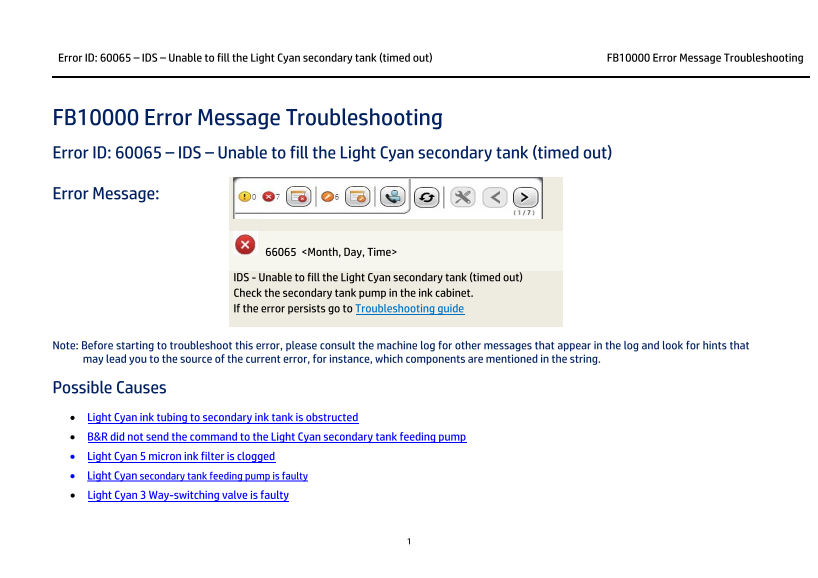

Page 1 Text Content
Error ID: 60065 – IDS – Unable to fill the Light Cyan secondary tank (timed out) FB10000 Error Message Troubleshooting
FB10000 Error Message Troubleshooting Error ID: 60065 – IDS – Unable to fill the Light Cyan secondary tank (timed out)
Error Message:
66065 <Month, Day, Time>
IDS - Unable to fill the Light Cyan secondary tank (timed out) Check the secondary tank pump in the ink cabinet. If the error persists go to Troubleshooting guide
Note: Before starting to troubleshoot this error, please consult the machine log for other messages that appear in the log and look for hints that may lead you to the source of the current error, for instance, which components are mentioned in the string.
Possible Causes • Light Cyan ink tubing to secondary ink tank is obstructed • B&R did not send the command to the Light Cyan secondary tank feeding pump • Light Cyan 5 micron ink filter is clogged • Light Cyan secondary tank feeding pump is faulty • Light Cyan 3 Way-switching valve is faulty
Page Summary Contents For HP Scitex FB10000 Industrial Printing Machine Geffen TS Error 66065
Manual Details
| Brand | HP |
|---|---|
| Pages | 6 |
| File Size | 445.45 KB |
| Published | June 20, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the first recommended action when encountering Error ID 60065?
Consult the machine log for other messages that appear in the log and look for hints that lead you to the source of the current error.
How do I troubleshoot a suspected obstruction in the Light Cyan ink tubing?
Inspect the tubing along the route from the Main ink tank to the secondary tank. Repair it if any section is bent or damaged.
What steps should be taken if the light cyan filling times out due to a clogged filter or faulty pump?
First, replace the 5 micron Light Cyan ink filter. If the error persists, check the B&R command and consider replacing the secondary tank feeding pump itself.
