HP Scitex FB10000 Industrial Printing Press Geffen TS Error 66037
Summary
Comprehensive technical documentation designed for diagnosing critical pneumatic failures, specifically tackling Error ID 66037 concerning cross valve operation. This essential guide walks industrial maintenance personnel and certified electricians through systematic troubleshooting of air pressure loss, electrical supply issues (24V), mechanical sticking, and sensor/module faults within complex automated systems. It provides actionable steps to resolve malfunctions in pneumatic panels and electromechanical components quickly and safely.

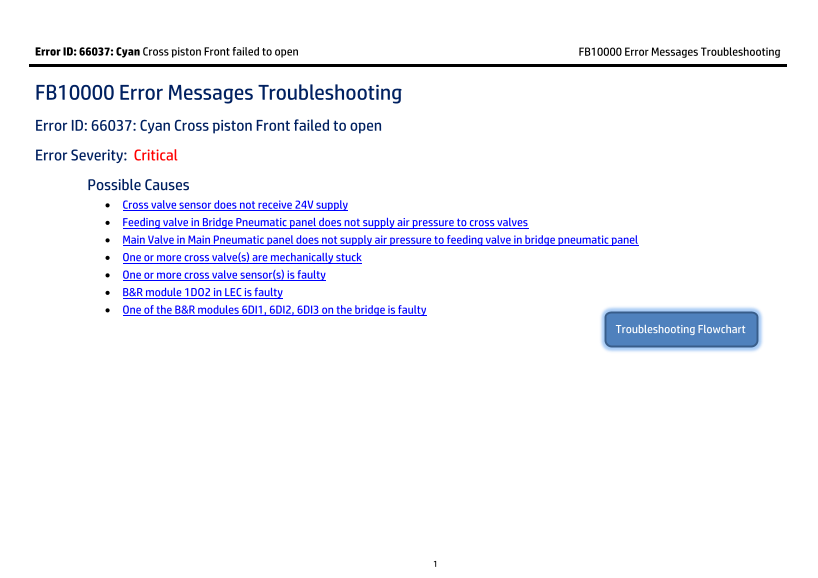

Page 1 Text Content
Error ID: 66037: Cyan Cross piston Front failed to open FB10000 Error Messages Troubleshooting
FB10000 Error Messages Troubleshooting Error ID: 66037: Cyan Cross piston Front failed to open Error Severity: Critical Possible Causes
Cross valve sensor does not receive 24V supply Feeding valve in Bridge Pneumatic panel does not supply air pressure to cross valves Main Valve in Main Pneumatic panel does not supply air pressure to feeding valve in bridge pneumatic panel One or more cross valve(s) are mechanically stuck One or more cross valve sensor(s) is faulty B&R module 1DO2 in LEC is faulty One of the B&R modules 6DI1, 6DI2, 6DI3 on the bridge is faulty
Troubleshooting Flowchart
Page Summary Contents For HP Scitex FB10000 Industrial Printing Press Geffen TS Error 66037
Manual Details
| Brand | HP |
|---|---|
| Pages | 7 |
| File Size | 1.01 MB |
| Published | June 17, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What should I check if all cross valves are unresponsive or lack 24V supply?
WARNING! High Voltage System! Only an HP certified electrician may perform tests involving wiring while the system is operational.
