HP Scitex FB10000 Industrial Printing Press Geffen TS Error 66042
Summary
This comprehensive troubleshooting manual provides detailed diagnostics for Error ID 16042: Yellow cross valve back failed to open on pneumatic systems. It guides technicians through identifying critical operational failures, covering electrical supply issues (including 24V power checks), loss of pressurized air, mechanical blockages, and faults within associated sensors or B&R modules. Designed for skilled industrial electricians and maintenance engineers, this guide ensures systematic troubleshooting for complex pneumatic panel systems, minimizing downtime and restoring proper function safely.
Page 1 Text Content

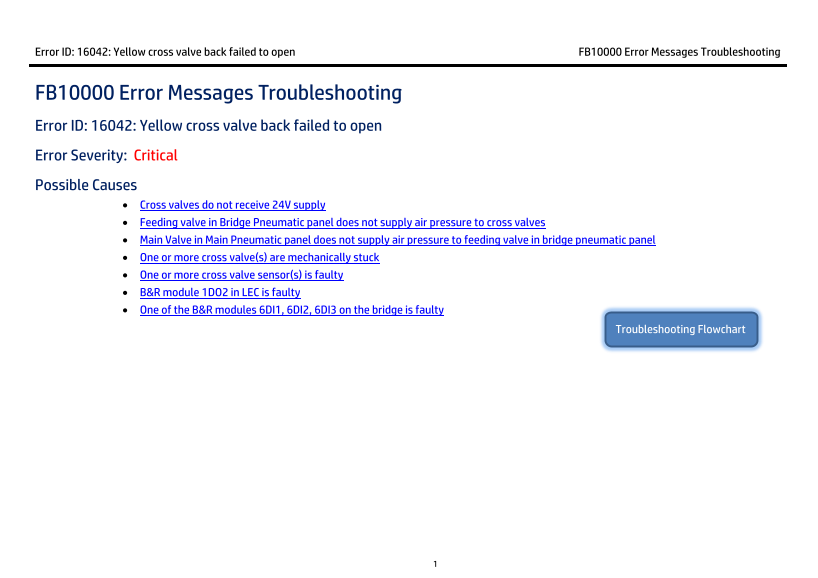

Error ID: 16042: Yellow cross valve back failed to open FB10000 Error Messages Troubleshooting
FB10000 Error Messages Troubleshooting Error ID: 16042: Yellow cross valve back failed to open Error Severity: Critical Possible Causes
• Cross valves do not receive 24V supply • Feeding valve in Bridge Pneumatic panel does not supply air pressure to cross valves • Main Valve in Main Pneumatic panel does not supply air pressure to feeding valve in bridge pneumatic panel • One or more cross valve(s) are mechanically stuck • One or more cross valve sensor(s) is faulty • B&R module 1DO2 in LEC is faulty • One of the B&R modules 6DI1, 6DI2, 6DI3 on the bridge is faulty
Troubleshooting Flowchart
Page Summary Contents For HP Scitex FB10000 Industrial Printing Press Geffen TS Error 66042
Manual Details
| Brand | HP |
|---|---|
| Pages | 7 |
| File Size | 598.51 KB |
| Published | June 18, 2026 |
