HP Scitex FB10000 Industrial Printing Machine Geffen TS Error 66052
Summary
This comprehensive troubleshooting guide is essential reading for technical maintenance staff and qualified electricians managing complex pneumatic machinery. It thoroughly details the diagnosis of critical system faults, particularly Error ID: 66052 concerning cross valve closure failure. The manual guides users through checking electrical supplies (24V), verifying air pressure throughout multiple panels, diagnosing mechanical sticking, and troubleshooting specific component failures including sensors and B&R modules, ensuring safe và efficient resolution for high-voltage industrial environments.
Page 1 Text Content

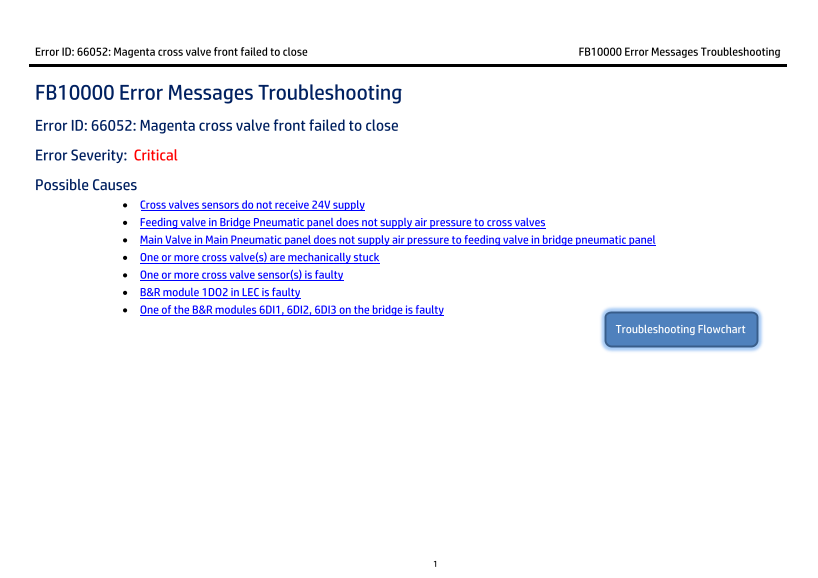

Error ID: 66052: Magenta cross valve front failed to close FB10000 Error Messages Troubleshooting
FB10000 Error Messages Troubleshooting Error ID: 66052: Magenta cross valve front failed to close Error Severity: Critical Possible Causes
Cross valves sensors do not receive 24V supply Feeding valve in Bridge Pneumatic panel does not supply air pressure to cross valves Main Valve in Main Pneumatic panel does not supply air pressure to feeding valve in bridge pneumatic panel One or more cross valve(s) are mechanically stuck One or more cross valve sensor(s) is faulty B&R module 1DO2 in LEC is faulty One of the B&R modules 6DI1, 6DI2, 6DI3 on the bridge is faulty
Troubleshooting Flowchart
Page Summary Contents For HP Scitex FB10000 Industrial Printing Machine Geffen TS Error 66052
Manual Details
| Brand | HP |
|---|---|
| Pages | 7 |
| File Size | 639.42 KB |
| Published | June 18, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the first step if I receive Error ID: 66052?
Before troubleshooting, remember that you must only proceed if certified by an HP electrician and never touch wiring while the system is energized.
How do I check for insufficient electricity to the cross valves?
Detect which color sensor doesn't switch state using the Control Tool. Check the central 24V supply path from the LEC and verify all wiring connections.
My cross valve won't move; what are possible causes?
Possible causes include air leaks, a mechanically stuck valve, or faulty sensors/modules like B&R modules on the bridge.
What should I do if I suspect a sensor is faulty?
After confirming air feed and voltage, try manually moving the cross-valve flag. If it moves but the sensor state doesn't change, the sensor itself needs replacement.
