Get your professional large-format printing workflow operational with this comprehensive assembly manual for HP DesignJet Z6610/Z6810 production printers. This essential guide provides detailed, multi-lingual instructions on everything required for setup, including stand assembly, component installation, and initial software configuration. It is crucial reading for technical users, professional installers, and print shop operators who need to properly prepare this powerful machinery for commercial printing tasks. Ensure flawless deployment according to proper spacing and safety guidelines.
Page 1 Text Content

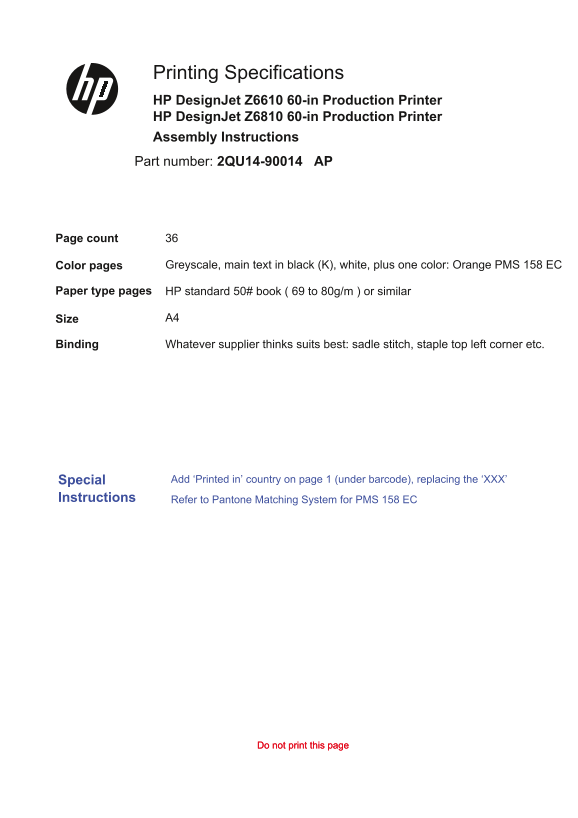

Printing Specifications HP Design Jet Z6610 60-in Production Printer HP Design Jet Z6810 60-in Production Printer Assembly Instructions Part number: 2QU14-90014 AP
Page count
Color pages Greyscale, main text in black (K), white, plus one color: Orange PMS 158 EC
Paper type pages HP standard 50# book ( 69 to 80g/m ) or similar
Size A4
Binding Whatever supplier thinks suits best: sadle stitch, staple top left corner etc.
Special Add ‘Printed in’ country on page 1 (under barcode), replacing the ‘XXX’
Instructions Refer to Pantone Matching System for PMS 158 EC
Do not print this page
Page Summary Contents For HP DesignJet Z6610 Production Printer
Page 1
Printing Specifications HP Design Jet Z6610 60-in Production Printer HP Design Jet Z6810 60-in Production Printer Assembly Instructions Part number: 2QU14-90014 AP Page count Color pages Greyscale, ma...
Page 2
1. Printer engine / プリンタ エンジン / 打印机引擎 1m The space required for assembly is 3m (10 feet) 3.5ft 3.5ft in front and 1m (3.5 feet) at the sides and rear. HP Design Jet Z6610 60-in / 印表機引擎 / 프린터 엔진 / Mesi...
Page 3
EN Remove the packaging JA パッケージの開梱 取下包装 從包裝中取出 KO 포장재 제거 ID Lepaskan kemasan EN Carefully cut the strap around the boxes. Make Remove the boxes shown. sure that the boxes don’t fall when the strap is...
Page 4
EN Assemble the stand JA スタンドの組み立て 装配支架 組裝機架 KO 스탠드 조립하기 ID Memasang dudukan EN Remove boxes and foam shown. Remove the two boxes marked L and R. Lower the left side of the cross-brace onto the box ma...
Page 5
Locate the bag of screws and the screwdriver provided. Remove the left leg from the box, and then remove the two Lower the left leg onto the left side of the cross-brace. The Use four screws on the in...
Page 6
EN Use two screws on the outside of the left leg to attach the Lower the right leg onto the right side of the cross-brace. Use four screws on the inside of the right leg to attach the Use two screws o...
Page 7
EN Use four screws to attach the cross-bar to the legs. Notice that there is anti-slip material around two of the Place a foot on the left leg. There are pins to help you Use four screws to attach the...
Page 8
EN Position the other foot on the right leg. There are pins to Use four screws to attach the foot to the right leg. Tighten Roll the stand assembly into its upright position. Attach the left stand spa...
Page 9
EN Attach the printer engine to the stand JA スタンドへのプリンタ エンジン の取り付け 将打印机引擎连接到底座 將印表機引擎裝到機架上 KO 스탠드에 프린터 엔진 연결 ID Pasang mesin printer ke dudukan EN Attach the right stand spacer to the top of the right...
Page 10
Pull open the protective plastic from the base of the printer Lift the stand assembly onto the printer engine. The anti- Use one screw to attach the right side of the stand to the Use two screws to at...
Page 11
Place the spare box and the comsumables box against Rotate the printer onto the spare box and the consumables Rotate the printer until the back of the printer rests on the Remove the pallet before lif...
Page 12
EN Assemble the take-up reel JA 巻き取りリールの組み立て 组装卷纸收纸器 組裝捲紙軸 KO 출력물 되감개 조립 ID Memasang reel pengambil Use the hand holds at the rear of the printer engine Remove the two foam end-packs, and then remove ...
Page 13
EN Identify the four holes on the inside of the right Locate the bag of screws that is included in the Insert two screws into the two front holes. Attach the take-up reel motor to the two screws, leg....
Page 14
EN Use two screws to attach the rear of the take-up reel motor Use the serie plug to connect the take-up reel motor to the Identify the three holes on the inside of the left leg. The Insert two screws...
Page 15
EN Attach the left side of the take-up reel assembly to the two Use one screw to attach the rear of the left side assembly, Use four screws to attach the take-up reel deflector At the back of the prin...
Page 16
EN At the back of the printer, place the 2nd bar with the label IMPORTANT Move the printer to its final location. Once the Move the front right wheel so that it faces forward (B), and Slide the foot s...
Page 17
EN Attach the cross-brace sensor unit onto the left side of the Connect the sensor cable to the rear of the take-up reel Use the clips provided to attach the sensor cable to the Remove the take-up ree...
Page 18
EN Attach the take-up reel loading table by inserting the left Attach the grounding cable to the metal plate installed Carefully lift the central core tube. The central core tube Remove the take-up re...
Page 19
EN Slide the black hub onto the spindle up to the first mark. Tighten the plastic nut on the black hub. Loosen the plastic nut on the blue hub. Slide the blue hub onto the spindle. Tighten the plastic...
Page 20
EN Unpack more components JA その他のコンポーネントの開梱 打开其他组件的包装 取出其他組件 KO 추가 구성 요소 포장 풀기 ID Membuka kemasan komponen lain EN Raise the take-up reel deflector to its upright position. Unlock the take-up reel by ...
Page 21
Remove the protective covering from the printer window Remove the packing tapes marked 1 to 7 from the exterior Open the printer window, and then remove the packing Remove the packing tape (1), then r...
Page 22
EN Install the ink supplies JA インク サプライ品の取り付け 安装墨水耗材 安裝墨水耗材 KO 잉크 소모품 설치 ID Memasang persediaan tinta EN Plug the Gigabit Ethernet cable into the Gigabit Ethernet Pass the Gigabit Ethernet cable throu...
Page 23
EN Turn the Power switch to the On position at the rear of the If the power light on the front panel remains off, press the Wait until this message appears on the front panel (~1 Wait until the Custom...
Page 24
Use the Up and Down buttons to highlight your answer, then Select your region and press OK to continue. Your region appears highlighted on the map for A message appears to inform you about supported i...
Page 25
EN Wait until this message appears. The front panel guides To release the ink cartridge drawer, gently pull down on the Shake the ink cartridge vigorously for about 15 seconds. Be Place the ink cartri...
Page 26
Push the ink cartridge drawer back into the printer until the Do not to open the printer window until the ink cartridges The printer “beeps” when the cartridge is correctly installed. Follow the same ...
Page 27
Open the printer window, and then remove the packing Remove the packing tape that is holding down the Pull up and release the blue latch on top of the carriage Remove the big yellow label that covers ...
Page 28
Open the window. When the above question on the front panel of your printer, Open window and printhead cover to access printheads. Lower the blue latch to close the printhead cover. you must follow st...
Page 29
Select: Wait until this message appears on the front panel. Pull open the maintenance cartridge door, which is located Remove the transparent shipping tray. P All with some ink on the right side of th...
Page 30
Wait until this message appears on the front panel (about Remove all the setup purgers. Remove the two protective covers on the new printhead. Lower all of the printheads vertically into their correct...
Page 31
EN Make sure that the printheads are correctly seated. When If a “Reseat” message appears on the front panel, check Close the carriage assembly cover. Make sure that the blue latch is correctly engage...
Page 32
88Load the paper JA 用紙の取り付け 装入纸张 裝入紙張 KO 용지 넣기 ID Isikan kertas EN Close the printer window. Wait until the Ready for paper message appears on the Select the altitude where the printer is located. To ...
Page 33
EN Lift the spindle lock lever. Remove the spindle from the printer. Unlock and remove the blue hub from the left end of the Place a roll of paper in the middle of the take up reel spindle. Keep the s...
Page 34
EN Make sure that the black hub on the right side of the The right hub of the spindle has two positions: one for rolls Slide the blue hub onto the spindle. Make sure that the With the blue hub on the ...
Page 35
From the front panel, select the paper icon and then press Select Load roll and then press the OK button. Insert the lead-edge of the paper into the printer, above Confim the type and length of the pa...
Page 36
Macintosh* Windows** EN On the front panel, select the paper type and paper length The printer automatically aligns the printheads and performs a color Please do not try to stop the paper advance; it ...
Page 37
Note for MAC & Windows: Mac および Windows コンピュータがインターネットに接続されていることを Make sure your computer is connected to the Internet. Do not connect the computer to the printer yet. You must first install the p...
Manual Details
| Brand | HP |
|---|---|
| Pages | 37 |
| File Size | 9.85 MB |
| Published | May 29, 2026 |
67 views
Enter the captcha to get the download link:
Frequently Asked Questions
What is the minimum clear space required for assembly?
The assembly requires a total of 3m (10 feet) in front, and at least 1m (3.5 feet) on the sides and rear.
How long does it take to assemble the printer?
Assembly takes approximately 160 minutes.
What should I do before connecting the computer to the printer?
You must first install the correct printer driver software onto your computer.
