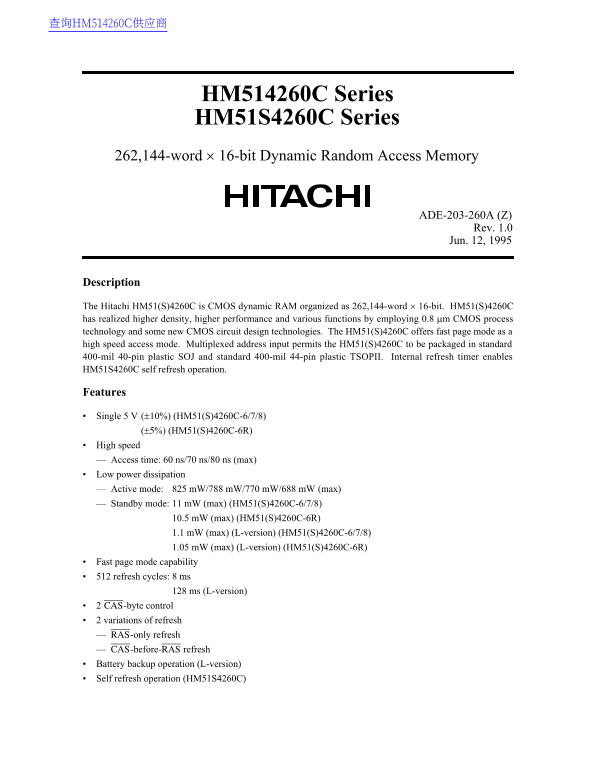

查询HM514260C供应商 HM514260C Series HM51S4260C Series 262,144-word × 16-bit Dynamic Random Access Memory ADE-203-260A (Z) Rev. 1.0 Jun. 12, 1995 Description The Hitachi HM51(S)4260C is CMOS dynamic RAM or...
Page 2
HM514260C, HM51S4260C Series Ordering Information Type No. Access Time Package HM514260CJ-6 60 ns 400-mill 40-pin plastic SOJ (CP-40DA) HM514260CJ-6R 60 ns HM514260CJ-7 70 ns HM514260CJ-8 80 ns HM5142...
Page 3
HM514260C, HM51S4260C Series Pin Arrangement HM514260CJ/CLJ Series HM514260CTT/CLTT Series HM51S4260CJ/CLJ Series HM51S4260CTT/CLTT Series CC SS CC SS CC SS CC SS I/O7 I/O8 NC NC NC LCAS NC NC WE UCAS...
Page 4
HM514260C, HM51S4260C Series Block Diagram em or rr ay at em or rr ay at I/O us ol um ec od er I/O us ol um ec od er em or rr ay at em or rr ay at em or rr ay at em or rr ay at I/O us ol um ec od er I...
Page 5
HM514260C, HM51S4260C Series Operation Mode The HM51(S)4260C series has the following 11 operation modes. 1. Read cycle 2. Early write cycle 3. Delayed write cycle 4. Read- modify-write cycle 5. RAS-o...
Page 6
HM514260C, HM51S4260C Series Absolute Maximum Ratings Parameter Symbol Value Unit Voltage on any pin relative to VSS VT –1.0 to +7.0 Supply voltage relative to VSS VCC –1.0 to +7.0 Short circuit outpu...
Page 7
HM514260C, HM51S4260C Series DC Characteristics (Ta = 0 to 70°C, VCC = 5 V ±5%, VSS = 0 V) (HM51(S)4260C-6R) (Ta = 0 to 70°C, VCC = 5 V ±10%, VSS = 0 V) (HM51(S)4260C-6/7/8) HM514260C, HM51S4260C -6/-...
Page 8
HM514260C, HM51S4260C Series DC Characteristics (Ta = 0 to 70°C, VCC = 5 V ±5%, VSS = 0 V) (HM51(S)4260C-6R) (Ta = 0 to 70°C, VCC = 5 V ±10%, VSS = 0 V) (HM51(S)4260C-6/7/8) (cont) HM514260C, HM51S426...
Page 9
HM514260C, HM51S4260C Series AC Characteristics (Ta = 0 to 70°C, VCC = 5 V ±5%, VSS = 0 V) (HM51(S)4260C-6R)*1, *14, *15, *17, *18 (Ta = 0 to 70°C, VCC = 5 V ±10%, VSS = 0 V) (HM51(S)4260C-6/7/8)*1, *...
Page 10
HM514260C, HM51S4260C Series Read Cycle HM514260C, HM51S4260C -6/-6R -7 -8 Parameter Symbol Min Max Min Max Min Max Unit Notes Access time from RAS t RAC ns 2, 3 Access time from CAS t CAC ns 3, 4, Ac...
Page 11
HM514260C, HM51S4260C Series Read-Modify-Write Cycle HM514260C, HM51S4260C -6/-6R -7 -8 Parameter Symbol Min Max Min Max Min Max Unit Notes Read-modify-write cycle time t RWC ns RAS to WE delay time t...
Page 12
HM514260C, HM51S4260C Series Self refresh Mode HM51S4260C -6/-6R -7 -8 Parameter Symbol Min Max Min Max Min Max Unit Notes RAS pulse width (self refresh) t RASS µs 24, 25, RAS precharge time (self ref...
Page 13
HM514260C, HM51S4260C Series 22. t CPN and t CP are determined by the time that both UCAS and LCAS are high. 23. When output buffers are enabled once, sustain the low impedance state until valid data ...
Page 14
HM514260C, HM51S4260C Series Notes concerning 2CAS control Please do not separate the UCAS/LCAS operation timing intentionally. However skew between UCAS/LCAS are allowed under the following condition...
Page 15
HM514260C, HM51S4260C Series Timing Waveforms*27 Read Cycle t RC t RAS t T t RSH t CAS t CRP t RCD t CSH UCAS LCAS t ASR t RAD t RAL t CAH t ASC RAH Address Row Column t RCS t RCH t RRH t AA t OFF1 Hi...
Page 16
HM514260C, HM51S4260C Series Early Write Cycle t RC t RAS RAS t RP t RSH t RCD t CAS t CRP t CSH UCAS LCAS t ASR CAHt ASCt RAH Address Row Column t WCS WCH t DS t DH Din Din High-Z OE : H or L
Page 17
HM514260C, HM51S4260C Series Delayed Write Cycle t RC t RAS t RP t CSH t CRP t RCD t RSH UCAS t CAS t ASR t ASC t CWL t RWL t RAH t CAH Address Row Column t RCS t WP Din Din t DZC t OEH t ODD t DZO Hi...
Page 18
HM514260C, HM51S4260C Series Read-Modify-Write Cycle t RWC t CRP t RCD UCAS LCAS t RAD t ASR t ASC t RAH t CAH Address Row Column t CWL t RCS t CWD t RWL t AWD WE t AA t RWD t CAC t DH t RAC t DZC Hig...
Page 19
HM514260C, HM51S4260C Series RAS-Only Refresh Cycle t RAS t RP t T t CRP t CRP t RPC UCAS LCAS t RAH t ASR Address Row High-Z OE, WE : H or L Refresh address : A0 – A8 (AX0 – AX8)
Page 20
HM514260C, HM51S4260C Series CAS-Before-RAS Refresh Cycle t RC t RC t RP t RAS t RP t RAS RP t RPC t RPC t CRP t CPN t CSR t CHR t CPN t CSR t CHR UCAS LCAS Address t OFF1 High-Z WE : H or L Do not ex...
Page 21
HM514260C, HM51S4260C Series Fast Page Mode Read Cycle t RASC t RP t RHCP RAS t T t CRP t CSH t PC t CASt CPt CASt CPt CASt RCD UCAS LCAS t RAD t CAH t CAH t ASC t ASR t RAH t ASC t ASC t CAH Address ...
Page 22
HM514260C, HM51S4260C Series Fast Page Mode Early Write Cycle t RASC t RP t CSH t PC RSH t CRPt CASt CPt CASt CPt CASt RCD UCAS LCAS t ASC t CAH t ASC t CAH t ASR t RAH t ASC t CAH Address Row Column ...
Page 23
HM514260C, HM51S4260C Series Fast Page Mode Delayed Write Cycle t RASC t RP t CSH t RSH t T t PC t CRP t CASt RCD t CP t CAS t CP t CAS UCAS LCAS t ASR t ASC t CAH t ASC t CAH t RAH t ASC t CWL t CAH ...
Page 24
HM514260C, HM51S4260C Series Fast Page Mode Read-Modify-Write Cycle t RASC t RP t RCD t PCM tt CP CRP t RAD t RAH t CAH t ASR CAH CAHt t ASC ASC Address Column Column Column Row CWL tt CPWtt CWL AWD C...
Page 25
HM514260C, HM51S4260C Series Self Refresh Cycle t RP t RASS t RPC t CRP t CPN t CSR t CHS UCAS LCAS Address t OFF1 High-Z WE, OE : H or L The low self refresh current is achieved by introducing extrem...
Page 26
HM514260C, HM51S4260C Series Package Dimensions HM51(S)4260CJ/CLJ Series (CP-40DA) Unit: mm 25.80 26.16 Max 1.30 Max
Page 27
HM514260C, HM51S4260C Series HM51(S)4260CTT/CLTT Series (TTP44/40DB) Unit: mm 18.41 18.81 Max 1. ax 1.005 Max
