Hewlett-Packard HP DesignJet T920 Printer Series - DesignJet T900 and T1500 Printer Series - Assembly Instructions

Summary

This comprehensive manual provides essential assembly and setup instructions for the HP DesignJet T900 and T1500 large format printers. It guides users through every step of installation, detailing how to correctly connect core components like printheads, ink cartridges, power cords, and optional accessories such as stackers and baskets. Designed for technicians or advanced end-users, this guide ensures a smooth, secure setup process—including instructions on activating professional network features through HP Connected—for optimal printing performance right out of the box.

📄 Preview ‹ PAGE OF 28 ›

‹

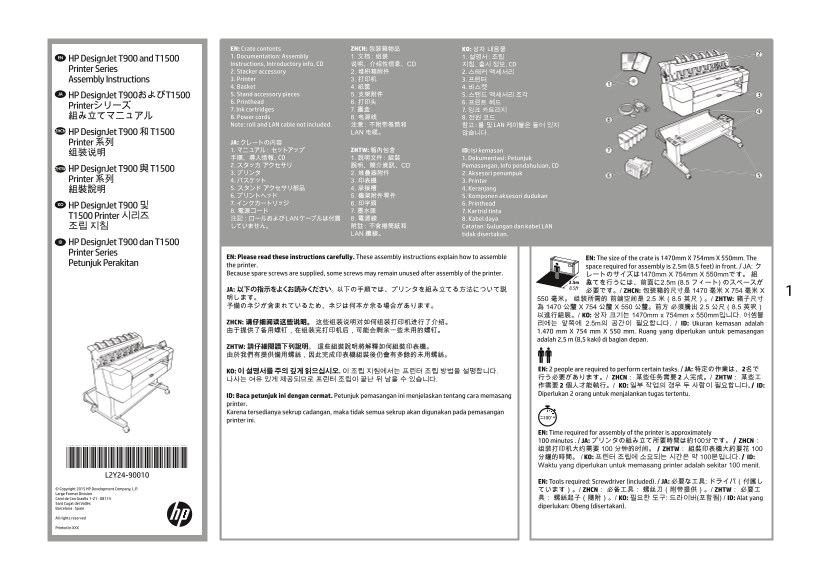

Hewlett-Packard HP DesignJet T920 Printer Series - DesignJet T900 and T1500 Printer Series - Assembly Instructions - Page 1

›

Page 1 Text Content

EN: Crate contents ZHCN: 包装箱物品 KO: 상자 내용물

EN 1. Documentation: Assembly 1. 文档：组装 1. 설명서: 조립

HP Design Jet T900 and T1500

Instructions, Introductory info, CD 说明、介绍性信息、CD 지침, 출시 정보, CD

Printer Series 2. Stacker accessory 2. 堆积箱附件

Assembly Instructions 3. Printer 3. 打印机 3. 프린터 4. Basket 4. 纸筐 4. 바스켓

JA 5. Stand accessory pieces 5. 支架附件 5. 스탠드 액세서리 조각 HP Design Jet T900およびT1500

6. Printhead 6. 打印头 6. 프린트 헤드

Printerシリーズ

7. Ink cartridges 7. 墨盒 7. 잉크 카트리지 組み立てマニュアル 8. Power cords 8. 电源线 8. 전원 코드 Note: roll and LAN cable not included. 注意：不附带卷筒和 참고 : 롤 및 LAN 케이블은 들어 있지

HP Design Jet T900 和 T1500 LAN 电缆。 않습니다.

Printer 系列 JA: クレートの内容

1. マニュアル：セットアップ ZHTW: 箱內包含 ID: Isi kemasan

手順、導入情報、CD 1. 說明文件：組裝 1. Dokumentasi: Petunjuk

2. スタッカアクセサリ說明、簡介資訊、CD Pemasangan, Info pendahuluan, CD

ZHTW HP Design Jet T900 與 T1500

3. プリンタ 2. 堆疊器附件 2. Aksesori penumpuk

Printer 系列 4. バスケット 3. 印表機 3. Printer

5. スタンドアクセサリ部品 4. 承接槽 4. Keranjang

6. プリントヘッド 5. 機架附件零件 5. Komponen aksesori dudukan KO 7. インクカートリッジ 6. 印字頭 6. Printhead

HP Design Jet T900 및

8. 電源コード 7. 墨水匣 7. Kartrid tinta

T1500 Printer 시리즈 注記：ロールおよびLANケーブルは付属 8. 電源線 8. Kabel daya

조립 지침 していません。附註：不含捲筒紙和 Catatan: Gulungan dan kabel LAN LAN 纜線。 tidak disertakan.

ID HP Design Jet T900 dan T1500 Printer Series

EN: Please read these instructions carefully. These assembly instructions explain how to assemble EN: The size of the crate is 1470mm X 754mm X 550mm. The

Petunjuk Perakitan the printer.

space required for assembly is 2.5m (8.5 feet) in front. / JA: ク

Because spare screws are supplied, some screws may remain unused after assembly of the printer. レートのサイズは1470mm X 754mm X 550mmです。組

2.5m み立てを行うには、前面に2.5m (8.5 フィート) のスペースが 8.5ft

JA: 以下の指示をよくお読みください。以下の手順では、プリンタを組み立てる方法について説必要です。/ ZHCN: 包装箱的尺寸是 1470 毫米 X 754 毫米 X 明します。 550 毫米。组装所需的前端空间是 2.5 米（8.5 英尺）。/ ZHTW: 箱子尺寸予備のネジが含まれているため、ネジは何本か余る場合があります。為 1470 公釐 X 754 公釐 X 550 公釐。前方必須騰出 2.5 公尺（8.5 英呎）

以進行組裝。/ KO: 상자 크기는 1470mm x 754mm x 550mm입니다. 어셈블

ZHCN: 请仔细阅读这些说明。这些组装说明对如何组装打印机进行了介绍。 리에는 앞쪽에 2.5m의 공간이 필요합니다. / ID: Ukuran kemasan adalah 由于提供了备用螺钉，在组装完打印机后，可能会剩余一些未用的螺钉。 1.470 mm X 754 mm X 550 mm. Ruang yang diperlukan untuk pemasangan

adalah 2,5 m (8,5 kaki) di bagian depan.

ZHTW: 請仔細閱讀下列說明。這些組裝說明將解釋如何組裝印表機。由於我們有提供備用螺絲，因此完成印表機組裝後仍會有多餘的未用螺絲。

EN: 2 people are required to perform certain tasks. / JA: 特定の作業は、2名で

KO: 이 설명서를 주의 깊게 읽으십시오. 이 조립 지침에서는 프린터 조립 방법을 설명합니다.

行う必要があります。/ ZHCN：某些任务需要 2 人完成。/ ZHTW：某些工

作需要 2 個人才能執行。/ KO: 일부 작업의 경우 두 사람이 필요합니다. / ID: Diperlukan 2 orang untuk menjalankan tugas tertentu.

ID: Baca petunjuk ini dengan cermat. Petunjuk pemasangan ini menjelaskan tentang cara memasang printer. Karena tersedianya sekrup cadangan, maka tidak semua sekrup akan digunakan pada pemasangan

printer ini.

EN: Time required for assembly of the printer is approximately 100 minutes . / JA: プリンタの組み立て所要時間は約100分です。 / ZHCN：组装打印机大约需要 100 分钟的时间。 / ZHTW：組裝印表機大約要花 100 *L2Y24-90010* 分鐘的時間。 / KO: 프린터 조립에 소요되는 시간은 약 100분입니다. / ID: Waktu yang diperlukan untuk memasang printer adalah sekitar 100 menit.

EN: Tools required: Screwdriver (included). / JA: 必要な工具: ドライバ（付属し

© Copyright 2015 HP Development Company, L.P. ています）。/ ZHCN：必备工具：螺丝刀（附带提供）。/ ZHTW：必要工 Large Format Division Camí de Can Graells 1-21 · 08174 具：螺絲起子（隨附）。/ KO: 필요한 도구: 드라이버(포함됨) / ID: Alat yang Sant Cugat del Vallès

Barcelona · Spain diperlukan: Obeng (disertakan).

Printed in XXX

Page Summary Contents For Hewlett-Packard HP DesignJet T920 Printer Series - DesignJet T900 and T1500 Printer Series - Assembly Instructions

Page 1 EN: Crate contents ZHCN: 包装箱物品 KO: 상자 내용물 EN 1. Documentation: Assembly 1. 文档：组装 1. 설명서: 조립 HP Design Jet T900 and T1500 Instructions, Introductory info, CD 说明、介绍性信息、CD 지침, 출시 정보, CD Printer Series 2...

Page 2 EN Open the box JA 箱を開く ZHCN 打开包装箱 ZHTW 打開箱子 KO 상자 열기 ID Membuka kemasan EN Remove the components tray. Remove the stacker arm and the two packing pieces. Remove the 4 carton corner pieces. IMPORTANT:...

Page 3 EN Slide the box forward on the pallet to create a space. Carefully roll the box 180° onto the floor. Remove the wooden pallet. Cut the straps and remove the box lid. JA 箱をパレット上で前方にスライドさせて、スペース床で箱をゆっ...

Page 4 EN Assemble the stand JA スタンドの組み立て ZHCN 组装支架 ZHTW 組裝機架 KO 스탠드 조립 ID Memasang dudukan EN Remove the filament tapes, the tapes, and then the end Remove the tape, and open the plastic covering. Remove th...

Page 5 EN Locate the stand pieces: Place the crossbar on the floor; with the green rectangle Slot the two legs onto the crossbar. Fix the crossbar to the left leg with 5 screws, do not 1. Left leg / 2. Baske...

Page 6 EN Fix the crossbar to the right leg with 5 screws, do not Fully tighten all 10 screws: left and right. Turn the stand 180° into the upright position. tighten them fully yet. JA 5本のネジで右脚部にクロスバーを固定します。...

Page 7 EN Attach the printer body to the stand assembly JA スタンドアセンブリへのプリンタ本体の取り付け ZHCN 将打印机主体连接到支架组件 ZHTW 將印表機機身裝到機架組件上 KO 프린터 본체를 스탠드 어셈블리 에 장착합니다 ID Pasang badan printer ke unit dudukan x2 EN Attach the ...

Page 8 EN Remove the packaging x2 JA パッケージの開梱 90° ZHCN 拆开包装 ZHTW 移除包裝 KO 포장 제거 ID Membuka kemasan EN Rotate the printer 90°. Rotate the printer 90° into the upright position. Remove the orange tapes and unlo...

Page 9 EN Remove the box. Remove the 2 end caps. Remove the plastic cover. Remove all the orange tapes. JA ボックスを取り外します。 2個のエンドキャップを取り外します。プラスチックのカバーを取り外します。オレンジ色のテープをすべて取り外します。 ZHCN 卸下电线盒。卸下 2 个护罩。拆除塑料盖...

Page 10 EN Remove the screws from the stacker. Unfold the stacker. Fix the stacker with 2 stacker screws. Remove the carton piece and attach the stacker cover by pushing it into place. ID Buka lapisan karton ...

Page 11 EN Open the printer cover (1) and remove the carton piece IMPORTANT: in the following step you must remove Carefully remove the carriage retainer without Close the window. (2). the carriage retainter;...

Page 12 EN Assemble the basket JA バスケットの取り付け ZHCN 装配纸筐 ZHTW 組裝承接槽 KO 바스켓 조립 ID Memasang keranjang EN Locate the basket pieces and connect the 2 elbows. Slot the basket arms into the feet until they click into...

Page 13 EN Slot the bar through the basket. Slot the basket into place. Make sure the basket is open; this indicates the amount Unlock the wheels. of distance required at the back of the printer from a wall o...

Page 14 EN Set up the printer JA プリンタをセットアップする ZHCN 设置打印机 ZHTW 設定印表機 KO 프린터 설치 ID Membuat pengaturan awal printer EN Move the printer to its final destination. IMPORTANT: Attach the cables into the clamps: ro...

Page 15 EN Note: make sure that the cables do not hang out in order IMPORTANT: Connect the LAN and power cable. Switch Select your language on the touch screen, and confirm it. The front panel will ask you to...

Page 16 EN Open the ink cartridge covers (left and right). Shake all the ink cartridges. Insert the ink cartridges: black, gray, and matte black on Close the ink cartridge covers (left and right). the left, c...

Page 17 EN The printer will now prepare the ink system for use. When prompted, open the window. Lift up the printhead cover handle. Pull the blue handle up as far as it will go. When the process finishes a me...

Page 18 EN Open the printhead cover by pulling the handle down. Remove the orange caps from inside the carriage. Insert the printhead. Check the printhead is correctly alligned. Note: do not insert the nozzle...

Page 19 EN Lift the printhead cover handle. Push the handle down to clip the cover to the bar. Pull the handle down to close the cover. Push down to close the cover completely. JA プリントヘッドカバーハンドルを持ち上げます。ハンド...

Page 20 EN Load the paper JA 用紙の取り付け ZHCN 装入纸张 ZHTW 裝入紙張 KO 용지 넣기 ID Isikan kertas EN Close the window and press OK. The tubes will now fill. This will take about 10 minutes; Push the latch, and open the uppe...

Page 21 EN Remove the spindle and remove the orange tape and Unlock (1), and remove the blue hub (2). Load the paper (1), replace, and lock the blue hub (2). Replace the spindle. carton piece. JA 用紙を取り付け (1)、...

Page 22 EN Insert the paper edge into the printer. Feed the paper into the printer. Roll the paper in. T1500 Series only: follow steps 68 - 75 for the 2nd roll. JA 用紙の端をプリンタに差し込みます。プリンタに用紙を挿入します。用紙を巻き取ります。 ...

Page 23 EN When the roll/rolls are loaded, the printer will align the printheads. This process involves printing, and needs the paper MAC users only: for full control of this Design Jet to have a straight lea...

Page 24 HP e Print: Enable email printing 1. Make sure that your printer is correctly connected to the Internet. 79EN 2.Enable Web Services during initial setup of the printer, or later following the instruct...

Page 25 EN A screen appears explaining what steps you will Your network configuration connectivity will now be Print from your smartphone or tablet need to complete, click ´Continue´. verified, click ´Check´....

Page 26 EN Install the product software from the DVD that came with your Printer onto your computer. Be sure to follow the software installation instructions. For USB connections: Connecting your product befo...

Page 27 EN Optional: Managing printer security in the HP Connected. When you enable web services the printer is in unlock mode meaning everyone who knows the printer’s email address can print. If you are the ...

Page 28 Legal notices © Copyright 2015 HP Development Company, L.P. The information contained herein is subject to change without no- tice. The only warranties for HP products and services are set forth in th...
