Fairchild NC7SP08 TinyLogic ULP 2-input AND gate in SC70 and MicroPak packages, operating from 0.9V to 3.6V with 3.6V tolerant I/Os. Features propagation delays from 2.5ns to 27ns, Quiet Series noise reduction, and high-impedance power-off I/Os. Designed for battery-powered portable electronics designers optimizing power in handheld and wearable devices.

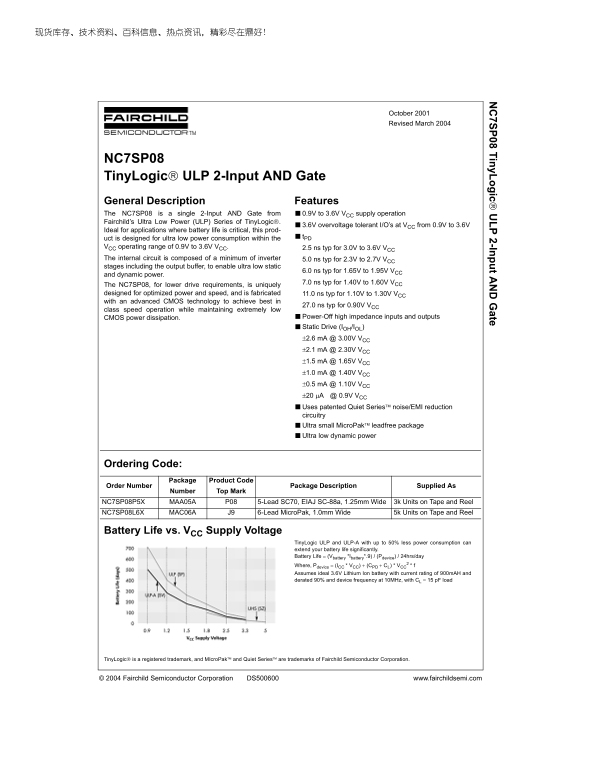

Page 1 Text Content
7S 08 Tin y L ic 2-In t A ate
October 2001 Revised March 2004
NC7SP08 Tiny Logic ULP 2-Input AND Gate General Description Features The NC7SP08 is a single 2-Input AND Gate from ■0.9V to 3.6V VCC supply operation Fairchild’s Ultra Low Power (ULP) Series of Tiny Logic.
■3.6V overvoltage tolerant I/O’s at VCC from 0.9V to 3.6V
Ideal for applications where battery life is critical, this prod-
uct is designed for ultra low power consumption within the t PD
VCC operating range of 0.9V to 3.6V VCC. 2.5 ns typ for 3.0V to 3.6V VCC The internal circuit is composed of a minimum of inverter 5.0 ns typ for 2.3V to 2.7V VCC stages including the output buffer, to enable ultra low static
6.0 ns typ for 1.65V to 1.95V VCC
and dynamic power.
7.0 ns typ for 1.40V to 1.60V VCC
The NC7SP08, for lower drive requirements, is uniquely designed for optimized power and speed, and is fabricated 11.0 ns typ for 1.10V to 1.30V VCC with an advanced CMOS technology to achieve best in
27.0 ns typ for 0.90V VCC
class speed operation while maintaining extremely low
CMOS power dissipation. ■Power-Off high impedance inputs and outputs ■Static Drive (IOH/IOL) ±2.6 m A @ 3.00V VCC ±2.1 m A @ 2.30V VCC ±1.5 m A @ 1.65V VCC ±1.0 m A @ 1.40V VCC ±0.5 m A @ 1.10V VCC ±20 µA @ 0.9V VCC ■Uses patented Quiet Series noise/EMI reduction circuitry ■Ultra small Micro Pak leadfree package ■Ultra low dynamic power
Ordering Code:
Package Product Code
Order Number Package Description Supplied As
Number Top Mark
NC7SP08P5X MAA05A P08 5-Lead SC70, EIAJ SC-88a, 1.25mm Wide 3k Units on Tape and Reel NC7SP08L6X MAC06A J9 6-Lead Micro Pak, 1.0mm Wide 5k Units on Tape and Reel
Battery Life vs. VCC Supply Voltage
Tiny Logic ULP and ULP-A with up to 50% less power consumption can extend your battery life significantly. Battery Life = (Vbattery *Ibattery*.9) / (Pdevice) / 24hrs/day
Where, Pdevice = (ICC * VCC) + (CPD + CL) * VCC Assumes ideal 3.6V Lithium Ion battery with current rating of 900m AH and derated 90% and device frequency at 10MHz, with CL = 15 p F load
Tiny Logic is a registered trademark, and MIcro Pak and Quiet Series are trademarks of Fairchild Semiconductor Corporation.
© 2004 Fairchild Semiconductor Corporation DS500600 www.fairchildsemi.com
Page Summary Contents For Fairchild NC7SP08 TinyLogic ULP 2-Input AND Gate User's Manual
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 9 |
| File Size | 308.95 KB |
| Published | June 17, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the supply voltage range for the NC7SP08?
The recommended operating supply voltage range is 0.9V to 3.6V.
What is the output of the NC7SP08 when both inputs are HIGH?
When both inputs A and B are HIGH, the output Y is HIGH.
What package options are available for the NC7SP08?
It is available in 5-Lead SC70 and 6-Lead MicroPak packages.
What is the typical propagation delay at 3.0V to 3.6V VCC?
The typical propagation delay is 2.5 ns for 3.0V to 3.6V VCC.
