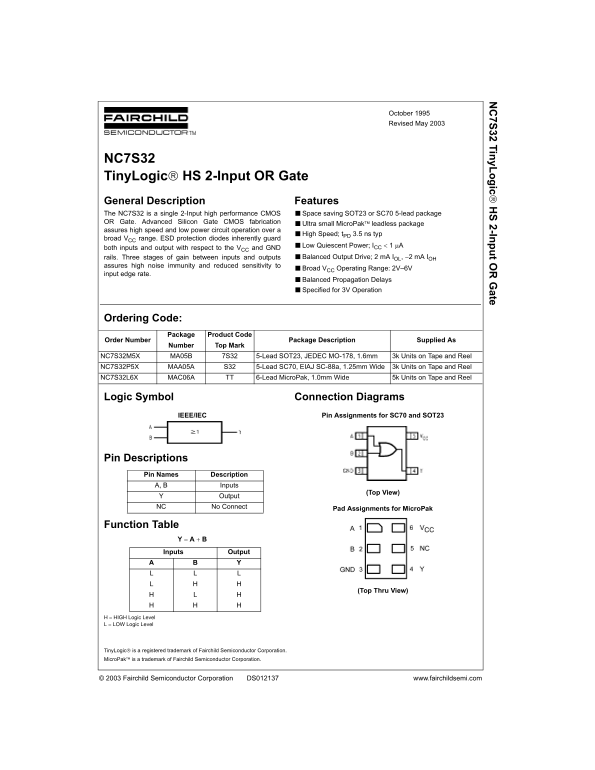

Fairchild NC7S32 TinyLogic HS 2-Input OR Gate User Manual

7S 32 Tin y L ic 2-In t O ate

October 1995 Revised May 2003

NC7S32 Tiny Logic HS 2-Input OR Gate General Description Features The NC7S32 is a single 2-Input high performance CMOS ■Space saving SOT23 or SC70 5-lead package OR Gate. Advanced Silicon Gate CMOS fabrication

■Ultra small Micro Pak leadless package

assures high speed and low power circuit operation over a

■High Speed; t PD 3.5 ns typ

broad VCC range. ESD protection diodes inherently guard

■Low Quiescent Power; ICC < 1 µA

both inputs and output with respect to the VCC and GND

rails. Three stages of gain between inputs and outputs ■Balanced Output Drive; 2 m A IOL, −2 m A IOH

assures high noise immunity and reduced sensitivity to

■Broad VCC Operating Range: 2V–6V

input edge rate.

■Balanced Propagation Delays ■Specified for 3V Operation

Ordering Code:

Package Product Code

Order Number Package Description Supplied As

Number Top Mark

NC7S32M5X MA05B 7S32 5-Lead SOT23, JEDEC MO-178, 1.6mm 3k Units on Tape and Reel NC7S32P5X MAA05A S32 5-Lead SC70, EIAJ SC-88a, 1.25mm Wide 3k Units on Tape and Reel NC7S32L6X MAC06A TT 6-Lead Micro Pak, 1.0mm Wide 5k Units on Tape and Reel

Logic Symbol Connection Diagrams

IEEE/IEC Pin Assignments for SC70 and SOT23

Pin Descriptions

Pin Names Description A, B Inputs

(Top View)

Output

NC No Connect

Pad Assignments for Micro Pak

Function Table

Inputs Output

(Top Thru View)

H = HIGH Logic Level L = LOW Logic Level

Tiny Logic is a registered trademark of Fairchild Semiconductor Corporation. Micro Pak is a trademark of Fairchild Semiconductor Corporation.

© 2003 Fairchild Semiconductor Corporation DS012137 www.fairchildsemi.com
