Fairchild MMPQ6700 Quad NPN Data Handbook
Summary
These complementary MMPQ6700 transistors serve as general-purpose amplifiers, designed to operate efficiently in switches with collector currents ranging from 10 μA to 100 mA. Ideal for applications where minimizing board space is crucial, this component features both NPN and PNP types. The accompanying datasheet provides engineers with full technical details, including comprehensive electrical characteristics, operational ratings (absolute maximums), thermal specifications, and detailed packaging guidelines for SOIC-16 surface mount assembly.

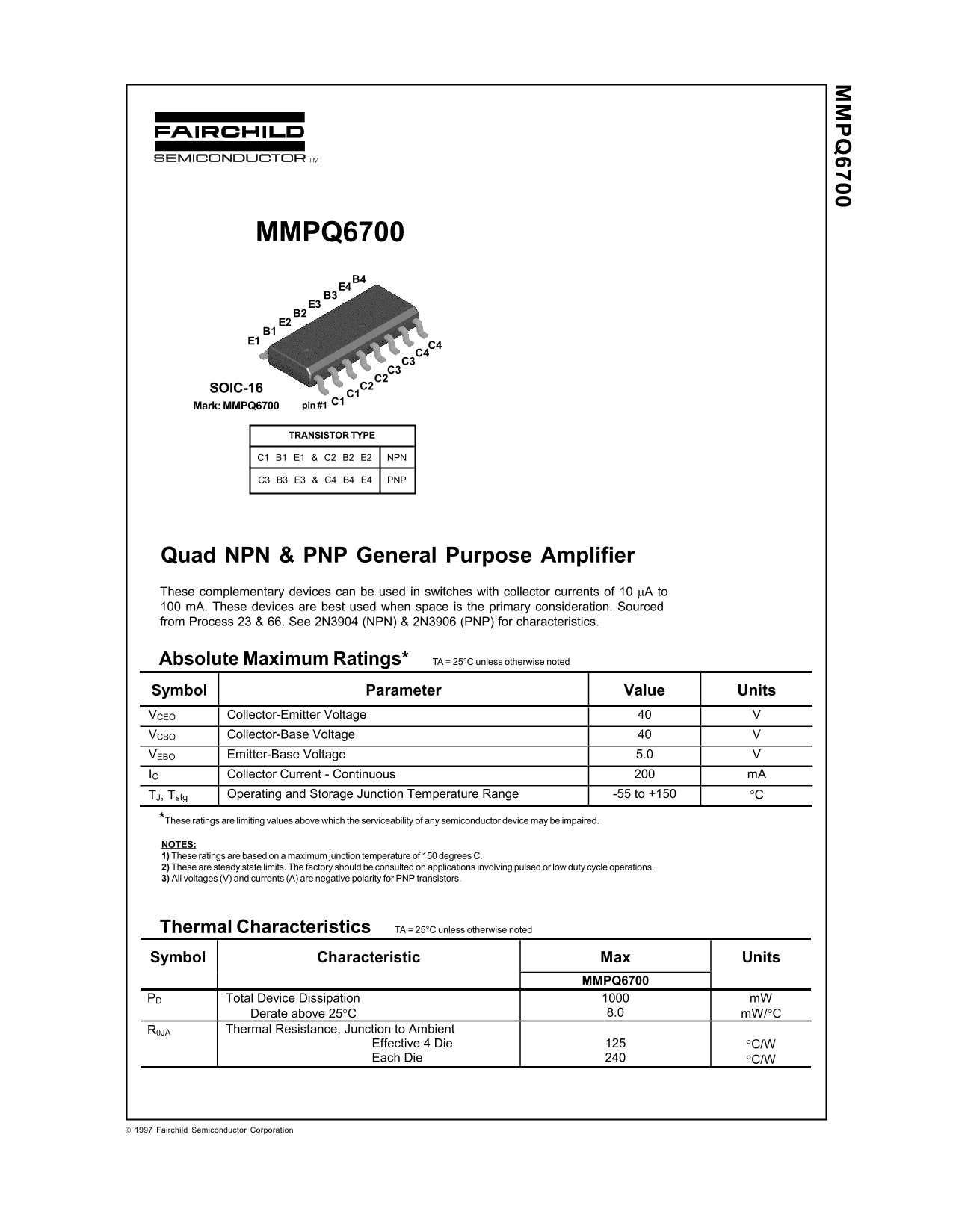

Page 1 Text Content
MMPQ6700 B4
C2 SOIC-16 C2 C1 C1
Mark: MMPQ6700 pin #1
TRANSISTOR TYPE
C1 B1 E1 & C2 B2 E2 NPN
C3 B3 E3 & C4 B4 E4 PNP
Quad NPN & PNP General Purpose Amplifier These complementary devices can be used in switches with collector currents of 10 µA to 100 m A. These devices are best used when space is the primary consideration. Sourced from Process 23 & 66. See 2N3904 (NPN) & 2N3906 (PNP) for characteristics.
Absolute Maximum Ratings* TA = 25°C unless otherwise noted Symbol Parameter Value Units VCEO Collector-Emitter Voltage VCBO Collector-Base Voltage VEBO Emitter-Base Voltage 5.0 IC Collector Current - Continuous m A
TJ, Tstg Operating and Storage Junction Temperature Range -55 to +150 °C
*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired. NOTES: 1) These ratings are based on a maximum junction temperature of 150 degrees C. 2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations. 3) All voltages (V) and currents (A) are negative polarity for PNP transistors.
Thermal Characteristics TA = 25°C unless otherwise noted Symbol Characteristic Max Units
MMPQ6700
PD Total Device Dissipation m W
Derate above 25°C 8.0 m W/°C
RθJA Thermal Resistance, Junction to Ambient
Effective 4 Die °C/W Each Die °C/W
1997 Fairchild Semiconductor Corporation
Page Summary Contents For Fairchild MMPQ6700 Quad NPN Data Handbook
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 6 |
| File Size | 191.71 KB |
| Published | July 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the acceptable current ranges for these complementary transistors?
They can be used in switches with collector currents ranging from 10 µA to 100 mA.
How should this component be handled during shipping and storage?
Electrostatically sensitive parts must not be shipped or stored near strong electrostatic, electromagnetic, magnetic, or radio-active fields.
What happens if the device operates at higher temperatures than typical?
The Total Device Dissipation can be derated by 8.0 mW/°C above 25°C.
Are these components suitable for life support applications?
Fairchild’s products are not authorized for use as critical components in life support devices without express written approval.
