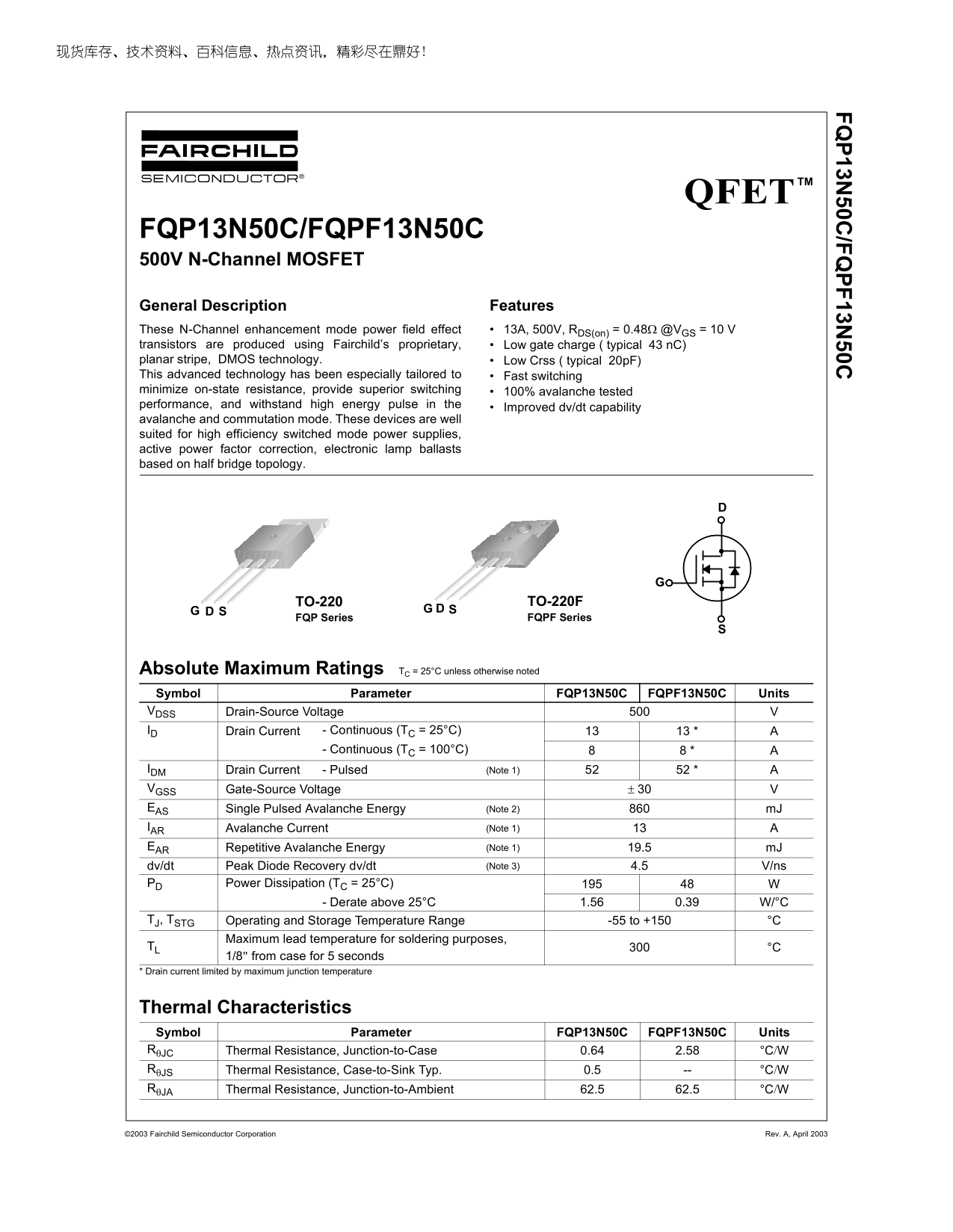

FQ P13N 50C /FQ PF13N 50C
FQP13N50C/FQPF13N50C 500V N-Channel MOSFET General Description Features These N-Channel enhancement mode power field effect 13A, 500V, RDS(on) = 0.48Ω @VGS = 10 V transistors are produced using Fairchild’s proprietary, Low gate charge ( typical 43 n C) planar stripe, DMOS technology. Low Crss ( typical 20p F) This advanced technology has been especially tailored to Fast switching minimize on-state resistance, provide superior switching 100% avalanche tested performance, and withstand high energy pulse in the
Improved dv/dt capability
avalanche and commutation mode. These devices are well suited for high efficiency switched mode power supplies, active power factor correction, electronic lamp ballasts based on half bridge topology.
TO-220 TO-220F
SD SD
FQP Series G FQPF Series
Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter FQP13N50C FQPF13N50C Units VDSS Drain-Source Voltage ID Drain Current - Continuous (TC = 25°C) 13 *
- Continuous (TC = 100°C) 8 *
IDM Drain Current - Pulsed (Note 1) 52 * VGSS Gate-Source Voltage ± 30 EAS Single Pulsed Avalanche Energy (Note 2) m J IAR Avalanche Current (Note 1) EAR Repetitive Avalanche Energy (Note 1) 19.5 m J
dv/dt Peak Diode Recovery dv/dt (Note 3) 4.5 V/ns
PD Power Dissipation (TC = 25°C)
- Derate above 25°C 1.56 0.39 W/°C
TJ, TSTG Operating and Storage Temperature Range -55 to +150 °C
Maximum lead temperature for soldering purposes,
TL °C
1/8" from case for 5 seconds
* Drain current limited by maximum junction temperature
Thermal Characteristics Symbol Parameter FQP13N50C FQPF13N50C Units RθJC Thermal Resistance, Junction-to-Case 0.64 2.58 °C/W RθJS Thermal Resistance, Case-to-Sink Typ. 0.5 °C/W RθJA Thermal Resistance, Junction-to-Ambient 62.5 62.5 °C/W
