Fairchild FFP30S60S 30A Stealth™ II Rectifier Data Handbook
Summary
The FFP30S60S is a 30A, 600V STEALTH II rectifier designed for switching power supplies and power switching circuits. Featuring soft recovery characteristics and RoHS compliance, this TO-220-2L component minimizes electrical noise and is ideal for general-purpose and boost diode applications.

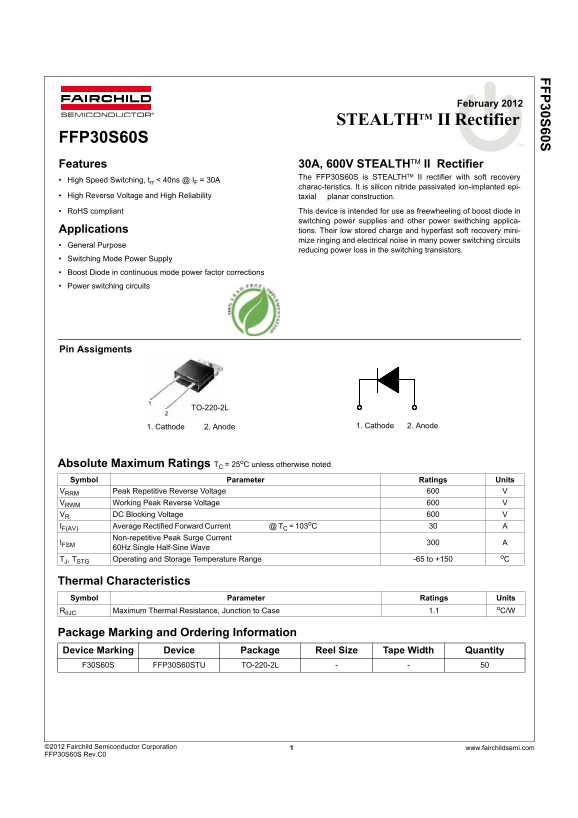

Page 1 Text Content
FFP30S60S
February 2012
STEALTH II Rectifier TM
FFP30S60S
Features 30A, 600V STEALTHTM II Rectifier
The FFP30S60S is STEALTHTM II rectifier with soft recovery
High Speed Switching, trr < 40ns @ IF = 30A
charac-teristics. It is silicon nitride passivated ion-implanted epi-
High Reverse Voltage and High Reliability taxial planar construction.
Ro HS compliant This device is intended for use as freewheeling of boost diode in switching power supplies and other power swithching applica-
Applications tions. Their low stored charge and hyperfast soft recovery mini-
mize ringing and electrical noise in many power switching circuits
General Purpose
reducing power loss in the switching transistors.
Switching Mode Power Supply
Boost Diode in continuous mode power factor corrections Power switching circuits
Pin Assigments
TO-220-2L
1. Cathode 2. Anode 1. Cathode 2. Anode
Absolute Maximum Ratings TC = 25o C unless otherwise noted Symbol Parameter Ratings Units VRRM Peak Repetitive Reverse Voltage VRWM Working Peak Reverse Voltage VR DC Blocking Voltage
IF(AV) Average Rectified Forward Current @ TC = 103o C 30 Non-repetitive Peak Surge Current
60Hz Single Half-Sine Wave 300
TJ, TSTG Operating and Storage Temperature Range -65 to +150
Thermal Characteristics Symbol Parameter Ratings Units
RθJC Maximum Thermal Resistance, Junction to Case 1.1
Package Marking and Ordering Information Device Marking Device Package Reel Size Tape Width Quantity F30S60S FFP30S60STU TO-220-2L
©2012 Fairchild Semiconductor Corporation www.fairchildsemi.com1 FFP30S60S Rev.C0
Page Summary Contents For Fairchild FFP30S60S 30A Stealth™ II Rectifier Data Handbook
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 6 |
| File Size | 506.37 KB |
| Published | June 16, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the average forward current rating?
The average rectified forward current is 30A at a case temperature of 103°C.
What are the pin assignments for the TO-220 package?
Pin 1 is the Cathode and Pin 2 is the Anode.
Is this component RoHS compliant?
Yes, the datasheet states the device is RoHS compliant.
What is the peak repetitive reverse voltage?
The peak repetitive reverse voltage (V_RRM) is 600V.
What are the main applications for this rectifier?
It is intended for use as a freewheeling or boost diode in switching power supplies, power factor correction, and general power switching circuits.
