FFPF10UA60ST Fairchild Ultra Fast II Rectifier Data Handbook
Summary
The FFPF10UA60ST is an ultra-fast, high-reliability diode rated at 10A and 600V, engineered for demanding power conversion tasks. Featuring low forward voltage and robust avalanche energy ratings, this rectifier excels in industrial switching power supplies, PFC circuits, and SMPS boost applications. The accompanying manual provides comprehensive technical documentation, including absolute maximum ratings, detailed electrical characteristics, thermal performance curves, and package specifications necessary for efficient system integration.

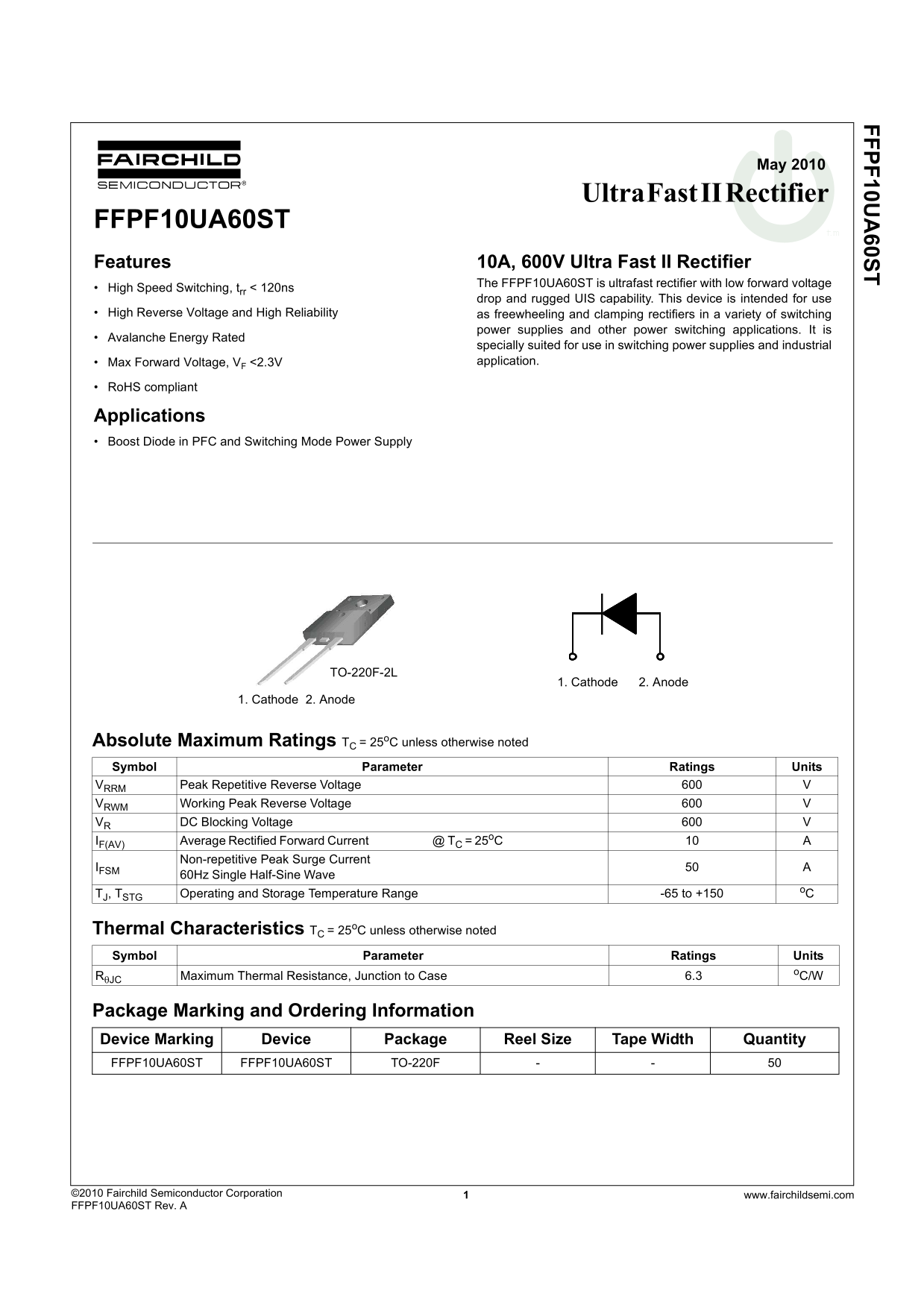

Page 1 Text Content
May 2010
Ultra Fast II Rectifier
FFPF10UA60ST
Features 10A, 600V Ultra Fast II Rectifier
The FFPF10UA60ST is ultrafast rectifier with low forward voltage
High Speed Switching, trr < 120ns
drop and rugged UIS capability. This device is intended for use
High Reverse Voltage and High Reliability as freewheeling and clamping rectifiers in a variety of switching
power supplies and other power switching applications. It is
Avalanche Energy Rated
specially suited for use in switching power supplies and industrial Max Forward Voltage, VF <2.3V application.
Ro HS compliant
Applications Boost Diode in PFC and Switching Mode Power Supply
TO-220F-2L
1. Cathode 2. Anode
1. Cathode 2. Anode
Absolute Maximum Ratings TC = 25o C unless otherwise noted Symbol Parameter Ratings Units VRRM Peak Repetitive Reverse Voltage VRWM Working Peak Reverse Voltage VR DC Blocking Voltage IF(AV) Average Rectified Forward Current @ TC = 25o C 10
Non-repetitive Peak Surge Current
60Hz Single Half-Sine Wave
TJ, TSTG Operating and Storage Temperature Range -65 to +150
Thermal Characteristics TC = 25o C unless otherwise noted Symbol Parameter Ratings Units
RθJC Maximum Thermal Resistance, Junction to Case 6.3
Package Marking and Ordering Information Device Marking Device Package Reel Size Tape Width Quantity FFPF10UA60ST FFPF10UA60ST TO-220F
©2010 Fairchild Semiconductor Corporation www.fairchildsemi.com1 FFPF10UA60ST Rev. A
Page Summary Contents For FFPF10UA60ST Fairchild Ultra Fast II Rectifier Data Handbook
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 5 |
| File Size | 346.07 KB |
| Published | July 12, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the rated reverse voltage capacity for this device?
The Peak Repetitive Reverse Voltage (RRM) and Working Peak Reverse Voltage (RWM) are both rated at 600 V.
What operating temperature range is supported by the rectifier?
The device has an operating and storage temperature range of -65 to +150 C.
In what applications is this ultrafast rectifier preferably used?
It is intended for use in high reliability switching power supplies, including Boost Diode in PFC and various general switching power applications.
What steps should I take to ensure I am using genuine components?
You must buy parts either directly from Fairchild or from Authorized Fairchild Distributors to guarantee they are genuine with full traceability.
