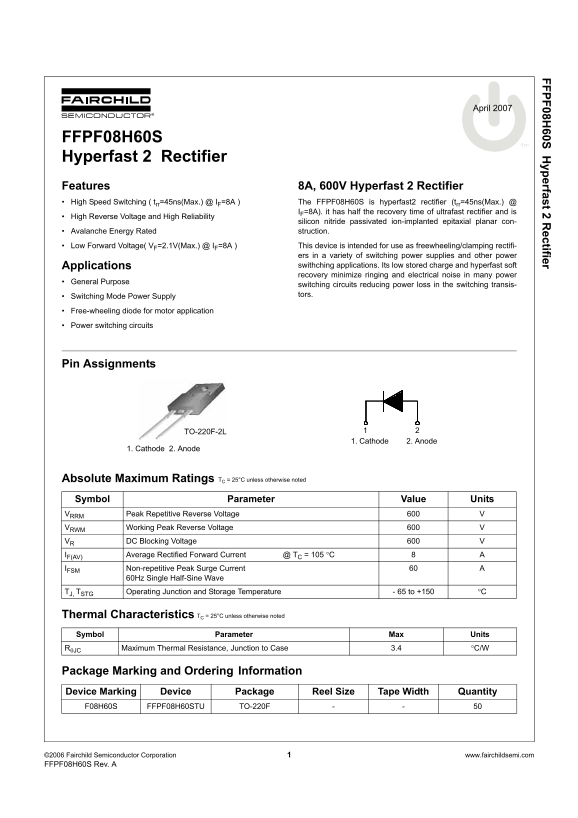

FFPF08H 60S H yperfast 2 R ectifier
April 2007
FFPF08H60S
Hyperfast 2 Rectifier Features 8A, 600V Hyperfast 2 Rectifier High Speed Switching ( trr=45ns(Max.) @ IF=8A ) The FFPF08H60S is hyperfast2 rectifier (trr=45ns(Max.) @
IF=8A). it has half the recovery time of ultrafast rectifier and is
High Reverse Voltage and High Reliability
silicon nitride passivated ion-implanted epitaxial planar con- Avalanche Energy Rated struction.
Low Forward Voltage( VF=2.1V(Max.) @ IF=8A ) This device is intended for use as freewheeling/clamping rectifi- ers in a variety of switching power supplies and other power Applications swithching applications. Its low stored charge and hyperfast soft recovery minimize ringing and electrical noise in many power
General Purpose
switching circuits reducing power loss in the switching transis- Switching Mode Power Supply tors.
Free-wheeling diode for motor application
Power switching circuits
Pin Assignments
TO-220F-2L
1. Cathode 2. Anode
1. Cathode 2. Anode
Absolute Maximum Ratings TC = 25°C unless otherwise noted
Symbol Parameter Value Units VRRM Peak Repetitive Reverse Voltage
VRWM Working Peak Reverse Voltage VR DC Blocking Voltage
IF(AV) Average Rectified Forward Current @ TC = 105 °C
IFSM Non-repetitive Peak Surge Current 60Hz Single Half-Sine Wave
TJ, TSTG Operating Junction and Storage Temperature - 65 to +150 °C
Thermal Characteristics TC = 25°C unless otherwise noted
Symbol Parameter Max Units
RθJC Maximum Thermal Resistance, Junction to Case 3.4 °C/W
Package Marking and Ordering Information Device Marking Device Package Reel Size Tape Width Quantity F08H60S FFPF08H60STU TO-220F
©2006 Fairchild Semiconductor Corporation www.fairchildsemi.com FFPF08H60S Rev. A
