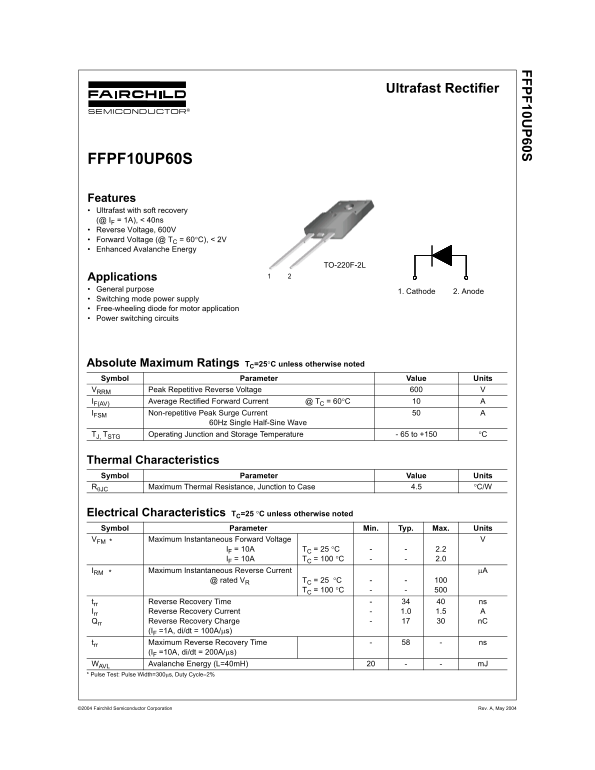

Fairchild FFPF10UP60S Ultrafast Rectifier Data Handbook

FFPF10U P60S

Ultrafast Rectifier

FFPF10UP60S

Features Ultrafast with soft recovery (@ IF = 1A), < 40ns Reverse Voltage, 600V Forward Voltage (@ TC = 60°C), < 2V Enhanced Avalanche Energy

TO-220F-2L

Applications 1 2

General purpose

1. Cathode 2. Anode

Switching mode power supply Free-wheeling diode for motor application Power switching circuits

Absolute Maximum Ratings TC=25°C unless otherwise noted Symbol Parameter Value Units VRRM Peak Repetitive Reverse Voltage

IF(AV) Average Rectified Forward Current @ TC = 60°C IFSM Non-repetitive Peak Surge Current

60Hz Single Half-Sine Wave

TJ, TSTG Operating Junction and Storage Temperature - 65 to +150 °C

Thermal Characteristics Symbol Parameter Value Units

RθJC Maximum Thermal Resistance, Junction to Case 4.5 °C/W

Electrical Characteristics TC=25 °C unless otherwise noted Symbol Parameter Min. Typ. Max. Units

VFM * Maximum Instantaneous Forward Voltage IF = 10A TC = 25 °C 2.2

IF = 10A TC = 100 °C 2.0

IRM * Maximum Instantaneous Reverse Current µA

@ rated VR TC = 25 °C

TC = 100 °C

trr Reverse Recovery Time ns

Irr Reverse Recovery Current 1.0 1.5

Qrr Reverse Recovery Charge n C

(IF =1A, di/dt = 100A/µs)

trr Maximum Reverse Recovery Time ns

(IF =10A, di/dt = 200A/µs)

WAVL Avalanche Energy (L=40m H) m J * Pulse Test: Pulse Width=300µs, Duty Cycle=2%

Rev. A, May 2004©2004 Fairchild Semiconductor Corporation
