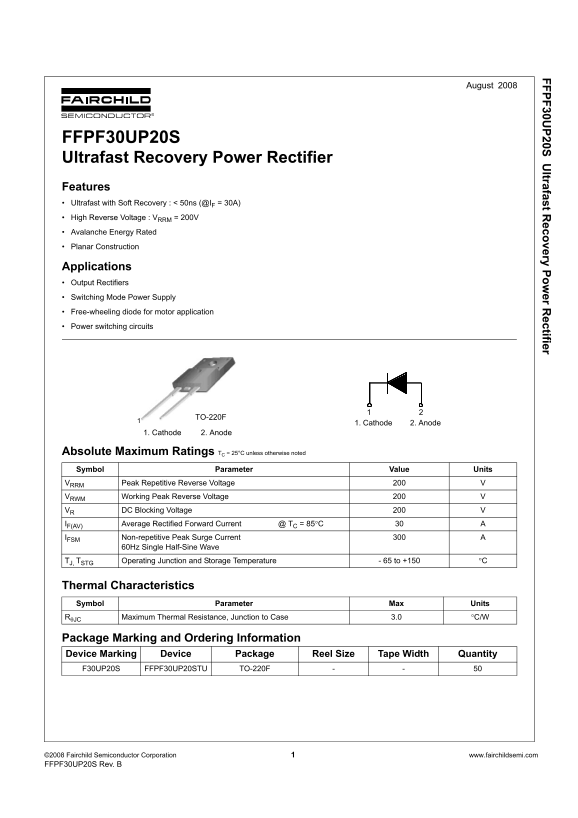

Page 1 Text Content
FFPF30U P20S U ltrafast R ecovery Pow er R ectifier
August 2008
FFPF30UP20S Ultrafast Recovery Power Rectifier Features Ultrafast with Soft Recovery : < 50ns (@IF = 30A) High Reverse Voltage : VRRM = 200V Avalanche Energy Rated Planar Construction
Applications Output Rectifiers Switching Mode Power Supply Free-wheeling diode for motor application Power switching circuits
TO-220F
1. Cathode 2. Anode
1. Cathode 2. Anode
Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter Value Units
VRRM Peak Repetitive Reverse Voltage VRWM Working Peak Reverse Voltage
VR DC Blocking Voltage
IF(AV) Average Rectified Forward Current @ TC = 85°C IFSM Non-repetitive Peak Surge Current 60Hz Single Half-Sine Wave TJ, TSTG Operating Junction and Storage Temperature - 65 to +150 °C
Thermal Characteristics Symbol Parameter Max Units
RθJC Maximum Thermal Resistance, Junction to Case 3.0 °C/W
Package Marking and Ordering Information Device Marking Device Package Reel Size Tape Width Quantity F30UP20S FFPF30UP20STU TO-220F
