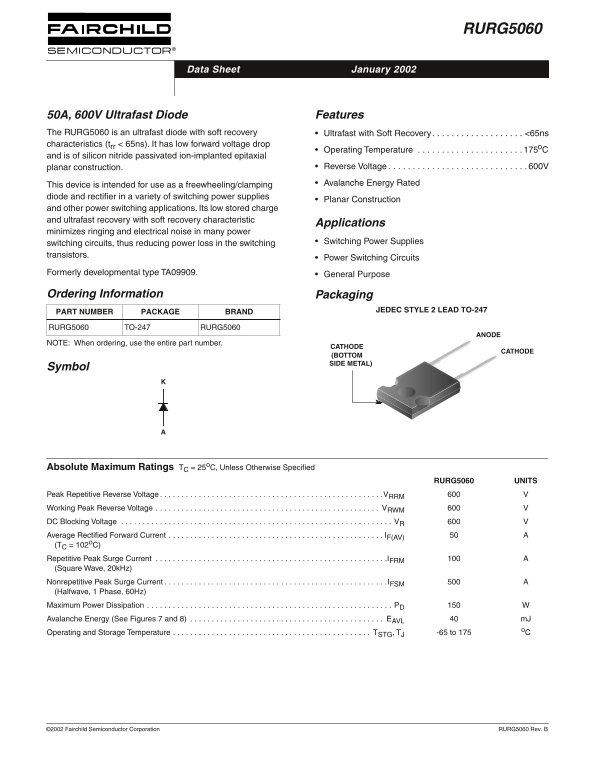

Page 1 Text Content
RURG5060
Data Sheet January 2002
50A, 600V Ultrafast Diode Features The RURG5060 is an ultrafast diode with soft recovery Ultrafast with Soft Recovery. . . . . . . . . . . . . . . . . . . <65ns characteristics (t < 65ns). It has low forward voltage drop
Operating Temperature . . . . . . . . . . . . . . . . . . . . . .
and is of silicon nitride passivated ion-implanted epitaxial
planar construction. Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 600V This device is intended for use as a freewheeling/clamping Avalanche Energy Rated
diode and rectifier in a variety of switching power supplies
Planar Construction
and other power switching applications. Its low stored charge and ultrafast recovery with soft recovery characteristic
Applications
minimizes ringing and electrical noise in many power
switching circuits, thus reducing power loss in the switching Switching Power Supplies
transistors.
Power Switching Circuits
Formerly developmental type TA09909. General Purpose
Ordering Information Packaging
JEDEC STYLE 2 LEAD TO-247
PART NUMBER PACKAGE BRAND
RURG5060 TO-247 RURG5060
ANODE
NOTE: When ordering, use the entire part number.
CATHODE
CATHODE
(BOTTOM SIDE METAL)
Symbol
Absolute Maximum Ratings = 25 C, Unless Otherwise Specified
RURG5060 UNITS
Peak Repetitive Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .V RRM Working Peak Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V RWM DC Blocking Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V Average Rectified Forward Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . F(AV) (T = 102 C) Repetitive Peak Surge Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .I FRM (Square Wave, 20k Hz) Nonrepetitive Peak Surge Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .I FSM (Halfwave, 1 Phase, 60Hz) Maximum Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P Avalanche Energy (See Figures 7 and 8) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E AVL m J Operating and Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . T STG , T -65 to 175
©2002 Fairchild Semiconductor Corporation RURG5060 Rev. B
