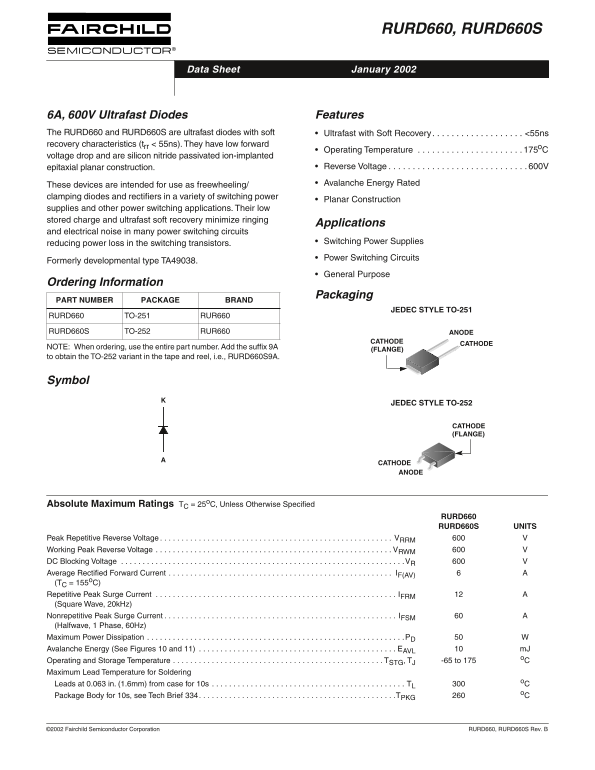

Fairchild RURD660, RURD660S 6A, 600V Ultrafast Diodes Data Sheet - Page 1

›

Page 1 Text Content

RURD660, RURD660S

Data Sheet January 2002

6A, 600V Ultrafast Diodes Features The RURD660 and RURD660S are ultrafast diodes with soft Ultrafast with Soft Recovery. . . . . . . . . . . . . . . . . . . <55ns recovery characteristics (t < 55ns). They have low forward

Operating Temperature . . . . . . . . . . . . . . . . . . . . . .

voltage drop and are silicon nitride passivated ion-implanted

epitaxial planar construction. Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 600V These devices are intended for use as freewheeling/ Avalanche Energy Rated

clamping diodes and rectifiers in a variety of switching power

Planar Construction

supplies and other power switching applications. Their low stored charge and ultrafast soft recovery minimize ringing

Applications

and electrical noise in many power switching circuits

reducing power loss in the switching transistors. Switching Power Supplies Power Switching Circuits

Formerly developmental type TA49038.

General Purpose

Ordering Information

Packaging

PART NUMBER PACKAGE BRAND

JEDEC STYLE TO-251

RURD660 TO-251 RUR660

RURD660S TO-252 RUR660 ANODE

CATHODECATHODE

NOTE: When ordering, use the entire part number. Add the suffix 9A

(FLANGE)

to obtain the TO-252 variant in the tape and reel, i.e., RURD660S9A.

Symbol

JEDEC STYLE TO-252

CATHODE (FLANGE)

CATHODE ANODE

Absolute Maximum Ratings = 25 C, Unless Otherwise Specified

RURD660 RURD660S UNITS

Peak Repetitive Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V

Working Peak Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DC Blocking Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .V Average Rectified Forward Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I

F(AV)

(T = 155 C) Repetitive Peak Surge Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I

(Square Wave, 20k Hz) Nonrepetitive Peak Surge Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I

(Halfwave, 1 Phase, 60Hz) Maximum Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P Avalanche Energy (See Figures 10 and 11) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . m J

Operating and Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . , T -65 to 175

Maximum Lead Temperature for Soldering Leads at 0.063 in. (1.6mm) from case for 10s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . T Package Body for 10s, see Tech Brief 334. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .T
