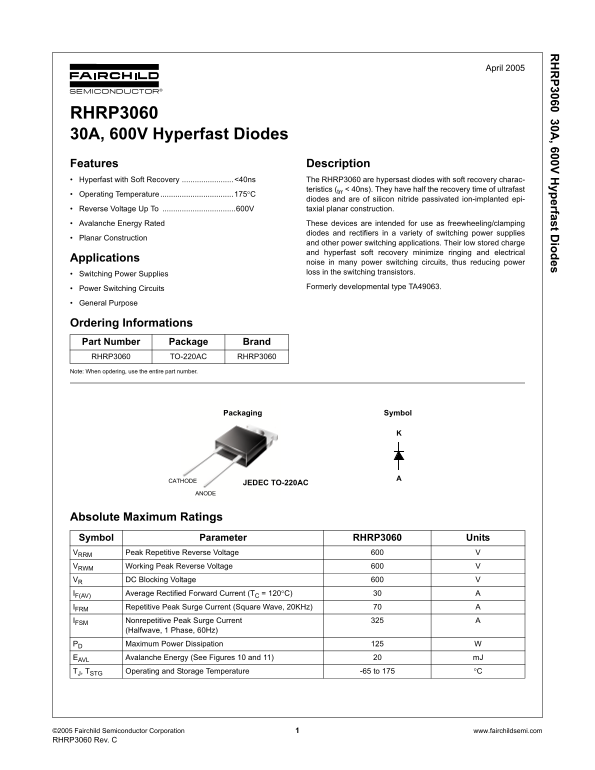

P3060 30A , 600V H yperfast D iodes

April 2005

RHRP3060 30A, 600V Hyperfast Diodes Features Description Hyperfast with Soft Recovery ........................<40ns The RHRP3060 are hypersast diodes with soft recovery charac-

teristics (trr < 40ns). They have half the recovery time of ultrafast

Operating Temperature ..................................175°C

diodes and are of silicon nitride passivated ion-implanted epi-

Reverse Voltage Up To ..................................600V taxial planar construction.

Avalanche Energy Rated These devices are intended for use as freewheeling/clamping

diodes and rectifiers in a variety of switching power supplies

Planar Construction

and other power switching applications. Their low stored charge and hyperfast soft recovery minimize ringing and electrical

Applications

noise in many power switching circuits, thus reducing power Switching Power Supplies loss in the switching transistors.

Power Switching Circuits Formerly developmental type TA49063.

General Purpose

Ordering Informations Part Number Package Brand RHRP3060 TO-220AC RHRP3060 Note: When opdering, use the entire part number.

Packaging Symbol

AJEDEC TO-220AC

CATHODE

ANODE

Absolute Maximum Ratings Symbol Parameter RHRP3060 Units VRRM Peak Repetitive Reverse Voltage VRWM Working Peak Reverse Voltage

VR DC Blocking Voltage

IF(AV) Average Rectified Forward Current (TC = 120°C)

IFRM Repetitive Peak Surge Current (Square Wave, 20KHz)

IFSM Nonrepetitive Peak Surge Current (Halfwave, 1 Phase, 60Hz)

PD Maximum Power Dissipation

EAVL Avalanche Energy (See Figures 10 and 11) m J

TJ, TSTG Operating and Storage Temperature -65 to 175 °C

©2005 Fairchild Semiconductor Corporation www.fairchildsemi.com RHRP3060 Rev. C
