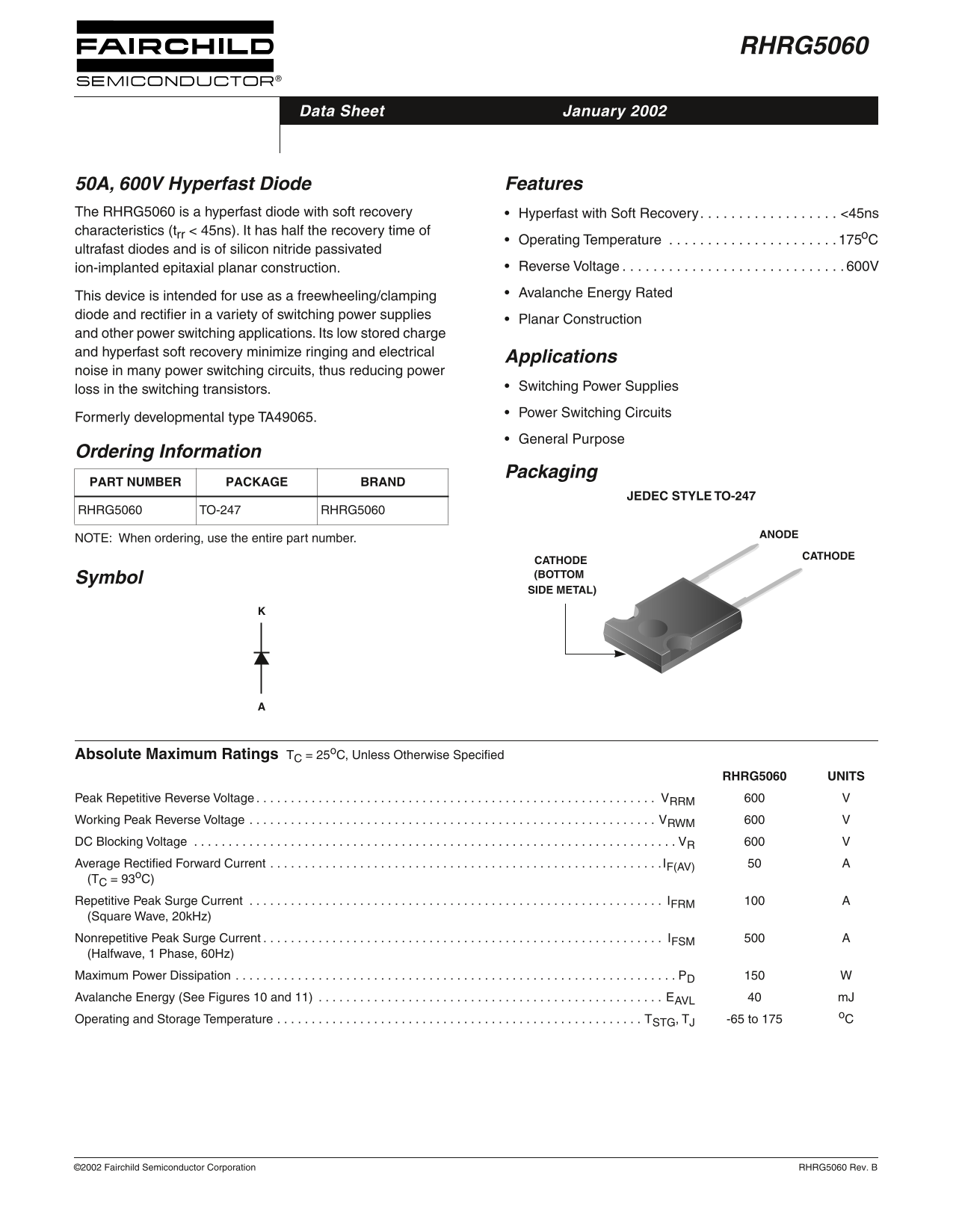

Fairchild RHRG5060 50A, 600V Hyperfast Diode Data Manual

RHRG5060

Data Sheet January 2002

50A, 600V Hyperfast Diode Features The RHRG5060 is a hyperfast diode with soft recovery Hyperfast with Soft Recovery. . . . . . . . . . . . . . . . . . <45ns characteristics (t < 45ns). It has half the recovery time of

Operating Temperature . . . . . . . . . . . . . . . . . . . . . .

ultrafast diodes and is of silicon nitride passivated

ion-implanted epitaxial planar construction. Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 600V This device is intended for use as a freewheeling/clamping Avalanche Energy Rated

diode and rectifier in a variety of switching power supplies

Planar Construction

and other power switching applications. Its low stored charge and hyperfast soft recovery minimize ringing and electrical

Applications

noise in many power switching circuits, thus reducing power

loss in the switching transistors. Switching Power Supplies Power Switching Circuits

Formerly developmental type TA49065.

General Purpose

Ordering Information

Packaging

PART NUMBER PACKAGE BRAND

JEDEC STYLE TO-247

RHRG5060 TO-247 RHRG5060

ANODE

NOTE: When ordering, use the entire part number.

CATHODECATHODE

(BOTTOM

Symbol

SIDE METAL)

Absolute Maximum Ratings = 25 C, Unless Otherwise Specified

RHRG5060 UNITS

Peak Repetitive Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V

Working Peak Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V

DC Blocking Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Average Rectified Forward Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

F(AV)

(T = 93 C) Repetitive Peak Surge Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I

(Square Wave, 20k Hz) Nonrepetitive Peak Surge Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I

(Halfwave, 1 Phase, 60Hz) Maximum Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Avalanche Energy (See Figures 10 and 11) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E m J

Operating and Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . T , T -65 to 175

©2002 Fairchild Semiconductor Corporation RHRG5060 Rev. B
