FAIRCHILD FDG6332C 20V N & P-Channel PowerTrench MOSFETs Data Handbook

Summary

These advanced N & P-Channel PowerTrench MOSFETs provide superior power handling and low on-state resistance in an extremely small footprint. This detailed manual serves as a comprehensive technical guide for engineers designing reliable power circuits. It covers all critical specifications, including switching characteristics, thermal limits, voltage breakdowns, and performance measurements necessary for implementing applications like DC/DC converters, load switches, and LCD display inverters where efficiency and minimal size are paramount.

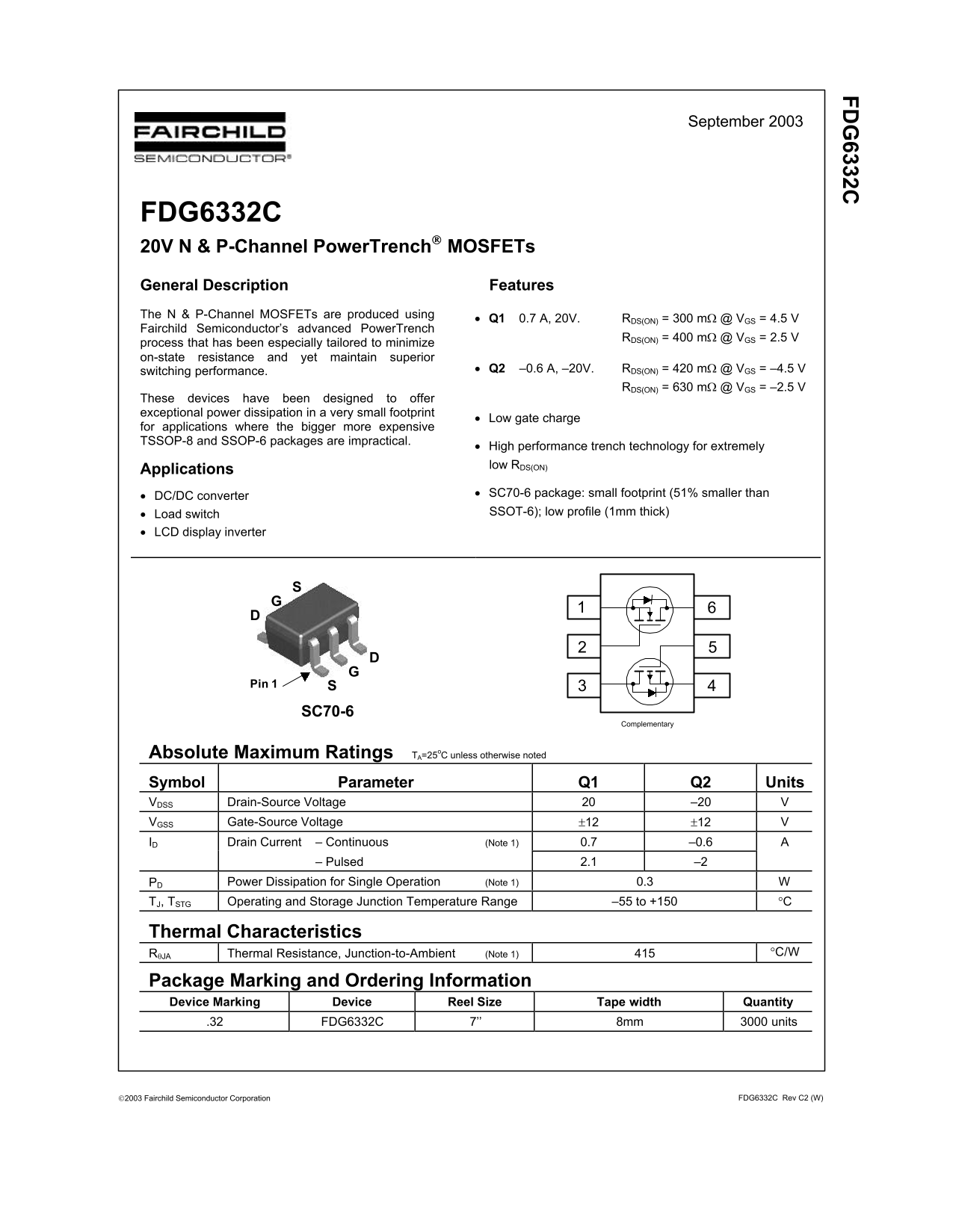

📄 Preview PAGE OF 8

Page 1 Text Content

September 2003

FDG6332C 20V N & P-Channel Power Trench MOSFETs General Description Features The N & P-Channel MOSFETs are produced using

• Q1 0.7 A, 20V. RDS(ON) = 300 mΩ @ VGS = 4.5 V

Fairchild Semiconductor’s advanced Power Trench

RDS(ON) = 400 mΩ @ VGS = 2.5 V

process that has been especially tailored to minimize on-state resistance and yet maintain superior

switching performance. • Q2 –0.6 A, –20V. RDS(ON) = 420 mΩ @ VGS = –4.5 V

RDS(ON) = 630 mΩ @ VGS = –2.5 V

These devices have been designed to offer exceptional power dissipation in a very small footprint

• Low gate charge

for applications where the bigger more expensive TSSOP-8 and SSOP-6 packages are impractical.

• High performance trench technology for extremely low RDS(ON)

Applications

• DC/DC converter • SC70-6 package: small footprint (51% smaller than • Load switch SSOT-6); low profile (1mm thick)

• LCD display inverter

Pin 1

SC70-6

Complementary

Absolute Maximum Ratings TA=25o C unless otherwise noted Symbol Parameter Q1 Q2 Units VDSS Drain-Source Voltage –20 VGSS Gate-Source Voltage ±12 ±12 ID Drain Current – Continuous (Note 1) 0.7 –0.6

– Pulsed 2.1 –2

PD Power Dissipation for Single Operation (Note 1) 0.3

TJ, TSTG Operating and Storage Junction Temperature Range –55 to +150 °C

Thermal Characteristics

RθJA Thermal Resistance, Junction-to-Ambient (Note 1) °C/W

Package Marking and Ordering Information Device Marking Device Reel Size Tape width Quantity

.32 FDG6332C 7’’ 8mm 3000 units

2003 Fairchild Semiconductor Corporation FDG6332C Rev C2 (W)

Page Summary Contents For FAIRCHILD FDG6332C 20V N & P-Channel PowerTrench MOSFETs Data Handbook

Page 1 September 2003 FDG6332C 20V N & P-Channel Power Trench MOSFETs General Description Features The N & P-Channel MOSFETs are produced using • Q1 0.7 A, 20V. RDS(ON) = 300 mΩ @ VGS = 4.5 V Fairch...
Page 2 Electrical Characteristics TA = 25°C unless otherwise noted Symbol Parameter Test Conditions Min Typ Max Units Off Characteristics VGS = 0 V, ID = 250 µA Q1 BVDSS Drain–Source Breakdown Voltage VGS = ...
Page 3 Electrical Characteristics TA = 25°C unless otherwise noted Symbol Parameter Test Conditions Min Typ Max Units Drain–Source Diode Characteristics and Maximum Ratings IS Q1 0.25Maximum Continuous Drain...
Page 4 (O IZ Typical Characteristics: N-Channel , D IN IN -S -R IS , D IN 3.0VVGS=4.5V VGS = 2.5V VDS, DRAIN-SOURCE VOLTAGE (V) ID, DRAIN CURRENT (A) Figure 1. On-Region Characteristics. Figure 2. On-Resista...
Page 5 , D IN Typical Characteristics: N-Channel , G -S VDS = 5V ID = 0.7A f = 1MHz VGS = 0 V Qg, GATE CHARGE (n C) VDS, DRAIN TO SOURCE VOLTAGE (V) Figure 7. Gate Charge Characteristics. Figure 8. Capacitan...
Page 6 Typical Characteristics: P-Channel (O IZ -I , D IN -I , D IN IN -S -R IS VGS = -4.5V -3.0V VGS = -2.5V 0.5 1.5 -VDS, DRAIN-SOURCE VOLTAGE (V) -ID, DRAIN CURRENT (A) Figure 11. On-Region Characteristic...
Page 7 Typical Characteristics: P-Channel r( t) , N IZ IV IE -I , D IN IS -V , G -S ID = -0.6A VDS = -5V f = 1MHz VGS = 0 V Qg, GATE CHARGE (n C) -VDS, DRAIN TO SOURCE VOLTAGE (V) Figure 17. Gate Charge Char...
Page 8 TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks. ACEx™ FACT...

Manual Details

Brand Fairchild
Pages 8
File Size 93.07 KB
Published July 15, 2026
2 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What is the operating temperature range for this device?

The Junction Temperature Range (Tj) is -55 to +150 °C.

How is power dissipation rated for single operation?

Power dissipation can be calculated using parameters like RthJA and considering the operational conditions specified in the manual.

What voltage range should I consider for Gate-Source Voltage (VGS)?

The absolute maximum rating for VGS is ±20V, while typical operating values are listed throughout the specifications.

Are there restrictions on using this device?

No. Fairchild's products are not authorized for use as critical components in life support devices or systems without express written approval.
