Fairchild Fan7527B Power Factor Correction Controller Data Manual
Summary
The FAN7527B is a high-performance power factor correction controller engineered for modern electronic ballasts and low-power, high-density switch mode power supplies (SMPS). This comprehensive guide details its advanced electrical specifications, including built-in R/C filtering, zero current detection, and precise overvoltage protection. Ideal for electrical engineers and designers creating reliable and efficient lighting or constant voltage systems that require robust control circuitry.

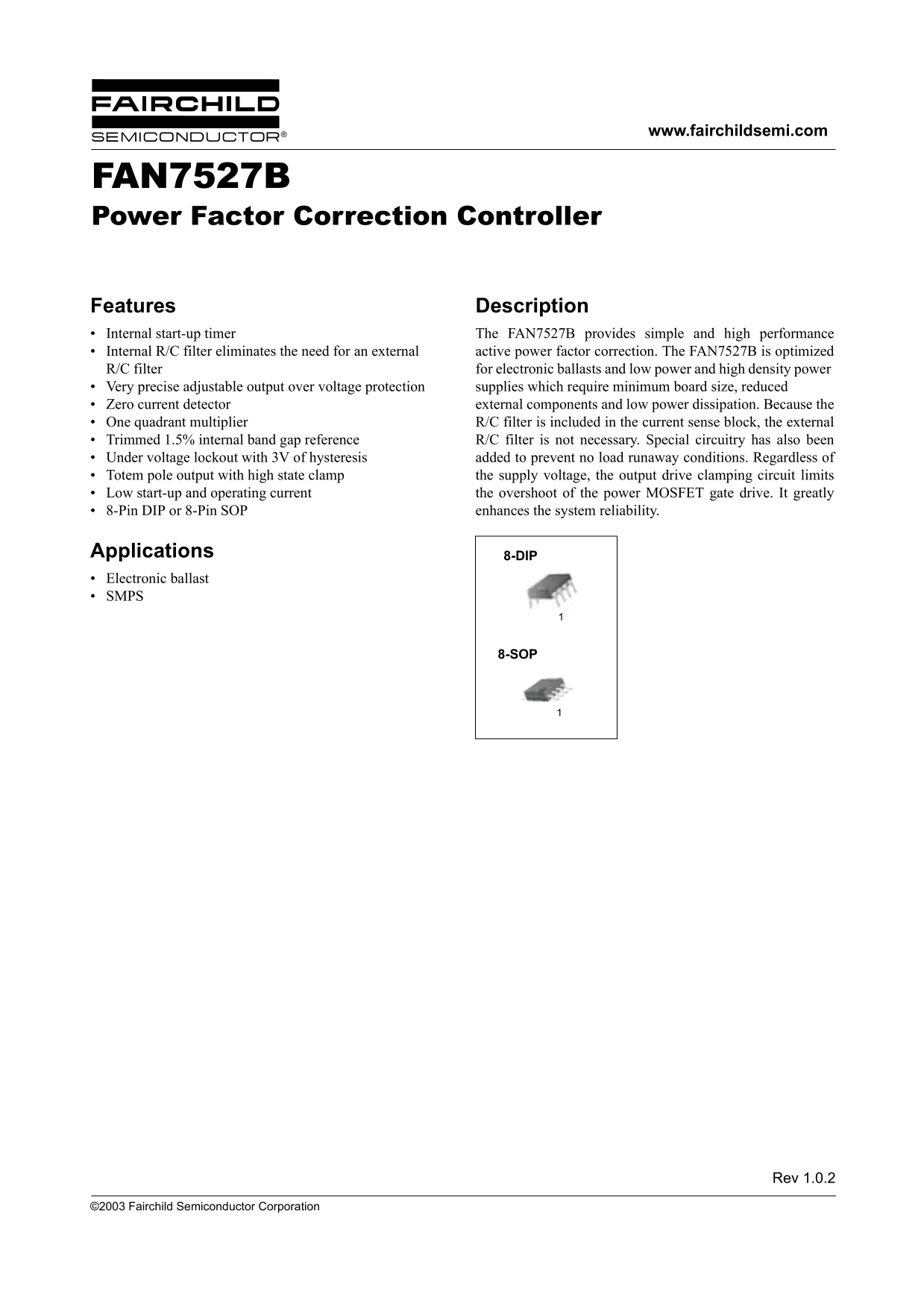

Page 1 Text Content
www.fairchildsemi.com
FAN7527B Power Factor Correction Controller
Features Description Internal start-up timer The FAN7527B provides simple and high performance Internal R/C filter eliminates the need for an external active power factor correction. The FAN7527B is optimized R/C filter for electronic ballasts and low power and high density power Very precise adjustable output over voltage protection supplies which require minimum board size, reduced Zero current detector external components and low power dissipation. Because the One quadrant multiplier R/C filter is included in the current sense block, the external Trimmed 1.5% internal band gap reference R/C filter is not necessary. Special circuitry has also been Under voltage lockout with 3V of hysteresis added to prevent no load runaway conditions. Regardless of Totem pole output with high state clamp the supply voltage, the output drive clamping circuit limits Low start-up and operating current the overshoot of the power MOSFET gate drive. It greatly 8-Pin DIP or 8-Pin SOP enhances the system reliability.
Applications 8-DIP Electronic ballast SMPS
8-SOP
Rev 1.0.2
©2003 Fairchild Semiconductor Corporation
Page Summary Contents For Fairchild Fan7527B Power Factor Correction Controller Data Manual
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 12 |
| File Size | 401.84 KB |
| Published | July 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Does this controller require external PFC components?
No, the internal R/C filter eliminates the need for an external active power factor correction circuit.
What is the maximum peak drive output current?
The push pull output stage can drive the OUT power MOSFET with a peak current of 500 mA.
How does the device reject high-frequency noise?
An internal R/C filter is included in the current sense block to reject any high frequency noise.
Is this chip suitable for life support systems?
No, products are not authorized for use as critical components in life support devices without express written approval.
