AN-9750 High-Power Factor Flyback Converter for LED Driver with FL7732 PSR Controller
efficiency and simple design. FL7732 provides protection
Introduction functions such as open-LED, short-LED and over-
temperature protection. The current-limit level is
This highly integrated PWM controller, FL7732, provides
automatically reduced to minimize the output current and
several features to enhance the performance of low-power
protect external components in short-LED condition.
flyback converters. The proprietary topology enables
simplified circuit design for LED lighting applications. By This application note presents practical design consideration using single-stage topology with primary-side regulation, a for an LED driver employing Fairchild Semiconductor LED lighting board can be implemented with few external PWM PSR controller FL7732. It includes designing the components and minimized cost, without requiring an input transformer, selecting the components, and implementing bulk capacitor and feedback circuitry. To implement high constant current regulation. The step-by-step design power factor and low THD, constant on-time control procedure helps engineers design a power supply. The utilizes an external capacitor connected at the COMI pins. design procedure is verified through an experimental prototype converter. Figure 1 shows the typical application
Precise constant-current control regulates accurate output
circuit of primary-side controlled flyback converter using
current across changes in input voltage and output voltage.
FL7732 created in the design example.
The operating frequency is proportionally changed by the output voltage to guarantee DCM operation with higher

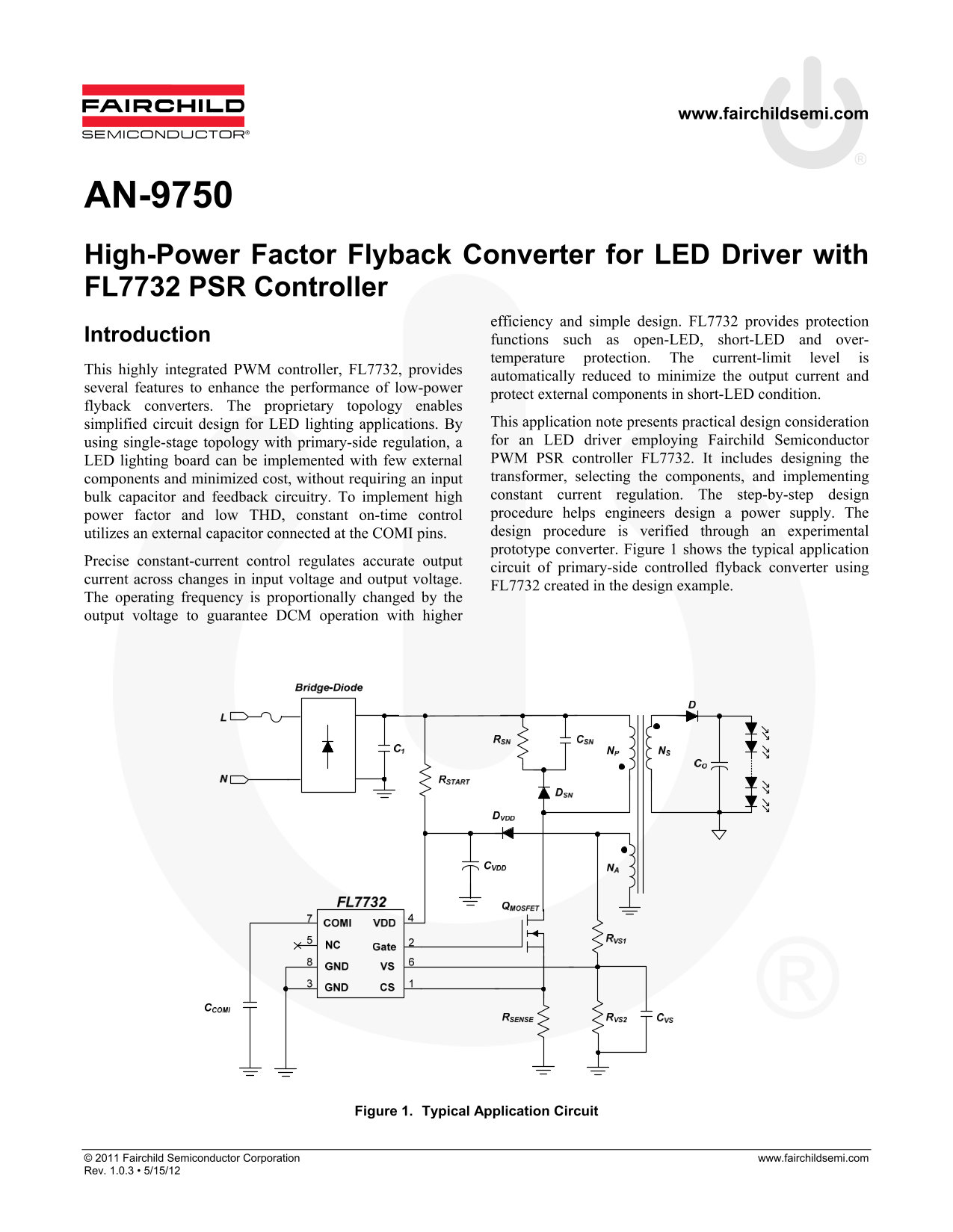

Figure 1. Typical Application Circuit
© 2011 Fairchild Semiconductor Corporation www.fairchildsemi.com Rev. 1.0.3 • 5/15/12
