EXTECH Infrared Thermometer with Laser Pointer Model 42540A User's Guide and Manual
Summary
The Model 42540A is a professional, non-contact infrared thermometer designed to measure temperatures accurately at the touch of a button. Featuring an integrated laser pointer and backlit LCD display for enhanced visibility, this instrument provides reliable measurements across a wide range of applications. This user guide offers comprehensive instructions on basic operation, mastering emissivity settings, utilizing the laser and backlight functions, understanding technical specifications, and outlining warranty/safety protocols. It is ideal for technicians, industrial inspectors, and professionals needing precise, convenient temperature monitoring in demanding environments.
Page 1 Text Content

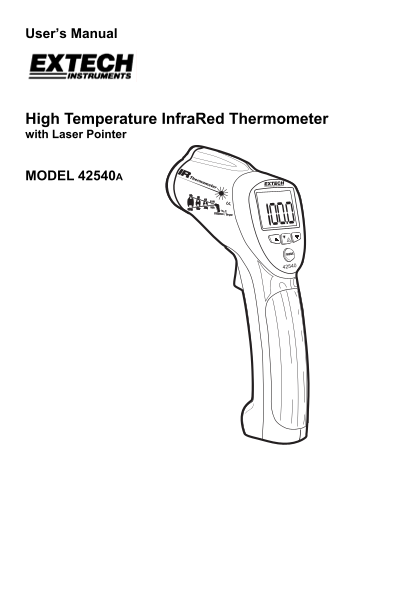

User’s Manual
High Temperature Infra Red Thermometer with Laser Pointer
MODEL 42540A
Page Summary Contents For EXTECH Infrared Thermometer with Laser Pointer Model 42540A User's Guide and Manual
Page 1
User’s Manual High Temperature Infra Red Thermometer with Laser Pointer MODEL 42540A
Page 2
Introduction Congratulations on your purchase of the Model 42540A IR Thermometer. The 42540A is capable of non-contact (infrared) temperature measurements at the touch of a button. The built-in laser ...
Page 3
Meter Description 1. Laser pointer beam 2. IR Sensor 3. Measurement Trigger 4. Battery and Switch Compartment 5. LCD Display 6. Push-buttons 7. Handle Grip 8. Temperature Units (ºC/ºF) Switch 9. Test ...
Page 4
Operating Instructions Basic IR Measurements 1. Hold the meter by its handle and point it toward the surface to be measured. 2. Pull and hold the trigger to turn the meter on and begin testing. The te...
Page 5
The MODE button options The MODE button is used to access the programming functions of the instrument. The selected function is displayed on the bottom line of the LCD. Each parameter is listed below ...
Page 6
Battery Replacement When the battery symbol appears empty or close to empty, replace the meter’s 9V battery. The battery compartment is located behind the panel that surrounds the meter’s trigger. The...
Page 7
Emissivity and IR Measurement Theory IR Thermometers measure the surface temperature of an object. The thermometer’s optics sense emitted, reflected, and transmitted energy. The thermometer’s electron...
Page 8
Specifications Infrared Thermometer Specifications Range / Resolution -58 to 1400o F (-50 to 760o C) 0.1o C/F over entire range Accuracy ± 2% of reading or 4o F (2o C) whichever is greater < 932o F...
