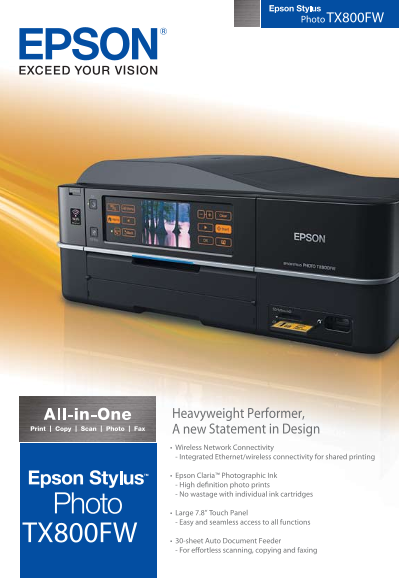

Page 1 Text Content
Photo TX800FW
SPECIFICATIONS PRINTER TYPE PRINTING METHOD On-demand ink jet (piezoelectric) NOZZLE CONFIGURATION 180 nozzles Black, 180 nozzles, each colour (Cyan, Magenta,Yellow,Light Cyan,Light Magenta) PRINT DIRECTION Bi-directional printing, Uni-directional printing PRINT QUALITY MAXIMUM RESOLUTION 5760x1440 dpi (with Variable-Sized Droplet Technology) MINIMUM INK DROPLET VOLUME 1.5pl
PRINT SPEED*
BLACK TEXT MEMO (A4) Approx 40ppm (Draft)
TX800FW COLOUR TEXT MEMO (A4) Approx 40ppm (Draft) PHOTO 10x15cm/4x6in when printed on Epson Premium Glossy Photo Paper Approx 10 sec per photo (Draft Borderless)
81N INK CARTRIDGES (HIGH CAPACITY)
BLACK INK CARTRIDGE Approx 570 pages^
CYAN INK CARTRIDGE
Weight: 10.7KG MAGENTA INK CARTRIDGE YELLOW INK CARTRIDGE Approx 855 (Composite Yield)^ LIGHT CYAN INK CARTRIDGE LIGHT MAGENTA INK CARTRIDGE
82N INK CARTRIDGES (STANDARD CAPACITY)
BLACK INK CARTRIDGE T0821 Approx 355 pages^
CYAN INK CARTRIDGE T0822
MAGENTA INK CARTRIDGE T0823
YELLOW INK CARTRIDGE T0824 Approx 525 (Composite Yield)^
LIGHT CYAN INK CARTRIDGE T0825
LIGHT MAGENTA INK CARTRIDGE T0826
^Based on ISO/IEC 24711 & 24712 Test Suite
CONTROL PANEL
LCD SCREEN 3.5 inch TFT Color LCD + 7.8inch touch panel ( Actual sensing area size: 189.7mm×58.6mm)
RESOLUTION 320pixel x 240pixel
COPY SPEED**
BLACK TEXT MEMO (A4) Approx 40 cpm (Draft)
COLOUR TEXT MEMO (A4) Approx 39 cpm (Draft)
To use USB port, your PC must conform to REDUCTION/ENLARGEMENT Auto Fit Function COPY MODES Standard copy mode / Border Free
SCAN TECHNOLOGY
preinstalled. Consult the documentation
SCANNER TYPE A4 Flatbed colour image scanner
provided with your PC for further information SENSOR TYPE CIS
about USB connectivity. Note also that printing OPTICAL RESOLUTION 4800X4800 DPI BIT DEPTH Input 48bits(16bits/colour) /Output 24bits(8bits/colour)
errors may occur if non-standard cables or
SCANNING SPEED
more than 2 USB hub connections are used.
MONOCHROME A4 300dpi 2.2 m Sec/line
COLOUR A4 300dpi 7.5 msec/line
MONOCHROME A4 600dpi 7.0 msec/line
COLOUR A4 600dpi 13.1 msec/line
MONOCHROME A4 1200dpi 8.8 msec/line
COLOUR A4 1200dpi 25.4 msec/line
FAX FUNCTION FAX SPEED Up to 33.6kbps
*Print speed (PPM) when printed on A4 plain FAX RESOLUTION
paper in the fastest mode, 10x15cm photo ERROR CORECTION MODE CCITU/ITU Group3 fax with Error Correction Mode. FAX SPEED DIALS (MAX) 60 Names & Numbers
print speed when printed on Epson PAGE MEMORY Page memory Up to 180 pages (ITU-T No.1 chart) Premium Glossy Photo Paper in default FAX TRANSMISSION SPEED Approx. 3sec/page mode. Print speed may vary depending on CARD SLOT FUNCTION
BUILT-IN SLOT CF Type II, Memory Stick, SD/MMC, x D-Picture card
SUPPORTED MEMORY CARDS Compact Flash (Memory card only), Micro Drive, Memory Stick, Memory Stick Duo (With Adapter), Magic Gate Memory Stick, Magic Gate, Memory Stick Duo
complexity, software, type of paper used and (With Adopter), Memory Stick PRO, Memory Stick PRO Duo (With Adapter), SD, SDHC, Mini SD (With Adapter), Mini SDHC (With Adapter), Micro SD (With Adopter),
connectivity. Print speed does not include Micro SDHC (With Adapter), Multi Media Card, MMCplus, MMCmobile (With Adapter), MMCmicro (With Adapter), x D-Picture card, x D-Picture card Type-M, x D-Picture card Type-M+, x D-Picture card Type-H
processing time on host computer.
FILE FORMAT JPEG (Exif ver 2.21) - DCF version 1.0/2.0, DPOF Compliant
**Copy speed (CPM) when printed on plain AUTO DOCUMENT FEEDER FUNCTION paper in the fastest mode. Copy speed may MAXIMUM NUMBER OF ORIGINAL 30pages (Xerox-P 64g/m2) or 3 mm (Letter, A4) / 10 sheets (Legal)
vary depending on copy mode, document complexity, type of paper used and number
of copies. INTERFACE
USB (cable included)
WIRELESS Wi Fi 802.11b/g
ETHERNET 10 Base-T, 100 Base-TX
PAPER HANDLING
PAPER FEED METHOD Friction feed
PAPER HOLD CAPACITY Input capacity: 120 sheets, A4 Plain paper (64g/㎡)
PAPER SIZE A4, A5, A6.B5, 10x15cm(4x6in),13x18cm(5x7in),16:9 wide size, Letter(8 1/2x11in), Legal(8 1/2x14in), Half Letter(5 1/2x8 1/2in), 9x13cm (3.5x5 in),13x20cm
(5x8in),20x25cm (8x10in),100x148mm, Envelopes: #10(4 1/8x9 1/2in), DL(110x220mm), C6(114x162mm)
PRINT MARGIN 0mm top, left, right, bottom via custom settings in printer driver. Otherwise 3mm top, left, right, bottom.
INPUT DATA BUFFER 64KB
COLOUR MATCHING Compatible(Mac)
Black text Black text Photo 4R NOISE LEVEL 4.8B (A), Measurement: according to ISO7779 Pattern with PGPP/Photo RPM mode
and graphics (4”x6”) ELECTRICAL SPECIFICATIONS
RATED VOLTAGE AC100 ~ 120V / AC 220 ~ 240V * Rated Voltage will vary depending on area Heavyweight Performer,
RATED FREQUENCY 50~60 Hz
POWER CONSUMPTION Approx. 26W (Standalone copying, ISO10561 Letter Pattern)
Epson is the registered trademark of Seiko AC100-120V : Approx 5.5W (Sleep Mode), AC220-240V : Approx 5.5W (Sleep Mode) A new Statement in Design
Epson Corporation. All other product
ENERGY STAR rating
names and other company names used herein PRINTER SOFTWARE ON CD-ROM
PRINTER DRIVERS Windows 2000/XP/XP x64 Edition/Vista Wireless Network Connectivity
the trademarks or registered trademarks of their Mac OS 10.3.9 or later with USB
ON-LINE GUIDE Yes
respective owners, Epson disclaims any and all - Integrated Ethernet/wireless connectivity for shared printing
rights in those marks. Scan/Print samples
are subject to change without notice. Epson Claria™ Photographic Ink
- No wastage with individual ink cartridges
Large 7.8” Touch Panel - Easy and seamless access to all functions
TX800FW 30-sheet Auto Document Feeder
www.epson.com.au www.epson.co.nz
