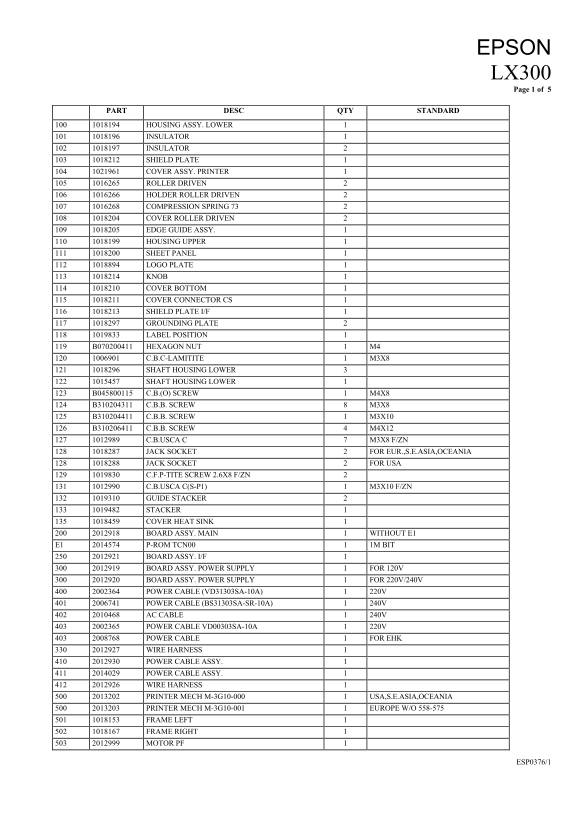

EPSON LX300 User Guide and Manual - Page 1

›

Page 1 Text Content

EPSON LX300 Page 1 of 5

PART DESC QTY STANDARD

HOUSING ASSY. LOWER INSULATOR INSULATOR SHIELD PLATE COVER ASSY. PRINTER ROLLER DRIVEN HOLDER ROLLER DRIVEN COMPRESSION SPRING 73 COVER ROLLER DRIVEN EDGE GUIDE ASSY. HOUSING UPPER SHEET PANEL LOGO PLATE KNOB COVER BOTTOM COVER CONNECTOR CS SHIELD PLATE I/F GROUNDING PLATE LABEL POSITION

B070200411 HEXAGON NUT M4

C.B.C-LAMITITE M3X8 SHAFT HOUSING LOWER SHAFT HOUSING LOWER

B045800115 C.B.(O) SCREW M4X8 B310204311 C.B.B. SCREW M3X8 B310204411 C.B.B. SCREW M3X10 B310206411 C.B.B. SCREW M4X12

C.B.USCA C M3X8 F/ZN JACK SOCKET FOR EUR.,S.E.ASIA,OCEANIA JACK SOCKET FOR USA C.F.P-TITE SCREW 2.6X8 F/ZN C.B.USCA C(S-P1) M3X10 F/ZN GUIDE STACKER STACKER COVER HEAT SINK BOARD ASSY. MAIN WITHOUT E1

E1 P-ROM TCN00 1M BIT

BOARD ASSY. I/F BOARD ASSY. POWER SUPPLY FOR 120V BOARD ASSY. POWER SUPPLY FOR 220V/240V POWER CABLE (VD31303SA-10A) 220V POWER CABLE (BS31303SA-SR-10A) 240V AC CABLE 240V POWER CABLE VD00303SA-10A 220V POWER CABLE FOR EHK WIRE HARNESS POWER CABLE ASSY. POWER CABLE ASSY. WIRE HARNESS PRINTER MECH M-3G10-000 USA,S.E.ASIA,OCEANIA PRINTER MECH M-3G10-001 EUROPE W/O 558-575 FRAME LEFT FRAME RIGHT MOTOR PF

ESP0376/1
