EPSON FX2170 User Guide and Manual
Summary
The comprehensive resource for maintaining and repairing your Epson FX2170 printer. This technical index provides extensive part number identification across every mechanical and electronic component of the unit. Ideal for professional technicians and advanced users needing precise parts replacement information, it details everything from fasteners and belts to specific chips, resistors, power supplies, and structural assemblies. Use this guide to accurately identify replacements, ensuring your Epson FX2170 runs reliably with genuine components.
Page 1 Text Content

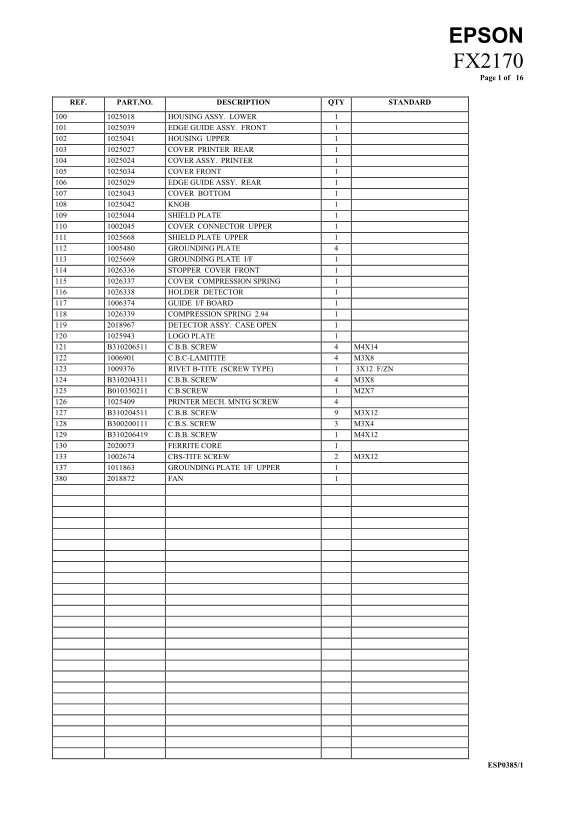

EPSON FX2170 Page 1 of 16
REF. PART.NO. DESCRIPTION QTY STANDARD
HOUSING ASSY. LOWER EDGE GUIDE ASSY. FRONT HOUSING UPPER COVER PRINTER REAR COVER ASSY. PRINTER COVER FRONT EDGE GUIDE ASSY. REAR COVER BOTTOM KNOB SHIELD PLATE COVER CONNECTOR UPPER SHIELD PLATE UPPER GROUNDING PLATE GROUNDING PLATE I/F STOPPER COVER FRONT COVER COMPRESSION SPRING HOLDER DETECTOR GUIDE I/F BOARD COMPRESSION SPRING 2.94 DETECTOR ASSY. CASE OPEN LOGO PLATE
B310206511 C.B.B. SCREW M4X14
C.B.C-LAMITITE M3X8 RIVET B-TITE (SCREW TYPE) 3X12 F/ZN
B310204311 C.B.B. SCREW M3X8 B010350211 C.B.SCREW M2X7
PRINTER MECH. MNTG SCREW
B310204511 C.B.B. SCREW M3X12 B300200111 C.B.S. SCREW M3X4 B310206419 C.B.B. SCREW M4X12
FERRITE CORE CBS-TITE SCREW M3X12 GROUNDING PLATE I/F UPPER FAN
ESP0385/1
