Delta Industrial Automation AC Servo System ASD-PU-01B Digital Operator Installation Manual Standard Universal Type
Summary
The ASD-PU-01B is a digital keypad and display unit designed for controlling and interacting with Delta ASDA-B series servo drives in industrial automation systems. This manual serves as your essential guide, detailing safe installation practices, precise wiring configurations, and operational procedures. It provides critical information on using built-in memory functions, performing fast parameter editing, and executing specialized controls like JOG and auto-tuning. Ideal for technicians and engineers responsible for the commissioning, maintenance, and troubleshooting of advanced servo drive systems.
Page 1 Text Content

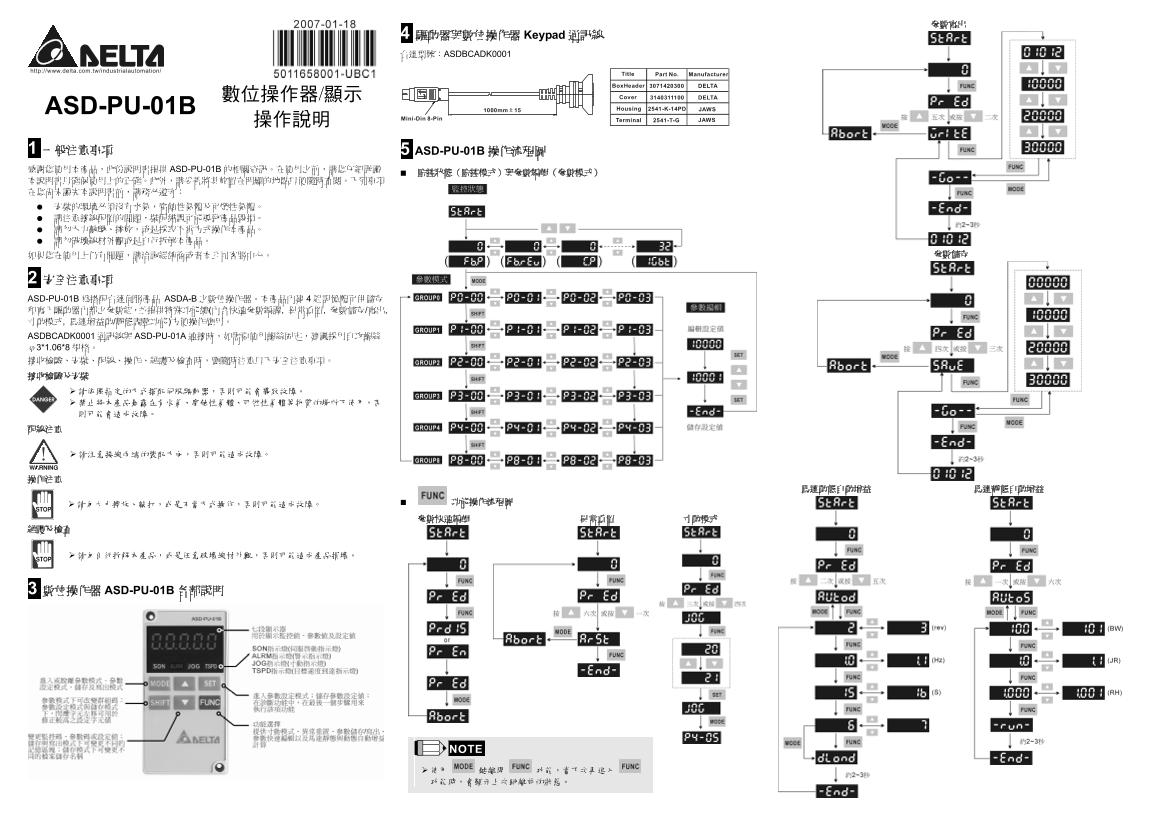

驅動器與數位操作器 Keypad 通訊線 台達型號：ASDBCADK0001
Title Part No. Manufacturer
Box Header DELTA
Cover DELTA
ASD-PU-01B 數位操作器/顯示 1000mm 15 Housing 2541-K-14PD JAWS
操作說明 Mini-Din 8-Pin Terminal 2541-T-G JAWS
一般注意事項 ASD-PU-01B 操作流程圖
感謝您使用本產品，此份說明書提供 ASD-PU-01B 的相關資訊。在使用之前，請您仔細詳讀
ASD-PU-01B 為搭配台達伺服產品 ASDA-B 之數位操作器。本產品內建 組記憶體可供儲存 和寫入驅動器內部之參數組，並提供特殊功能鍵(內含快速參數編譯, 異常重置, 參數儲存/寫出, 寸動模式, 馬達增益動/靜態調整功能)方便操作應用。 ASDBCADK0001 通訊線與 ASD-PU-01A 連接時，如需要使用螺絲固定，建議採用自攻螺絲 φ3*1.06*8 規格。 接收檢驗、安裝、配線、操作、維護及檢查時，應隨時注意以下安全注意事項。 接收檢驗及安裝
數位操作器 ASD-PU-01B 各部說明
