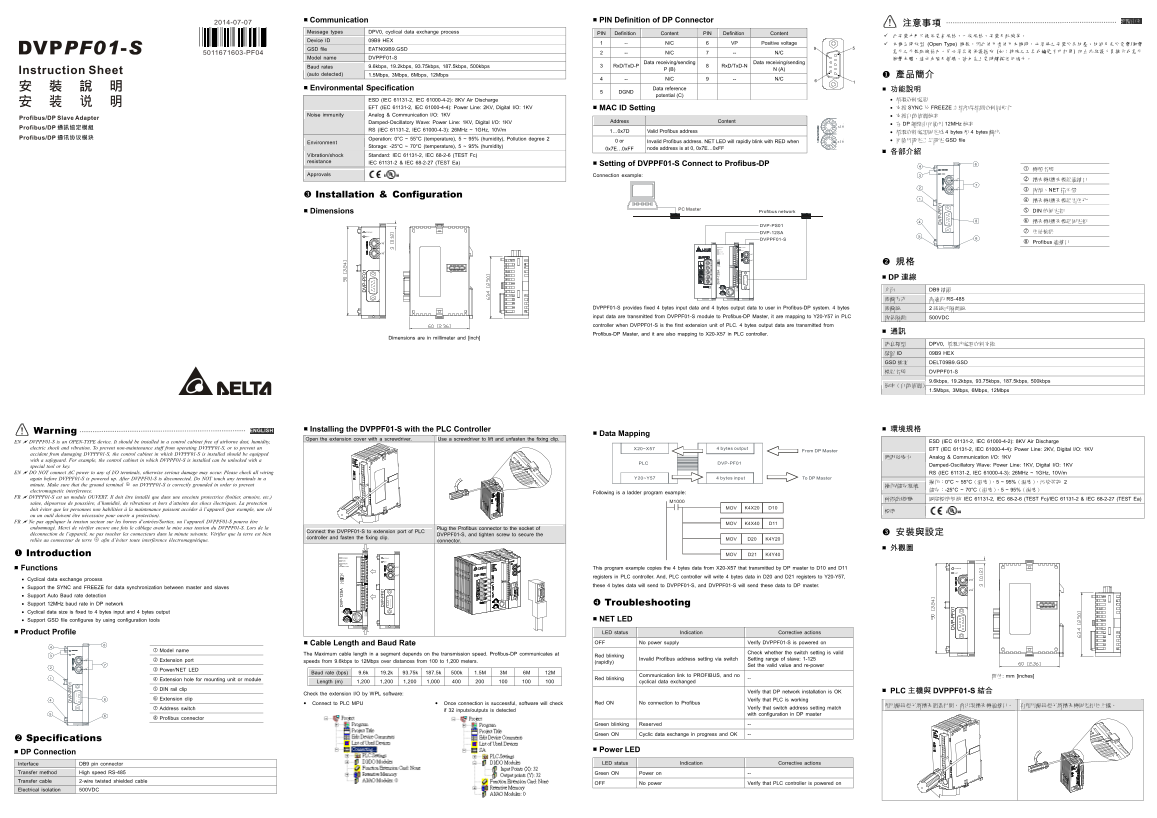

Delta Industrial Automation Industrial Network Solution DVPPF01-S PROFIBUS DP Communication Module Installation Manual
Summary
The DVPPF01-S is an advanced Profibus-DP node designed for reliable, high-speed cyclical data exchange in industrial automation systems. This comprehensive manual serves as a detailed technical guide for system integrators and automation engineers on proper installation and configuration. It covers crucial topics including electrical specifications, DIN rail mounting, wiring diagrams for PLC integration, handling various baud rates (up to 12Mbps), and compliance with stringent environmental standards like ESD, EFT, and EMC protection. Use this resource to successfully map data flows and seamlessly connect your control panel equipment to the Profibus network master.
Manual Details
| Brand | Delta |
|---|---|
| Pages | 2 |
| File Size | 926.33 KB |
| Published | June 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
DVPPF01-S 如何安装以防止非维护人员操作？
由于本设备为开放型机壳，必须在配有安全保护措施的控制柜内安装。例如，应使用特殊工具或钥匙才能打开外壳。
在使用过程中需要注意电源连接的安全事项吗？
切勿在上电时触碰任何端子，并且绝对不能将交流电接入任何I/O端子，否则可能造成严重损坏。
DVPPF01-S 的运行和存储环境有什么限制？
工作环境要求在 0°C ~ 55°C (温度), 5 ~ 95% (湿度)，适用于污染等级 2；存储范围为 -25°C ~ 70°C。
设备支持哪些通信波特率和传输距离？
Profibus-DP 支持的波特率包括 9.6kbps 到 12Mbps，对应的最大周期性数据交换距离分别为 1,200m 或更短。
如果网络灯指示红光快速闪烁，是什么原因？
这表示 Profibus 通讯地址配置无效，应检查并重新设置有效的通讯地址后重启上电。
