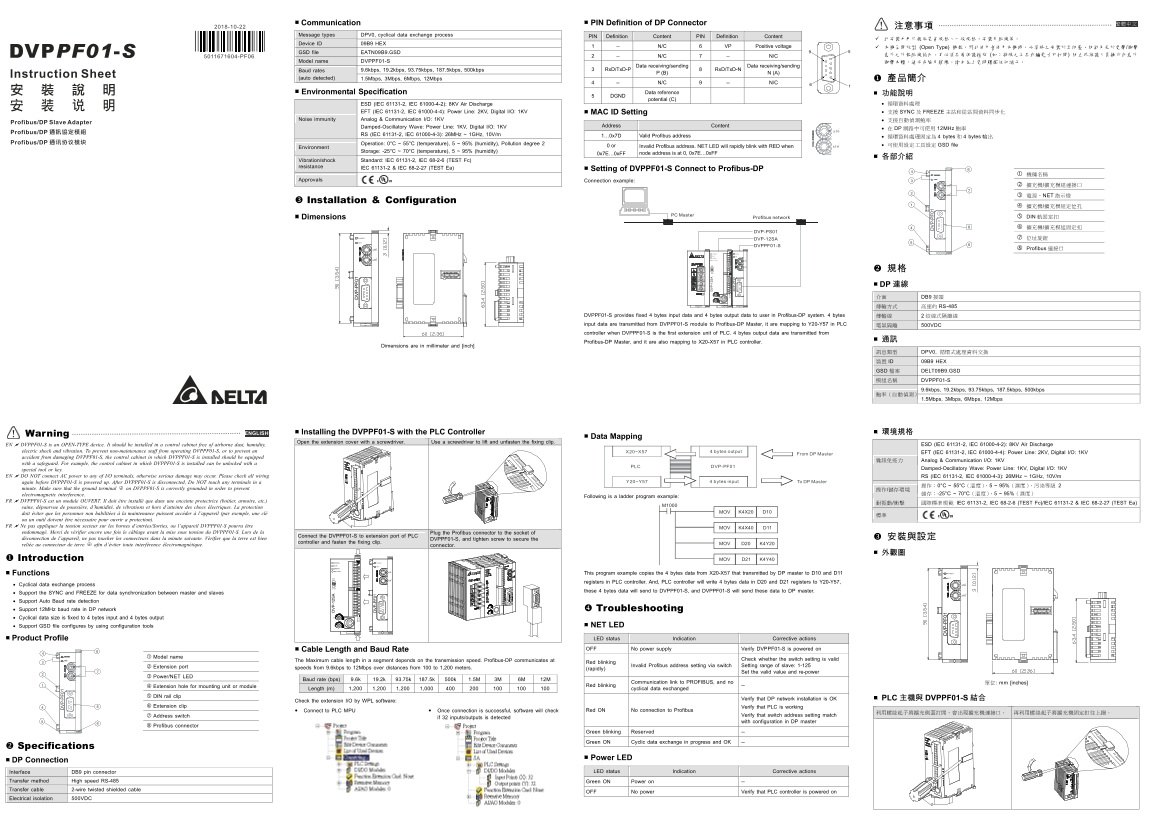

Delta Industrial Automation PLC Programmable Controller DVPPF01-S PROFIBUS-DP Slave Communication Module Installation Manual
Summary
The DVPPF01-S is a high-speed Profibus-DP I/O module designed for cyclic data exchange within industrial automation networks. This manual serves as a comprehensive technical guide for engineers and maintenance technicians, detailing every aspect of the unit’s integration into PLC control systems. It covers physical installation, electrical wiring diagrams (DIN rail mounting), advanced configuration settings—including baud rate and GSD file setup—and crucial data mapping instructions. Ensure seamless network performance with reliable robust communication support across multiple industry standards.
Manual Details
| Brand | Delta |
|---|---|
| Pages | 2 |
| File Size | 1.01 MB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the installation requirement for the DVPPF01-S module?
Since it is an open type device, it must be installed in a control cabinet free of dust, humidity, electric shock, and vibration. Access should require a special tool or key.
How does continuous data exchange work on this module?
The Profibus-DP system provides fixed 4 bytes input data (Y20~Y57) and 4 bytes output data mapping to the PLC's X20~X57 range.
What are the operational temperature and storage limits?
Operation is from 0°C to 55°C, and storage is between -25°C to 70°C.
Is the module protected against electrical surges?
Yes, it has high noise immunity for Analog & Communication I/O (1KV) and supports various ESD (8KV Air Discharge) and EFT protections.
