Delta PLC Programmable Controller DVP04DA-S 4-Channel Analog Output Module Installation Manual

Summary

This analog output module (DVP04DA-S/DVP04DA-S2) is designed to integrate with Delta DVP series PLCs, converting 12-bit digital data into precise 4-point analog signals via customizable voltage or current outputs. The comprehensive manual provides essential guidelines for setup, covering strict installation warnings (e.g., ensuring proper grounding and safeguarding the housing). It further guides technical users through complex configurations, including selecting communication protocols, setting transmission rates (ASCII/RTU), and adjusting the D/A conversion characteristics to meet specific operational needs in industrial automation systems.

📄 Preview ‹ PAGE OF 16 ›

‹

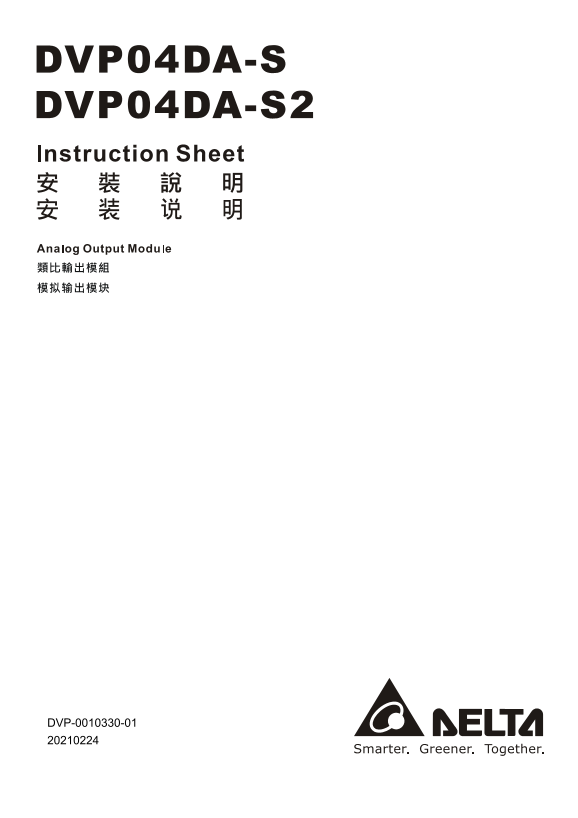

Delta PLC Programmable Controller DVP04DA-S 4-Channel Analog Output Module Installation Manual - Page 1

›

Page 1 Text Content

DVP-0010330-01

Page Summary Contents For Delta PLC Programmable Controller DVP04DA-S 4-Channel Analog Output Module Installation Manual

Page 1 DVP-0010330-01

Page 2 ENGLISH Warning EN  DVP04DA-S/DVP04DA-S2 is an OPEN-TYPE device. It should be installed in a control cabinet free of airborne dust, humidity, electric shock and vibration. To prevent non-maintenance ...

Page 3 DVP04DA-S Arrangement of the terminals Voltage output V+ 0V~+10V I+ V+ CH1 *2 FG AC motor drive, recorder, COM FG I+ proport ioning valve.. Shielded cable*1 Current output V+ CH4 I+ V+ COM I+ AC motor...

Page 4 Digital/Analog (2D/A) module Voltage output Current output If DVP04DA-S/DVP04DA-S2 modules are connected to a PLC, the modules are numbered Connecting to a DVP series PLC from 0 - 7. 0 is the closest ...

Page 5 RS-485 CR# parameters Latched Register name b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0 address Used to set RS-485 communication address. The setting range #31 H’4051 ○ R/W Communication add...

Page 6 ※ DVP04DA-S2 CR#32 communication format settings: for modules with firmware V4.14 or previous versions, b11~b8 data format selection is not available. For ASCII mode, the format is fixed to 7, E, 1 (H...

Page 7  請在使用之前，詳細閱讀本使用說明書。  請勿在上電時觸摸任何端子。實施配線，務必關閉電源。  本機為開放型（OPEN TYPE）機殼，因此使用者使用本機時，必須將之安裝於具防塵、防潮及免於電擊/衝擊意外之外殼配線箱內。另必須具備保護措施（如: 特殊之工具或鑰匙才可打開）防止非維護人員操作或意外衝擊本體，造成危險及損壞。  交流輸入電源不可連接於輸入/出信號端，否則可能造成嚴重的損壞，...

Page 8 ˙DVP04DA-S2 端子配置 V1+ CH1 *2 FG 比例閥... 隔離線*1 FG COM FG CH4電流輸出 V4+ CH4 I4+ V3+ COM I3+ FG 變頻器、記錄器 COM 隔離線*1 FG DC24V 0V DC/DC FG 1：類比輸出請與其他電源線隔離。 2：如果配線受雜訊干擾，造成負載之輸入端漣波太大，請連接 0.1 ~ 0.47μF 25V 之電容。 3：請將...

Page 9 額定最大消耗功率直流 24VDC（20.4VDC ~ 28.8VDC）（-15% ~ +20%），4W，由外部電源供應。儲存：-25°C ~ 70°C（溫度），5 ~ 95%（濕度）國際標準規範 IEC 61131-2，IEC 68-2-6（TEST Fc）/IEC 61131-2 & IEC 68-2-27（TEST  控制暫存器 CR（Control Register） CR ...

Page 10 #31 H’4051 ○ R/W 通訊位址設定設定 RS-485 通訊位址，設定範圍 01 ~ 254。出廠設定值為 K1。通訊速率共有 4,800 / 9,600 / 19,200 bps / 38,400 bps / 57,600 bps / 115,200 bps 六種可使用，資料格式可使用之設定如下： DVP04DA-S ASCII：7,E,1 / 7,O,1 / 8,E,1 / 8,...

Page 11 ※ DVP04DA-S2 CR#32 通訊格式設定說明：韌體版本 V4.14（含）以下，不開放資料格式（b11~b8）選擇，ASCII 固定為 7, E, 1 格式（代碼 H’00xx），RTU 固定為 8, E, 1 格式（代碼 H’C0xx/H’80xx）。韌體版本為 V4.15（含）以上，請參考下表設定，並且請注意原先設定代碼 H’C0xx/H’80xx，被使用於新通訊格式時，模組將會自動...

Page 12 注意事项  请在使用之前，详细阅读本使用说明书。  实施配线，务必关闭电源。  本机为开放型（OPEN TYPE）机壳，因此使用者使用本机时，必须将之安装于具防尘、防潮及免于电击/冲击意外的外壳配线箱内。另必须具备保护措施（如: 特殊的工具或钥匙才可打开）防止非维护人员操作或意外冲击本体，造成危险及损坏。  交流输入电源不可连接于输入/出信号端，否则可能造成严重的损坏，因此请在上电之前...

Page 13 ˙DVP04DA-S2 端子配置 CH1 V1+ V1+ CH1 I1+ 比例閥隔離線*1 FG I2+ COM FG CH4電流輸出 V4+ CH4 I4+ V3+ COM I3+ FG COM 0V DC/DC DC24V 1：模拟输出请与其它电源线隔离。 2：如果配线受噪声干扰，造成负载之输入端涟波太大，请连接 0.1 ~ 0.47μF 25V 之电容。 3：请将电源模块之端及模拟信号输...

Page 14 DVP-PLC 主机串接说明额定最大消耗功率直流 24VDC（20.4VDC ~ 28.8VDC）（-15% ~ +20%），4W，由外部电源供应。存：-25°C ~ 70°C（温度），5 ~ 95%（湿度）国际标准规范 IEC 61131-2，IEC 68-2-6（TEST Fc）/IEC 61131-2 & IEC 68-2-27 （TEST Ea）  控制寄存器 CR CR...

Page 15 CR RS-485 编号参数地保持型寄存器名称 b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0 CR#30：错误状态值请参照错误状态表：错误状态内容值 b15 ~ b8 b7 b6 b5 b4 b3 b2 b1 b0 电源异常 K1（H’1） 0 0 0 0 0 0 0 1 刻度超过 K2（H’2） 0 0 0 0 0 0 1 ...

Page 16 b15 ~ b12 b11 ~ b8 b7 ~ b0 ASCII/RTU H'0 ASCII H'0 7,E,1*1 H'01 4800 bps RTU, H'1 8,E,1 H'02 9600 bps 检查码高低位不交换 H'2 保留 H'04 19200 bps RTU, H'3 8,N,1 H'08 38400 bps 检查码高低位交换 H'4 7,O,1*1 H'10 57600 bps ...
