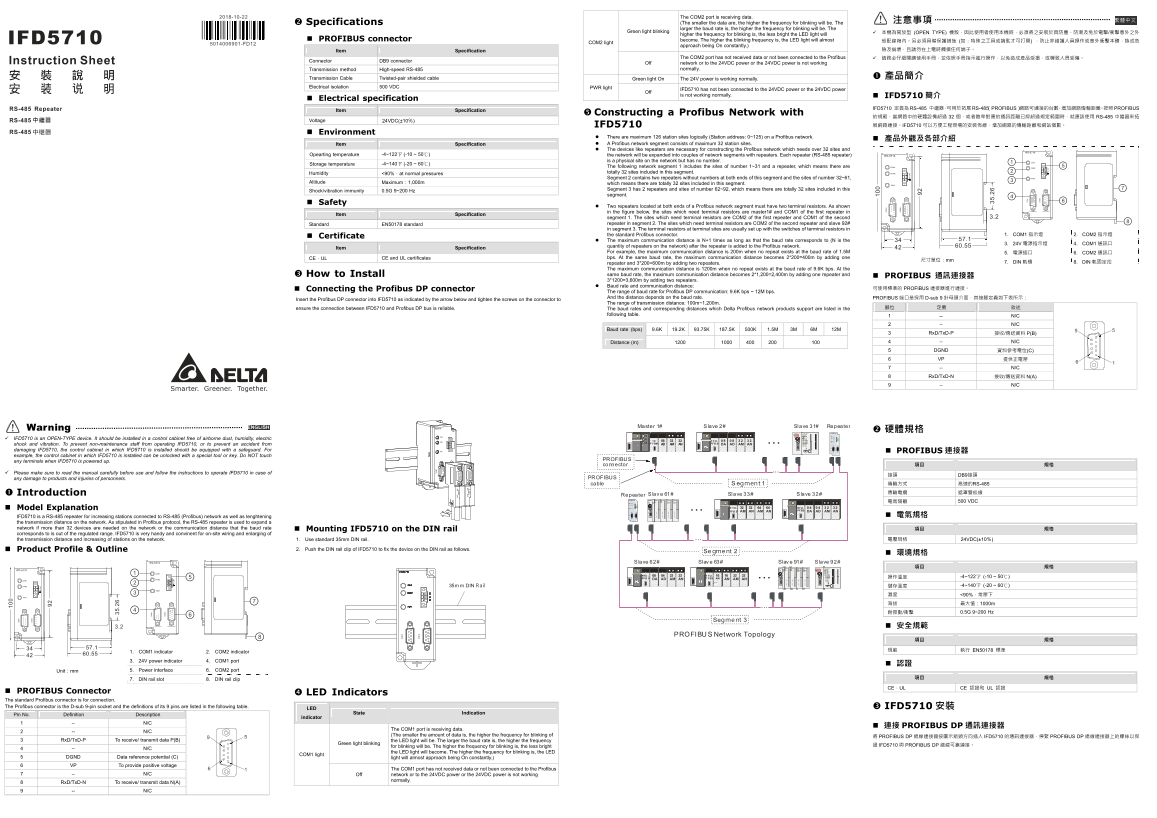

Delta Industrial Automation Network Solution IFD5710 RS-485 Repeater Installation Manual
Summary
The IFD5710 is a professional RS-485 Repeater designed to extend PROFIBUS network capacity and transmission range for industrial automation systems. This manual provides comprehensive technical documentation for engineers and maintenance technicians, detailing proper installation practices, electrical specifications, and detailed connection setup across complex Profibus topologies. Users will learn how to integrate the repeater safely, configure terminal resistors, monitor port statuses, and ensure maximum signal integrity when expanding networks up to 126 stations.
Manual Details
| Brand | Delta |
|---|---|
| Pages | 2 |
| File Size | 1.17 MB |
| Published | June 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
IFD5710如何增加PROFIBUS网络容量和距离？
它可以作为RS-485中继器，用于拓展PROFIBUS網路可連接的台數（最多達126個）和傳輸距離。
Profibus网络的最大通信距离是多少？
最大沟通距离取决于波特率和中继器数量。例如，1.5M bps下无中继器为200m，每增加一个中继器可增加相同速率下的额外通訊距离（N+1倍）。
如果绿灯持续亮着，说明什么问题？
表示连接的Profibus端口收到了数据，并且该设备的24V直流电源正常工作。
PROFIBUS网络段两端必须设置哪些元件以保证安全？
两个中继器（Repeater）位于每一个网络段的两端必须安装终端电阻（Terminal Resistors）。
