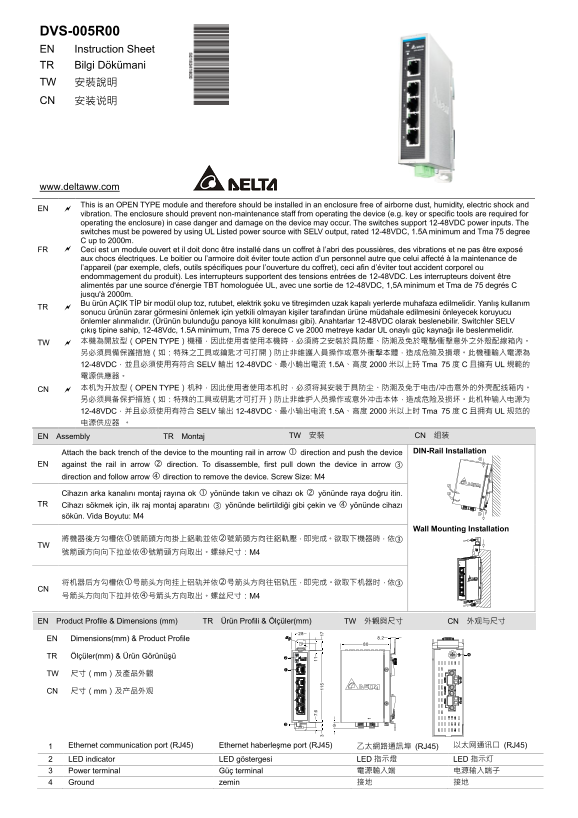

DVS-005R00 EN Instruction Sheet TR Bilgi Dökümani TW 安裝說明 CN 安装说明
www.deltaww.com
This is an OPEN TYPE module and therefore should be installed in an enclosure free of airborne dust, humidity, electric shock and
vibration. The enclosure should prevent non-maintenance staff from operating the device (e.g. key or specific tools are required for operating the enclosure) in case danger and damage on the device may occur. The switches support 12-48VDC power inputs. The switches must be powered by using UL Listed power source with SELV output, rated 12-48VDC, 1.5A minimum and Tma 75 degree C up to 2000m.
FR Ceci est un module ouvert et il doit donc être installé dans un coffret à l’abri des poussières, des vibrations et ne pas être exposé
aux chocs électriques. Le boitier ou l’armoire doit éviter toute action d’un personnel autre que celui affecté à la maintenance de l’appareil (par exemple, clefs, outils spécifiques pour l’ouverture du coffret), ceci afin d’éviter tout accident corporel ou endommagement du produit). Les interrupteurs supportent des tensions entrées de 12-48VDC. Les interrupteurs doivent être alimentés par une source d'énergie TBT homologuée UL, avec une sortie de 12-48VDC, 1,5A minimum et Tma de 75 degrés C jusqu'à 2000m. Bu ürün AÇIK TİP bir modül olup toz, rutubet, elektrik şoku ve titreşimden uzak kapalı yerlerde muhafaza edilmelidir. Yanlış kullanım
sonucu ürünün zarar görmesini önlemek için yetkili olmayan kişiler tarafından ürüne müdahale edilmesini önleyecek koruyucu .6 önlemler alınmalıdır. (Ürünün bulunduğu panoya kilit konulması gibi). Anahtarlar 12-48VDC olarak beslenebilir. Switchler SELV çıkış tipine sahip, 12-48Vdc, 1.5A minimum, Tma 75 derece C ve 2000 metreye kadar UL onaylı güç kaynağı ile beslenmelidir.
TW 本機為開放型（OPEN TYPE）機種，因此使用者使用本機時，必須將之安裝於具防塵、防潮及免於電擊∕衝擊意外之外殼配線箱內。
另必須具備保護措施（如：特殊之工具或鑰匙才可打開）防止非維護人員操作或意外衝擊本體，造成危險及損壞。此機種輸入電源為 12-48VDC，並且必須使用有符合 SELV 輸出 12-48VDC、最小輸出電流 1.5A、高度 米以上時 Tma 75 且擁有 UL 規範的 電源供應器。
CN 本机为开放型（OPEN TYPE）机种，因此使用者使用本机时，必须将其安装于具防尘、防潮及免于电击/冲击意外的外壳配线箱内。
另必须具备保护措施（如：特殊的工具或钥匙才可打开）防止非维护人员操作或意外冲击本体，造成危险及损坏。此机种输入电源为 12-48VDC，并且必须使用有符合 SELV 输出 12-48VDC、最小输出电流 1.5A、高度 米以上时 Tma 75 且拥有 UL 规范的 电源供应器 。
EN Assembly TR Montaj TW 安裝 CN 组装
Attach the back trench of the device to the mounting rail in arrow direction and push the device DIN-Rail Installation
EN against the rail in arrow direction. To disassemble, first pull down the device in arrow ③ direction and follow arrow direction to remove the device. Screw Size: M4
Cihazın arka kanalını montaj rayına ok yönünde takın ve cihazı ok yönünde raya doğru itin. TR Cihazı sökmek için, ilk raj montaj aparatını ③ yönünde belirtildiği gibi çekin ve yönünde cihazı sökün. Vida Boyutu: M4
Wall Mounting Installation
將機器後方勾槽依號箭頭方向掛上鋁軌並依號箭頭方向往鋁軌壓，即完成。欲取下機器時，依③ TW 號箭頭方向向下拉並依號箭頭方向取出。螺絲尺寸：M4
将机器后方勾槽依号箭头方向挂上铝轨并依号箭头方向往铝轨压，即完成。欲取下机器时，依③ CN 号箭头方向向下拉并依号箭头方向取出。螺丝尺寸：M4
EN Product Profile & Dimensions (mm) TR Ü rün Profili & Ö lçüler(mm) TW 外觀與尺寸 CN 外观与尺寸
EN Dimensions(mm) & Product Profile 8.2
TR lçüler(mm) & Ürün Görünüşü
TW 尺寸（mm）及產品外觀
CN 尺寸（mm）及产品外观 1
1 Ethernet communication port (RJ45) Ethernet haberleşme port (RJ45) 乙太網路通訊埠 (RJ45) 以太网通讯口 (RJ45) 2 LED indicator LED göstergesi LED 指示燈 LED 指示灯 3 Power terminal Güç terminal 電源輸入端 电源输入端子 4 Ground zemin 接地 接地
